New Age FB 2, FB 10 and FB 20 Self Inducting Foam Branch Pipes
Low expansion foam branch pipes that draw in foam concentrate themselves at a fixed 3% or 6% through a pick-up tube, in aluminium or stainless steel, straight or dome pattern.

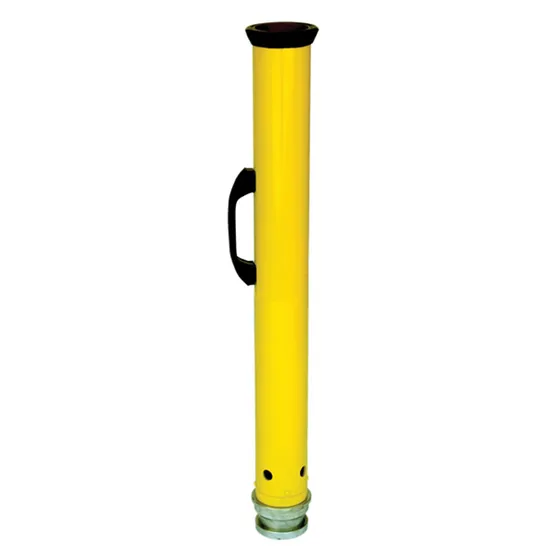

Supplier for New AgeNew Age FB 2X, FB 10X and FB 20X Premix Foam Branch Pipes
Standard low expansion foam branch pipes without built in induction, for use with premix foam solution, in aluminium or stainless steel.
- For premix foam solution, no built in induction or pick-up tube
- Low expansion foam, ratio 1:2 to 1:12
- Works with all types of foam
- Inlets: BS 336, BSP threads, GOST, Storz or American rocker lug
- Control valve optional; straight or dome pattern
Standards and approvals: BS 336
Specifications
Specifications
| Specification | FE-FB-2X FE-FB-10X FE-FB-20X |
|---|---|
| Item Code | FE-FB-2X FE-FB-10X FE-FB-20X |
| Description | Without In-Built Foam Inductor |
| Flow @ 7 bar | 225 LPM 450 LPM 900 LPM |
| Material of Construction | Aluminum Stainless Steel |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
