New Age FB 2, FB 10 and FB 20 Self Inducting Foam Branch Pipes
Low expansion foam branch pipes that draw in foam concentrate themselves at a fixed 3% or 6% through a pick-up tube, in aluminium or stainless steel, straight or dome pattern.

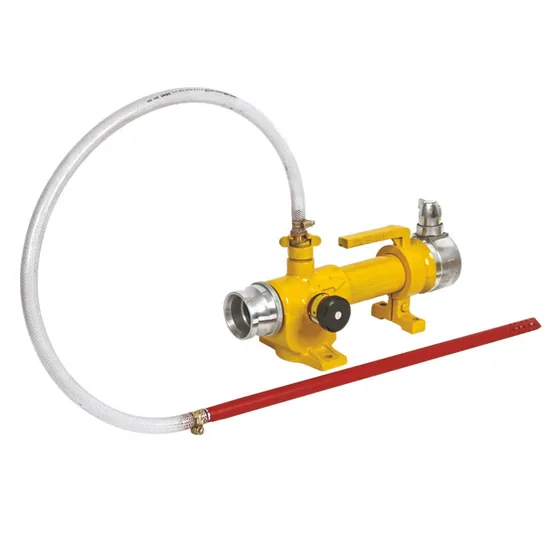

Supplier for New AgeNew Age Variable Inline Foam Inductor
Light, portable inline inductor with an adjustable induction rate from 0% to 6%, a non return valve on the foam inlet and a pick-up tube.
- Induction adjustable from 0% to 6%
- Built in non return valve on the foam inlet
- Foam concentrate drawn through a pick-up tube
- Light and portable
- Aluminium alloy, gunmetal or stainless steel; isolation valve optional
Specifications
Specifications
| Specification | FE-VID |
|---|---|
| Item Code | FE-VID |
| Flow at 7 bar | 225 LPM 450 LPM |
| Material of Construciton | Aluminum Alloy Gunmetal Stainless Steel |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
More New Age Foam Equipment
New Age FB 2X, FB 10X and FB 20X Premix Foam Branch Pipes
Standard low expansion foam branch pipes without built in induction, for use with premix foam solution, in aluminium or stainless steel.
New Age FB 5X Foam Branch Pipe with Built In Inductor
Low expansion foam branch pipe for 225 LPM at 7 bar, with a built in inductor, a proportioning valve from 0 to 6% and a shut off valve.
New Age Fixed Inline Foam Inductor
Inline foam inductor for fixed installations, inducting 3% to 6%, in carbon steel with anti corrosive coating or in stainless steel, in sizes 2 inch to 8 inch.
New Age UL Listed Inline Foam Inductor, Stainless Steel
UL Listed inline foam inductor in stainless steel 304, 316 or 316L, with a 3% or 6% induction rate and a pressure range of 80 psi to 200 psi.
New Age Inline Foam Generator
A development of the inline inductor that inducts foam at 3% or 6% and also carries the foam a long distance, about 60 m, with BS instantaneous couplings.
Foam Proportioners and Foam Equipment from other brands
Tyco
Tyco Model B-1 Foam-Water Sprinkler, Upright and Pendent, K3.0 (TFP840)
An air aspirating foam discharge outlet for foam-water deluge systems, in upright and pendent versions.
HD Fire
HD Fire Atmospheric Foam Concentrate Storage Tank
A horizontal, custom fabricated tank that stores foam concentrate for inline inductors and balanced pressure proportioning systems. It is built in stainless steel 304 or 316, or in carbon steel with FRP lining.
HD Fire
HD Fire Foam Bladder Tank Proportioning System
A pressure rated tank with a nylon reinforced Buna-N rubber bladder and a proportioner pre-piped on to it, used widely in low expansion foam systems. It can be supplied UL Listed, FM Approved or CE marked when specified.
