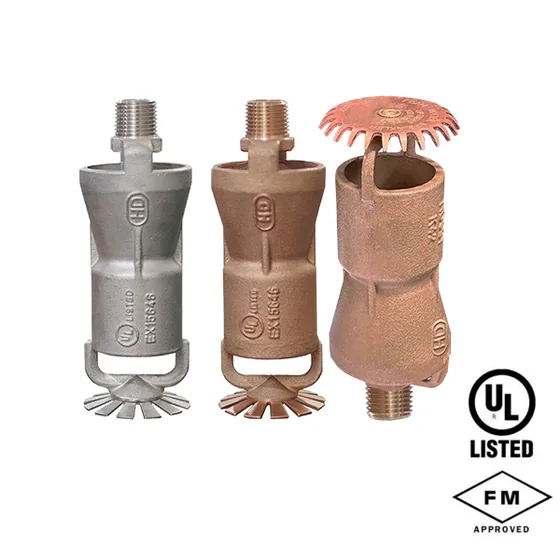

Dealer for HD FireOpen, air aspirating foam-water nozzles for NFPA 16 and NFPA 11 foam-water sprinkler systems that discharge foam from overhead and then water in a spray pattern like a standard sprinkler. The pendent model is UL Listed and FM Approved and the upright model is UL Listed.
Standards and approvals: UL Listed, FM Approved, NFPA 16/11
Sizes: 1/2″ BSPT / NPT
| Specification | 1/2″ BSPT / NPT |
|---|---|
| Finish | Natural Bronze or Stainless Steel |
| Size | 1/2″ BSPT / NPT |
| Effective working pressure | 2.1 bar to 4.2 bar (30 to 60 PSI) |
| Pendent | UL Listed and FM Approved |
| Upright | UL Listed |
| MODEL | F1- Stainless Steel, Pendent H - Bronze, Pendent H1- Bronze, Upright |
| MOUNTING | Pendent or Upright |
| MAXIMUM WORKING PRESSURE | 12 bar (175 psi) |
| RECOMMENDED OPERATING PRESSURE | 2.1 bar (30 psi) minimum 4.2 bar (60 psi) maximum |
| END CONNECTION | 1/2" BSPT (1/2” NPT Optional) |
| K-FACTOR | Km-42 Standard (K-2.95) Other K-factors can be provided as optional without Listing & Approvals |
| APPROVAL | UL Listed & FM Approved (Refer Table-I) |
| FINISH | Natural finish |
| WEIGHT | 0.465 kg (Approximate) |
| ORDERING INFORMATION | Please specify : Model, End connection |
| SIN NUMBER | HD331 |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
Sizes: 60 NB
A hand held foam branch pipe in aluminium, designed for long range performance, with a 2.5 inch male instantaneous coupling at the inlet. Models BP225 and BP450 are UL Listed and FM Approved.
A Type II foam discharge device under NFPA 11 that lays low expansion foam directly onto the surface of a flammable or combustible liquid. It is used on vertical fixed cone roof tanks and is UL Listed and FM Approved.
Sizes: 50 & 65 NB ( 2” & 2.5” )
An air aspirating foam discharge device for floating roof flammable liquid storage tanks, which NFPA 11 defines as a Type II outlet delivering low expansion aspirated foam to the seal. It is also used for diked storage and spill areas.
Foam pourers that work with HD foam makers to deliver foam onto the protected surface, offered in 50, 65 and 80 NB (2, 2.5 and 3 inch) sizes with a choice of pourer types.
Sizes: 65 NB
A foam pourer that discharges fully aspirated foam into the annular seal area of floating roof storage tanks, for fire or vapour suppression. Its design shields the foam from wind so it runs gently onto the seal, and it is UL Listed and FM Approved.
An air aspirating foam discharge outlet for foam-water deluge systems, in upright and pendent versions.
Low expansion foam branch pipes that draw in foam concentrate themselves at a fixed 3% or 6% through a pick-up tube, in aluminium or stainless steel, straight or dome pattern.
Standard low expansion foam branch pipes without built in induction, for use with premix foam solution, in aluminium or stainless steel.
