New Age FB 2, FB 10 and FB 20 Self Inducting Foam Branch Pipes
Low expansion foam branch pipes that draw in foam concentrate themselves at a fixed 3% or 6% through a pick-up tube, in aluminium or stainless steel, straight or dome pattern.

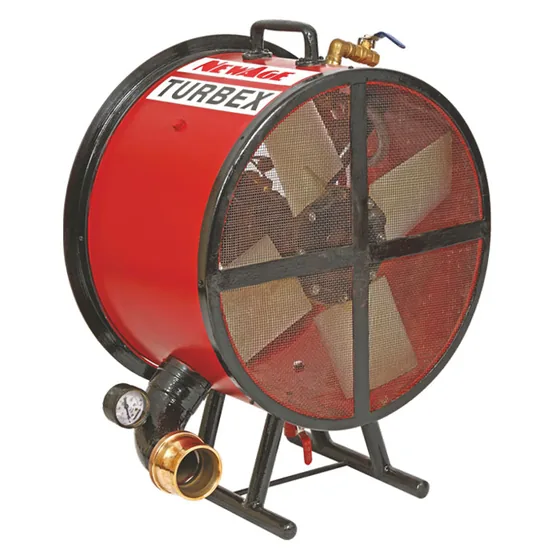

Supplier for New AgeNew Age Hi-Ex Mini Turbex High Expansion Foam Generator
Compact, lightweight high expansion foam generator driven by a pelton wheel turbine, for single handed use, supplied as a set with an inline inductor.
- Foam expansion ratio 1:200 to 1:350
- Pelton wheel turbine drive
- Stainless steel or FRP casing, corrosion proof
- Set with inline inductor, 3% or 6%
- Nylon expansion net supplied; can work as a foam extractor with optional ducting
Specifications
Specifications
| Specification | FE-MINI |
|---|---|
| Item Code | FE-MINI |
| Flow at 7 bar | 245 LPM |
| Foam Produced | 2825 cubic ft/min |
| Smoke Extracted | 3460 cubic ft/min |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
More New Age Foam Equipment
New Age FB 2X, FB 10X and FB 20X Premix Foam Branch Pipes
Standard low expansion foam branch pipes without built in induction, for use with premix foam solution, in aluminium or stainless steel.
New Age FB 5X Foam Branch Pipe with Built In Inductor
Low expansion foam branch pipe for 225 LPM at 7 bar, with a built in inductor, a proportioning valve from 0 to 6% and a shut off valve.
New Age Fixed Inline Foam Inductor
Inline foam inductor for fixed installations, inducting 3% to 6%, in carbon steel with anti corrosive coating or in stainless steel, in sizes 2 inch to 8 inch.
New Age Variable Inline Foam Inductor
Light, portable inline inductor with an adjustable induction rate from 0% to 6%, a non return valve on the foam inlet and a pick-up tube.
New Age UL Listed Inline Foam Inductor, Stainless Steel
UL Listed inline foam inductor in stainless steel 304, 316 or 316L, with a 3% or 6% induction rate and a pressure range of 80 psi to 200 psi.
Foam Proportioners and Foam Equipment from other brands
Tyco
Tyco Model B-1 Foam-Water Sprinkler, Upright and Pendent, K3.0 (TFP840)
An air aspirating foam discharge outlet for foam-water deluge systems, in upright and pendent versions.
HD Fire
HD Fire Atmospheric Foam Concentrate Storage Tank
A horizontal, custom fabricated tank that stores foam concentrate for inline inductors and balanced pressure proportioning systems. It is built in stainless steel 304 or 316, or in carbon steel with FRP lining.
HD Fire
HD Fire Foam Bladder Tank Proportioning System
A pressure rated tank with a nylon reinforced Buna-N rubber bladder and a proportioner pre-piped on to it, used widely in low expansion foam systems. It can be supplied UL Listed, FM Approved or CE marked when specified.
