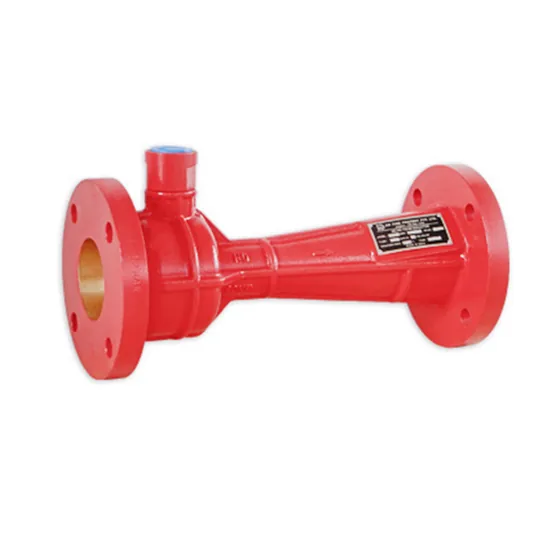

Dealer for HD FireAn inductor that draws foam concentrate into the water stream and supplies foam solution to the foam making equipment, meant mainly for fixed foam installations with constant flow. Each unit is calibrated and factory tested for flow and induction rate at maximum back pressure.
| Specification | Details |
|---|---|
| MODEL | IG - Bronze material IS - Stainless Steel material |
| OPERATING PRESSURE | 6.5 to 12 bar (93 - 175 psi) |
| FACTORY HYDROSTATIC TEST PRESSURE | 25 bar (365 psi) |
| SUITABLE FOAM | 3 % AFFF or 3% x 3% AR-AFFF |
| MAXIMUM BACK PRESSURE | 65% of Inlet Pressure |
| FLANGE CONNECTION | ANSI B16.5 Class 150# FF Standard supply. (Contact HD Sales for other options.) |
| NOMINAL SIZE | 65, 80, 100 & 150 mm |
| FINISH | Red RAL 3001 |
| ORDERING INFORMATION | 1) Inductor Inlet Pressure 2) Foam solution flow required 3) Maximum suction lift 4) Flange connection |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
A horizontal, custom fabricated tank that stores foam concentrate for inline inductors and balanced pressure proportioning systems. It is built in stainless steel 304 or 316, or in carbon steel with FRP lining.
A pressure rated tank with a nylon reinforced Buna-N rubber bladder and a proportioner pre-piped on to it, used widely in low expansion foam systems. It can be supplied UL Listed, FM Approved or CE marked when specified.
One vertical or horizontal bladder tank acts as the central foam concentrate store for several proportioning lines, each running to its own hazard zone. Each line works as an independent proportioning system with its own foam concentrate control valve.
Two bladder tanks mounted on one skid, the first as the operating tank and the second as a standby reserve. Available as vertical or horizontal units.
A foam bladder tank supplied with the proportioner and a deluge valve already piped on to it. The bladder tank, proportioner and deluge valve are UL Listed.
Sizes: 40 & 50 mm (1.5″ & 2″ )
A by-pass valve for balanced pressure foam pump skids that sends the controlled excess of foam concentrate back to the storage tank. Offered in bronze or stainless steel in 40 and 50 mm sizes.
An air aspirating foam discharge outlet for foam-water deluge systems, in upright and pendent versions.
Low expansion foam branch pipes that draw in foam concentrate themselves at a fixed 3% or 6% through a pick-up tube, in aluminium or stainless steel, straight or dome pattern.
Standard low expansion foam branch pipes without built in induction, for use with premix foam solution, in aluminium or stainless steel.
