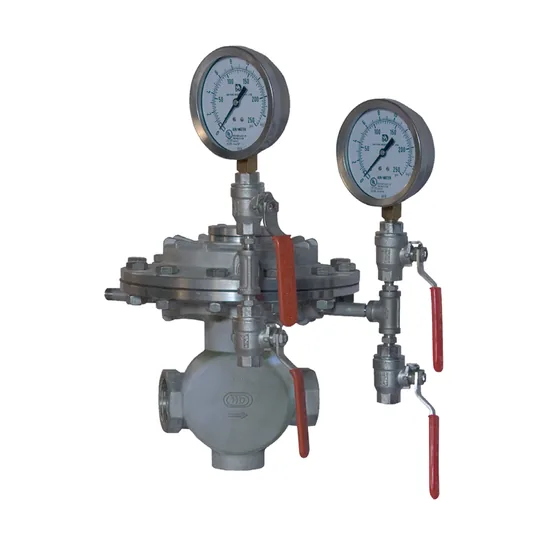

Dealer for HD FireA by-pass valve for balanced pressure foam pump skids that sends the controlled excess of foam concentrate back to the storage tank. Offered in bronze or stainless steel in 40 and 50 mm sizes.
Sizes: 40 & 50 mm (1.5″ & 2″ )
| Specification | 40 & 50 mm (1.5″ & 2″ ) |
|---|---|
| MODEL | BV with Bronze material IS-318 / ASTM B62 BV-S with stainless steel material SS 316 (ASTM A 351-CF8M) |
| SIZE | 40 & 50 NB (1.5 & 2 inch) |
| MAXIMUM SERVICE PRESSURE | 14 bar (200 psi) |
| END CONNECTION | Screwed Female BSPT (NPT Optional) |
| FRICTION LOSS IN TERMS OF EQUIVALENT LENGTH OF PIPE (C-120) | 50 NB - 14.1 Meters 40 NB - 10.5 Meters |
| FACTORY HYDROSTATIC TEST PRESSURE | 25 bar (365 psi) |
| FINISH | Red epoxy painted |
| ORDERING INFORMATION | Specify 1) Size 2) End connection |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
