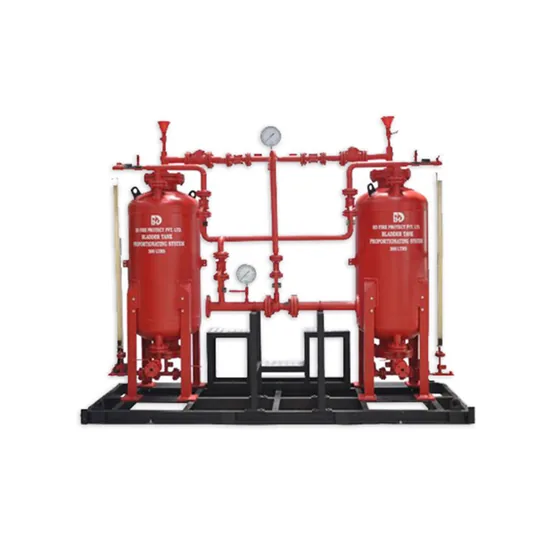

Dealer for HD FireTwo bladder tanks mounted on one skid, the first as the operating tank and the second as a standby reserve. Available as vertical or horizontal units.
Standards and approvals: ASME Code Section VIII Div I, ASME U Stamp
HD Fire has not published a specification table for this model. Ask us for the data sheet.
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
A horizontal, custom fabricated tank that stores foam concentrate for inline inductors and balanced pressure proportioning systems. It is built in stainless steel 304 or 316, or in carbon steel with FRP lining.
A pressure rated tank with a nylon reinforced Buna-N rubber bladder and a proportioner pre-piped on to it, used widely in low expansion foam systems. It can be supplied UL Listed, FM Approved or CE marked when specified.
One vertical or horizontal bladder tank acts as the central foam concentrate store for several proportioning lines, each running to its own hazard zone. Each line works as an independent proportioning system with its own foam concentrate control valve.
A foam bladder tank supplied with the proportioner and a deluge valve already piped on to it. The bladder tank, proportioner and deluge valve are UL Listed.
Sizes: 40 & 50 mm (1.5″ & 2″ )
A by-pass valve for balanced pressure foam pump skids that sends the controlled excess of foam concentrate back to the storage tank. Offered in bronze or stainless steel in 40 and 50 mm sizes.
A hydraulically controlled stainless steel valve for bladder tank and inline balanced pressure systems that opens by itself once water supply is established. Model CV is FM Approved as part of HD's foam bladder tank proportioning system.
An air aspirating foam discharge outlet for foam-water deluge systems, in upright and pendent versions.
Low expansion foam branch pipes that draw in foam concentrate themselves at a fixed 3% or 6% through a pick-up tube, in aluminium or stainless steel, straight or dome pattern.
Standard low expansion foam branch pipes without built in induction, for use with premix foam solution, in aluminium or stainless steel.
