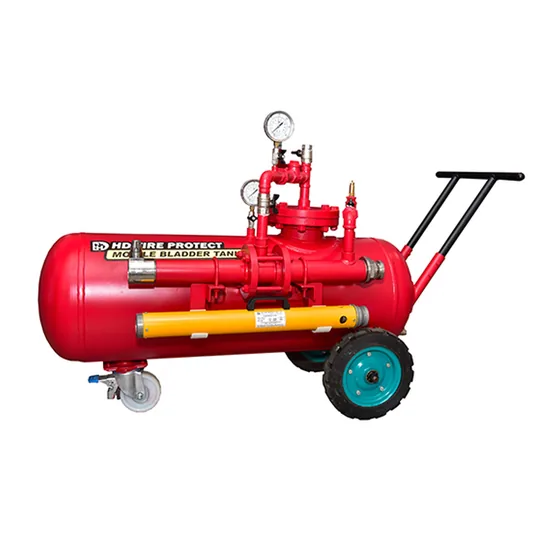

Dealer for HD FireA self-contained, wheeled foam bladder tank unit for rapid foam attack in high risk places such as loading terminals, oil storage areas, boiler rooms and engine compartments. It needs little effort to move.
Standards and approvals: FM Approved
| Specification | Details | VIKRANT |
|---|---|---|
| Service Pressure | Maximum 3 to 14 bar (44 to 200 psi) | |
| MODEL | VIKRANT | |
| FOAM CONCENTRATE STORAGE CAPACITY | 120 litres 150 litres 180 litres | |
| WORKING PRESSURE | Maximum 12 bar (200 psi) Minimum 4.1 bar (60 psi) | |
| PROPORTIONER | Wafer type, Model RCW-S Size: 65 NB (2.5”) Stainless Steel CIF8 (SS304) is standard supply, CIF8M (SS316) optional supply Flow: 100 to 1590 lpm with 3% AFFF & 165 to 528 lpm with AR-AFFF 3x3% Refer Product Catalogue No. HD 263 | |
| BRANCH PIPE | Model BP , Aluminium, Air Aspirating type Flow: 225 lpm standard supply 450 lpm optional supply Refer Product Catalogue No. HD196 for branch pipe. Non-air aspirating nozzle with ball shut-off valve is optional. | |
| TANK | Steel tank fabricated as per ASME Code | |
| DIAPHRAGM | Buna-N Rubber | |
| PROPORTIONER INLET & OUTLET | 2.5” BS instantaneous coupling standard supply | |
| WHEELS | Steel with solid rubber | |
| HOSE | Optional supply: 2.5” x 15 meters long with 2.5” instantaneous coupling or 1½” NH or NPSH coupling | |
| FINISH | Epoxy Red Paint |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
A self-contained foam cart on two solid rubber wheels that one person can move, with an inductor and branch pipe for quick foam application. The tank is fibreglass on MF-A or stainless steel on MF-S.
A rugged two wheel trailer carrying a 3, 4 or 6 inch monitor with its water supply manifold, moved by two people or towed behind a light truck or jeep. Water comes from the hydrant network through a coupling at the rear.
A 2 or 4 wheel trailer with a storage tank and a monitor mounted on the tank, which two people can move or a light truck or jeep can tow. The monitor can be manual or remote controlled and is UL Listed or FM Approved.
A hand moved trolley on two solid rubber wheels that carries a 2.5 or 3 inch monitor, fed through a water supply manifold with instantaneous couplings.
An air aspirating foam discharge outlet for foam-water deluge systems, in upright and pendent versions.
Low expansion foam branch pipes that draw in foam concentrate themselves at a fixed 3% or 6% through a pick-up tube, in aluminium or stainless steel, straight or dome pattern.
Standard low expansion foam branch pipes without built in induction, for use with premix foam solution, in aluminium or stainless steel.
