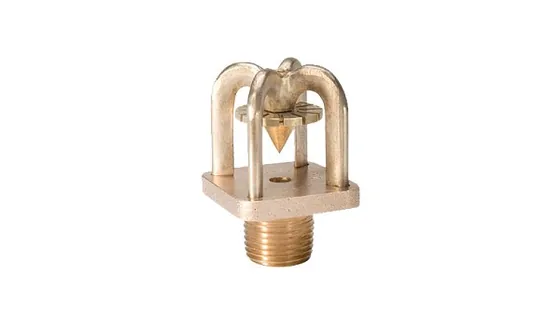

Supplier for TycoAn open external deflector nozzle for water spray fixed systems with a four arm body that helps protect it from mechanical damage.
Standards and approvals: UL and C-UL Listed
| Specification | Details | Details |
|---|---|---|
| Maximum Working Pressure | 175 psi (12,1 bar) Also refer to Figure 2, Note 2 | |
| Discharge Coefficient | Refer to Table A | |
| Spray Angles | Refer to Table B | |
| Material | and Finish Refer to Table E | |
| Thread Connection | 1/2 inch NPT | |
| Frame | Bronze | |
| Deflector | Bronze | |
| Splitter | Bronze | |
| Pin | Bronze |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
