Water spray nozzles sit on a fixed water spray or deluge system and throw a set cone, curtain or sheet of water onto transformers, tanks, vessels, conveyors and openings, to cool them or to control and put out a fire. FPS supplies medium velocity, high velocity, water curtain, tank cooling and special application nozzles from Tyco, HD Fire, New Age, Aaag and Balaji Fire Safety in Bhopal and across Madhya Pradesh.

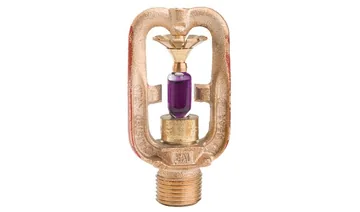

An automatic directional spray nozzle with a frangible bulb for water spray fixed systems, discharging a filled cone of medium velocity droplets once the bulb operates.

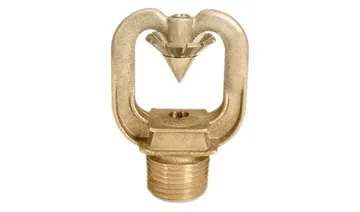

An open (non-automatic) external deflector nozzle for water spray fixed systems, discharging a filled cone of medium velocity water droplets.

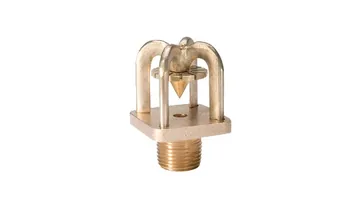

An open external deflector nozzle for water spray fixed systems with a four arm body that helps protect it from mechanical damage.

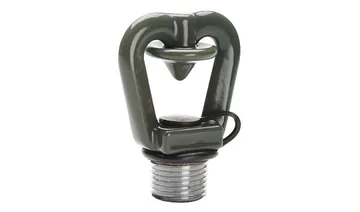

Open external deflector nozzles for water spray fixed systems that discharge a filled cone of medium velocity droplets, offered in several materials of construction.

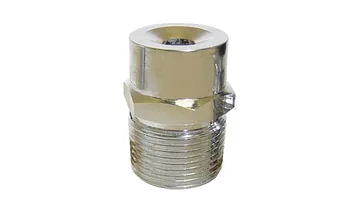

Open internal scroll nozzles that discharge a filled cone of relatively high velocity water droplets, mainly for extinguishing and controlling fires in special hazards, and also usable for exposure protection.
The strainer versions of the Mulsifyre open, internal scroll nozzle, for water spray fixed systems where high velocity water is needed for special hazards.

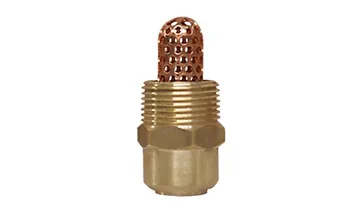

Open high velocity nozzles with an individual inlet strainer, for water spray systems protecting flammable liquids and fixed hazards such as transformers.

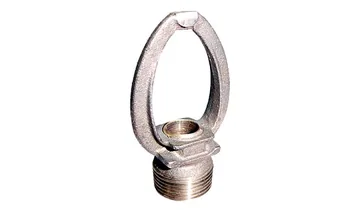

Nozzles for open head water spray deluge systems in crossflow cooling towers with combustible fill sections, giving a narrow, elongated spray between the joist channels.

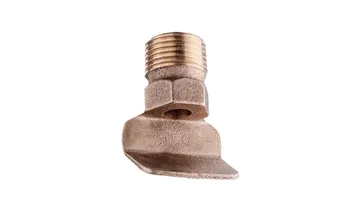

Sprinklers that spray water on window glazing on the outside of a building, at set spacings, to protect it from exposure fires.
An open nozzle for tunnel deluge systems whose wide horizontal coverage lets a single pipe run the length of a tunnel instead of several.

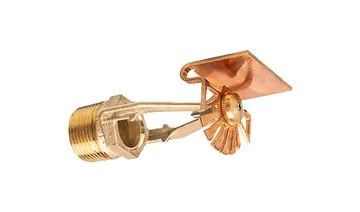

An open nozzle for tunnel deluge systems whose extended horizontal coverage lets a single pipe run the length of a tunnel instead of several.

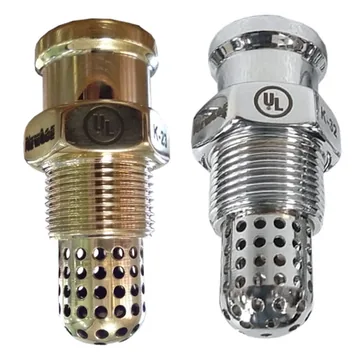

A non-automatic, open orifice directional spray nozzle for fixed water spray systems that need high velocity water, such as transformer, circuit breaker, oil-fired boiler and lube oil protection. It is UL Listed.

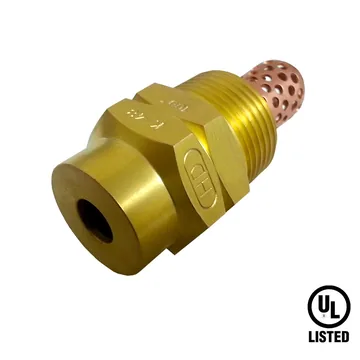

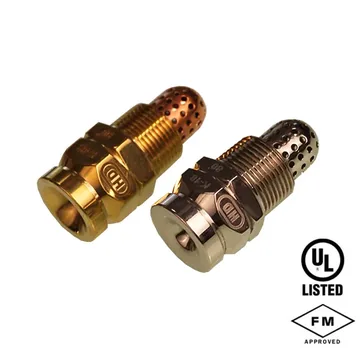

A non-automatic, open orifice directional spray nozzle with a ¾ inch connection, for high velocity water application on flammable liquid and electrical transformer hazards. It is UL Listed and FM Approved.
Sizes: 65, 80 or 100 mm
A large stainless steel nozzle with a flanged end that throws a flat curtain of water upward, used to separate one area from another with a wall of water.
Sizes: 1/2″ BSPT or NPT

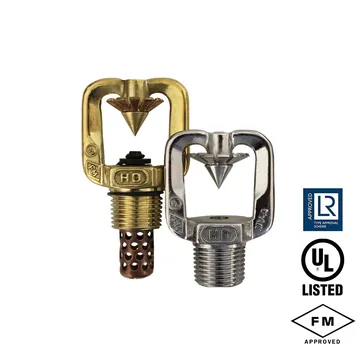

An open orifice directional nozzle for deluge water spray systems that gives a uniformly filled solid cone of medium velocity droplets for cooling and extinguishing. It is UL Listed, FM Approved and Lloyd's Register Type Approved.
Sizes: 1/2″ BSPT / NPT

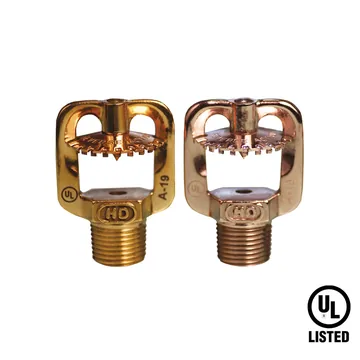

A medium velocity open nozzle for deluge water spray systems whose external deflector throws a solid cone of water in the opposite direction to the water inlet. It is UL Listed.
Sizes: 65, 80 or 100 mm

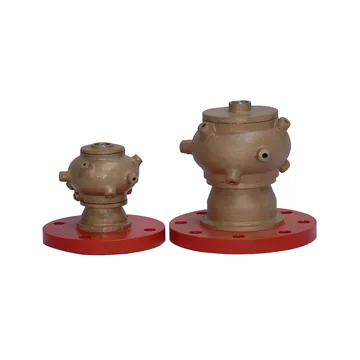

A cast bronze nozzle with stainless steel ball bearings that rotates under water pressure, used mainly to protect the tops of fixed roof storage tanks. It starts turning at 2 bar and covers about 10 metres in diameter at that pressure.
Sizes: 1/2″ BSPT / NPT

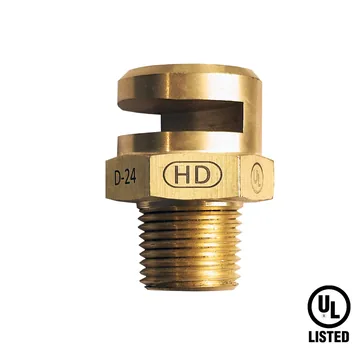

A non-automatic open spray nozzle for fixed water spray systems protecting fuel storage tanks. Mounted upright at a distance from the tank wall, it keeps the tank from absorbing heat radiation when there is a fire nearby, and it is UL Listed.
Sizes: 1/2″ BSPT/NPT

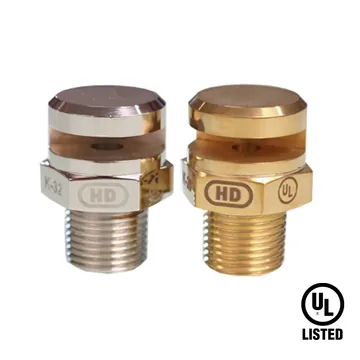

Non-automatic open outside sprinklers that protect windows, walls, steel beams, columns and roofs from exposure fire. Installed with the orifice slot pointing down, the spray absorbs and reflects heat radiation, and the nozzle is UL Listed.
UL Listed high velocity spray nozzle whose internal vane produces a narrow, solid cone spray with even droplets, for exposure protection and fuel fires.
UL Listed directional spray nozzle with a cone shaped pattern for even coverage, offered in a wide range of K-factors and spray angles, with an SS316 option.
A brass high velocity spray nozzle for deluge protection of special hazards, used to cool surfaces and to extinguish fires, working up to 12 bar.

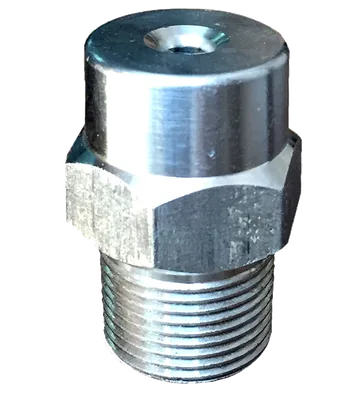

The stainless steel version of Aaag's high velocity spray nozzle for deluge protection of transformers, switchgear and similar hazards, working up to 12 bar.
An open, directional brass spray nozzle for water spray systems that protect equipment from fire exposure, working up to 10 bar.

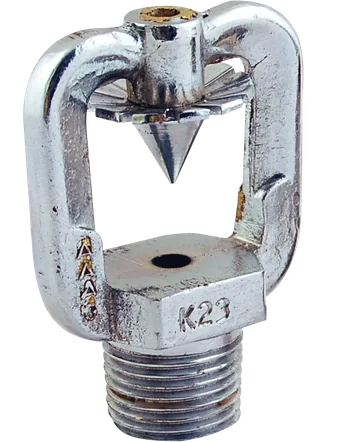

The stainless steel version of Aaag's open, directional medium velocity spray nozzle for exposure protection, working up to 10 bar.
A brass nozzle that spreads water in a flat, semicircular curtain, used as a window spray nozzle when pendent or to separate the fire area when mounted horizontally.
The stainless steel water curtain nozzle, giving a flat, semicircular curtain for window protection or for separating the area on fire.
A brass medium velocity spray nozzle with a ½ inch thread for water spray systems, listed at 6 bar and supplied 12 pieces to a box.

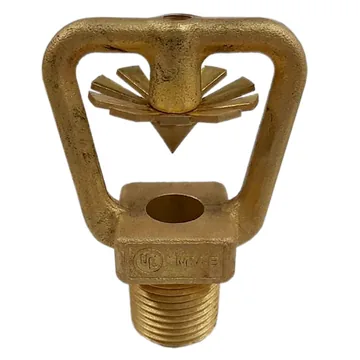

Open medium velocity nozzles for water spray protection of vessels and structures holding highly flammable liquids, gases and solids with flash points of 66°C (150°F) and below.
Start with the hazard. Medium velocity nozzles give a filled cone of fine droplets for exposure protection: they cool tank shells, vessels, structural steel and equipment so these do not absorb too much heat from a nearby fire, and with a higher design density they can also control a fire. High velocity nozzles give a narrower, solid cone of fast droplets for extinguishing fires in special hazards such as oil filled transformers, switchgear, circuit breakers, lube oil systems and oil fired boilers. Tyco, HD Fire, New Age and Aaag list both kinds, and Balaji Fire Safety lists a ½ inch brass medium velocity nozzle.
Then size the nozzle. The K factor sets how much water flows at a given pressure and the spray angle sets how wide the cone spreads, so both come from the system design and the distance to the surface. Aaag medium velocity nozzles run from K 22 to 102 metric with angles of 60° to 120°, the HD Fire MV from K 18 to 102 metric with angles of 65° to 160°, and Tyco and New Age list a wide range of K factors or orifice sizes and spray angles. Most medium velocity nozzles take a ½ inch BSPT or NPT connection, while high velocity nozzles use ½ inch (Aaag), ¾ inch (HD Fire, Tyco Mulsifyre) or 1 inch (HD Fire) connections. Check the working pressure too: 10 bar on Aaag medium velocity and curtain nozzles, 12 bar on Aaag high velocity nozzles, a maximum of 175 psi on most Tyco nozzles and up to 17 bar on the New Age high velocity nozzle.
For openings, tanks and special areas, choose by pattern. Water curtain nozzles spread a flat sheet of water: the Aaag curtain nozzle works as a window spray when pendent or as a fire separation curtain when horizontal, HD Fire CN and CNS nozzles protect windows, walls, beams and roofs, the flanged HD Fire Jumbo JCS throws a curtain upward to segregate areas, and Tyco Issue A and B sprinklers cover window glazing. For storage tanks there are HD Fire TS and TSS tank cooling nozzles, the HD Fire revolving nozzle for fixed roof tank tops, and Tyco MV-R reverse action and MV-T tank top nozzles. Tyco also lists TN-17 and TN-25 tunnel nozzles and Type 1 and Type 2 nozzles for crossflow cooling towers.
Finally choose material and approval. Brass suits most installations, while stainless steel (Aaag, HD Fire, New Age, Tyco), aluminium bronze (HD Fire MV-E) and titanium or 254 SMO (Tyco MV) suit corrosive and chemical plant atmospheres. Most HD Fire nozzles are UL Listed, with FM approval on the ¾ inch high velocity and MV nozzles and Lloyd's Register type approval on the MV; New Age nozzles are UL Listed; and Tyco lists UL, C-UL, ULC or FM approval by model. Aaag and Balaji Fire Safety nozzles are listed without approval details, so FPS confirms them on enquiry. Outdoors, blow-off caps or plugs (HD Fire, Tyco) and strainers (Tyco HV and Mulsifyre strainer models) keep insects and debris out of small orifices.
