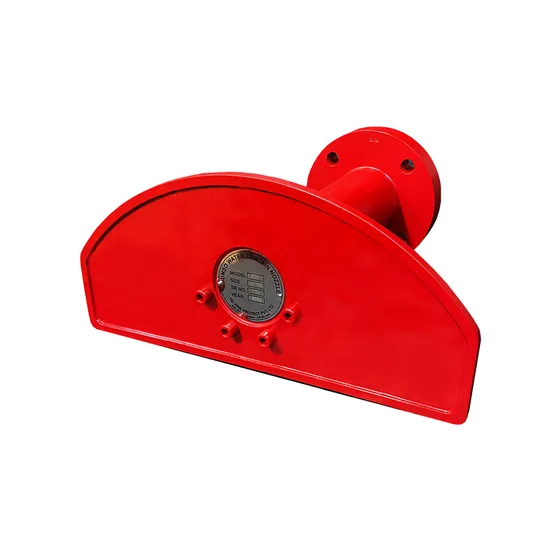

Dealer for HD FireA large stainless steel nozzle with a flanged end that throws a flat curtain of water upward, used to separate one area from another with a wall of water.
Sizes: 65, 80 or 100 mm
| Specification | 65, 80 or 100 mm |
|---|---|
| Model | JCS in Stainless Steel construction |
| Size | 65, 80 or 100 mm flanged end (2.5″, 3″ or 4″) |
| Flow at 100 psi | 1000 to 3000 lpm (264 to 792 gpm) |
| MODEL | JCS - Stainless Steel construction |
| SIZE | 65 NB, 80 NB, 100 NB, 200 NB |
| MAXIMUM WORKING PRESSURE | 14 bar (200 psi) |
| FLOW AT 7 kg/sq.cm | 65 NB - 1000 lpm 80 NB - 2000 lpm 100 NB - 3000 lpm 200 NB - 6000 lpm |
| END CONNECTION | Flange to ANSI B16.5 #150 |
| FINISH | Red RAL 3001 |
| ORDERING INFORMATION | Specify Size |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
A non-automatic, open orifice directional spray nozzle for fixed water spray systems that need high velocity water, such as transformer, circuit breaker, oil-fired boiler and lube oil protection. It is UL Listed.
A non-automatic, open orifice directional spray nozzle with a ¾ inch connection, for high velocity water application on flammable liquid and electrical transformer hazards. It is UL Listed and FM Approved.
Sizes: 1/2″ BSPT or NPT
An open orifice directional nozzle for deluge water spray systems that gives a uniformly filled solid cone of medium velocity droplets for cooling and extinguishing. It is UL Listed, FM Approved and Lloyd's Register Type Approved.
Sizes: 1/2″ BSPT / NPT
A medium velocity open nozzle for deluge water spray systems whose external deflector throws a solid cone of water in the opposite direction to the water inlet. It is UL Listed.
Sizes: 65, 80 or 100 mm
A cast bronze nozzle with stainless steel ball bearings that rotates under water pressure, used mainly to protect the tops of fixed roof storage tanks. It starts turning at 2 bar and covers about 10 metres in diameter at that pressure.
Sizes: 1/2″ BSPT / NPT
A non-automatic open spray nozzle for fixed water spray systems protecting fuel storage tanks. Mounted upright at a distance from the tank wall, it keeps the tank from absorbing heat radiation when there is a fire nearby, and it is UL Listed.
An automatic directional spray nozzle with a frangible bulb for water spray fixed systems, discharging a filled cone of medium velocity droplets once the bulb operates.
An open (non-automatic) external deflector nozzle for water spray fixed systems, discharging a filled cone of medium velocity water droplets.
UL Listed high velocity spray nozzle whose internal vane produces a narrow, solid cone spray with even droplets, for exposure protection and fuel fires.
UL Listed directional spray nozzle with a cone shaped pattern for even coverage, offered in a wide range of K-factors and spray angles, with an SS316 option.
A brass high velocity spray nozzle for deluge protection of special hazards, used to cool surfaces and to extinguish fires, working up to 12 bar.
The stainless steel version of Aaag's high velocity spray nozzle for deluge protection of transformers, switchgear and similar hazards, working up to 12 bar.
