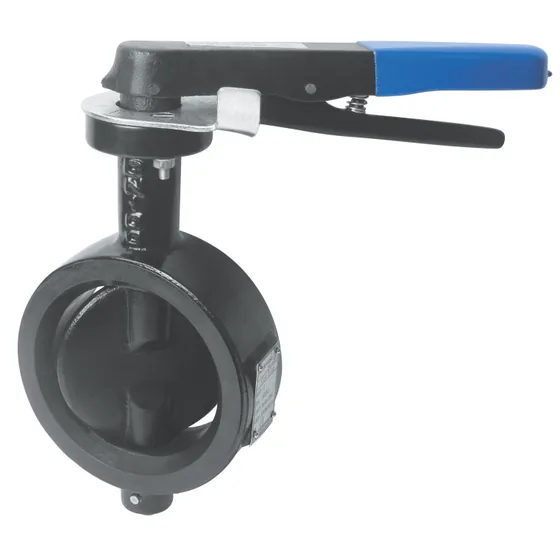

Authorised distributor for Kartar ValvesWafer type butterfly valve with a CI body and integrally moulded Nitrile or EPDM liner, PN 1.0, to IS 13095. K706 has a DI disc and K707 a CF8/304 stainless disc; sizes 25 mm to 600 mm.
Standards and approvals: IS:13095
| Specification | K706 | K707 |
|---|---|---|
| Item | Kartar Wafertype Butterfly valve in CI body with Integrally Moulded liner (Slimline) | Kartar Wafertype Butterfly valve in CI body with Integrally Moulded liner (Slimline) |
| Pressure rating | PN 1.0 | PN 1.0 |
| Disc | DI Disc | SS Disc (CF8/304) |
| Liner | Nitrile / EPDM | Nitrile / EPDM |
| Shaft | SS(AISI 410) | SS(AISI 410) |
| Operation | with lever upto 200mm with gear above 200mm | with lever upto 200mm with gear above 200mm |
| Design Std | IS:13095 | IS:13095 |
| Sizes (MM) | 25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 600 |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
Wafer type butterfly valve with a CI body and an integrally moulded Nitrile or EPDM liner, PN 1.0, to IS 13095. K701 has a CF8-304 stainless disc and K702 a CF8M-316 disc; sizes 25 mm to 600 mm.
A red cast iron wafer butterfly valve for fire lines, with an S.S. disc, EPDM liner and SS stem, lever operated and direct actuator mountable, in PN 16 and ISI marked. Sizes 50 mm to 200 mm, higher sizes on request.
Wafer type butterfly valve with a CI body and integrally moulded Nitrile or EPDM liner, PN 1.0, lever operated, to IS 13095. K706A has a DI disc and K707A a CF8/304 stainless disc; sizes 40 mm to 150 mm.
A red cast iron wafer butterfly valve for fire lines, with an SG iron disc, EPDM liner and SS stem, lever operated, PN 16 and ISI marked. Sizes 50 mm to 200 mm, higher sizes on request.
Wafer type butterfly valve with a CI body and a replaceable Nitrile or EPDM liner, PN 1.0, to IS 13095, lever operated up to 200 mm. K703 has a CF8/304 disc and K704 a CF8M:316 disc; spare liners are sold as K705.
A two lug version of the CI body wafer butterfly valve with an integrally moulded Nitrile or EPDM liner, PN 1.0, lever operated, to IS 13095. K701N has a CF8-304 disc and K702N a CF8M-316 disc; sizes 50 mm to 150 mm.
Sizes: 50 mm to 377 mm
Grooved end butterfly valve in ductile iron, designed to BS EN 593 with grooves to ISO 6182, rated PN16. Sizes listed from 50 mm to 377 mm.
Sizes: 50 mm to 200 mm
Lever operated wafer butterfly valve with a cast iron body, EPDM lining and SS 304 disc, rated PN16. Seat and disc are replaceable, 50 mm to 200 mm.
Sizes: PN 1.6 to 150 mm
Lever operated wafer butterfly valve with SG iron body and SG iron disc, rated PN 1.6 (1.6 MPa), for 40 mm to 150 mm lines. Designed to IS 13095 / BS EN 593 and listed with the ISI mark.
Sizes: PN 1.0 to 600 mm
Gear operated wafer butterfly valve with SG iron body and disc for large lines from 200 mm to 600 mm, designed to IS 13095 / BS EN 593, in PN 1.0 and PN 1.6 ratings.
Sizes: 2 ½” to 12″
UL Listed grooved end butterfly valve designed to API 609, with AWWA C606 grooves and an ISO 5211 top flange, rated 300 psi (21 bar), 2½ inch to 12 inch.
Sizes: 2 ½” to 12″
UL Listed wafer butterfly valve designed to API 609, with ASME B16.1 face to face dimensions and an ISO 5211 top flange, rated 300 psi (21 bar), 2½ inch to 12 inch.
