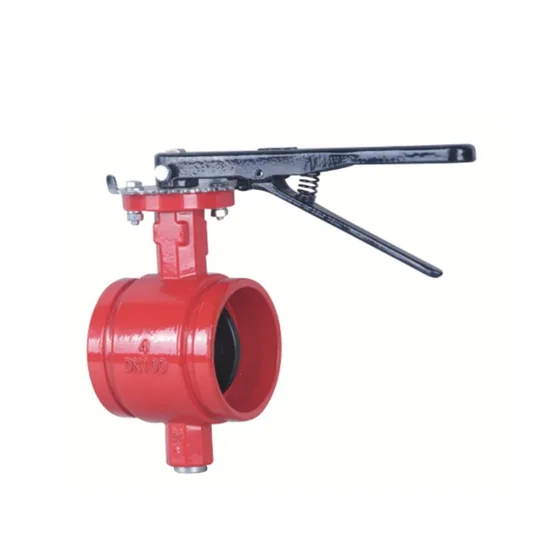

Authorised distributor for Sant ValvesSant Valves D81X4 / D381X4 Grooved Butterfly Valve, Ductile Iron, PN16
Grooved end butterfly valve in ductile iron, designed to BS EN 593 with grooves to ISO 6182, rated PN16. Sizes listed from 50 mm to 377 mm.
- Ductile iron body to EN-GJS-450-10
- Grooved ends to ISO 6182, design standard BS EN 593
- ISO 5211 top flange, stem drive by keys, parallel or diagonal square or flat head
- Fusion bonded epoxy coating to ANSI/AWWA C550, or painting on request, 0°C to 100°C
Standards and approvals: BS EN 593
Sizes: 50 mm to 377 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm | 377 mm |
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | 2″ | 2.5″ | 3″ | 4″ | 5″ | 6″ | 8″ | 10″ | 12″ | 14″ |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 377 |
| A+B+L | 186 | 205 | 222 | 255 | 284 | 318 | 393 | 457 | 525 | 576 |
| C | 81 | 97 | 97 | 116 | 148 | 148 | 133 | 159 | 165 | 178 |
| ∅F | 60.3 | 76.1 | 88.9 | 114.3 | 139.7 | 165.1 | 219.1 | 273 | 323.9 | 377 |
| ∅G | 57.15 | 72.26 | 84.94 | 110.08 | 135.48 | 160.9 | 214.4 | 268.28 | 318.29 | 371.4 |
| ∅K | 90 | 90 | 90 | 90 | 90 | 90 | 125 | 125 | 125 | 150 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
