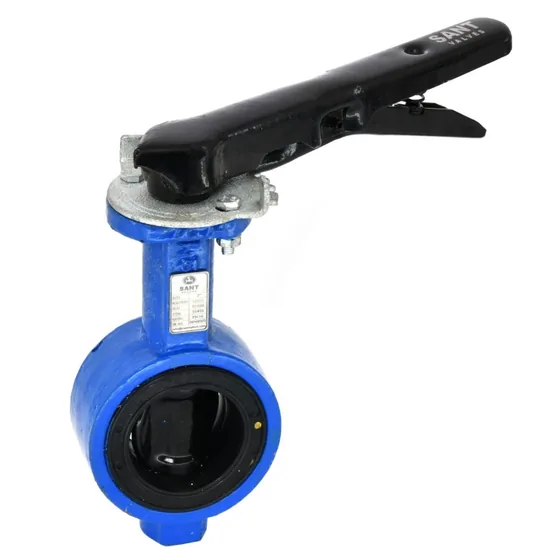

Authorised distributor for Sant ValvesSant Valves BFX Cast Iron Butterfly Valve, SG Iron Disc, Lever, PN16
Lever operated wafer butterfly valve with a cast iron body, EPDM lining and SG iron disc, rated PN16. Seat and disc are replaceable, 50 mm to 200 mm.
- Cast iron body to IS:210 FG 200, AISI-410 stem
- EPDM lining with SG iron disc, replaceable seat and disc
- Fits between flanges to ASME B 16.1 CI-125
- Body test 2.4 MPa, seat test 1.6 MPa
Sizes: 50 mm to 200 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm |
|---|---|---|---|---|---|---|---|
| Nominal Size | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| Nominal Size (Inches) | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 |
| F | 43±2 | 46±2 | 46±2 | 52±2 | 56±2 | 56±2 | 60±2 |
| ∅D | 91 | 97 | 117 | 149 | 169 | 202 | 250 |
| H (Approx.) | 182 | 182 | 182 | 260 | 260 | 260 | 350 |
| G (Approx.) | 204 | 204 | 234 | 278 | 309 | 346 | 391 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
