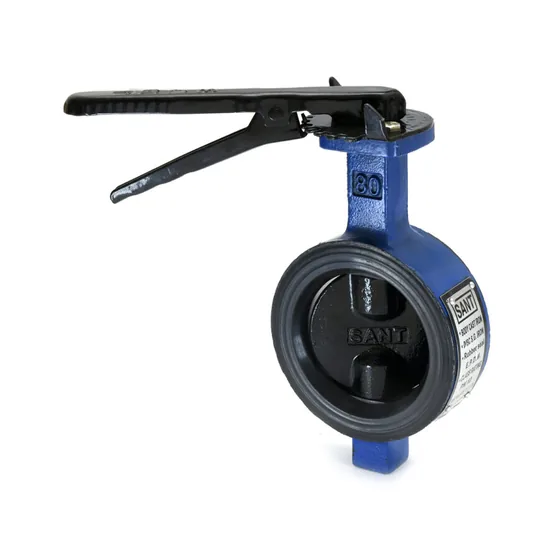

Authorised distributor for Sant ValvesSant Valves CR-24 Cast Iron Butterfly Valve, SS Disc, Lever, PN 10
Short pattern, lever operated wafer butterfly valve with a cast iron body and stainless steel disc, rated PN 10. Sizes 40 mm to 300 mm, for water.
- Cast iron body to IS:210 Gr.FG200, SS AISI-410 trim
- Nitrile or EPDM lining, SS disc
- Fits between flanges to BS 10 Table D/E or ANSI B 16.1 CI-125
- Body test 1.5 MPa (218 psig), seat test 1.0 MPa (145 psig)
Sizes: 40 mm to 300 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Nominal Size (Inches) | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| F | 33±2 | 43±2 | 46±2 | 46±2 | 52±2 | 56±2 | 56±2 | 60±2 | 68±2 | 78±3 |
| ∅D | 82 | 95 | 106 | 124 | 152 | 173 | 210 | 260 | 315 | 370 |
| LL (Approx.) | 175 | 175 | 175 | 175 | 260 | 260 | 260 | 350 | 350 | 350 |
| H (Approx.) | 121 | 133 | 141 | 145 | 178 | 200 | 210 | 276 | 325 | 360 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
