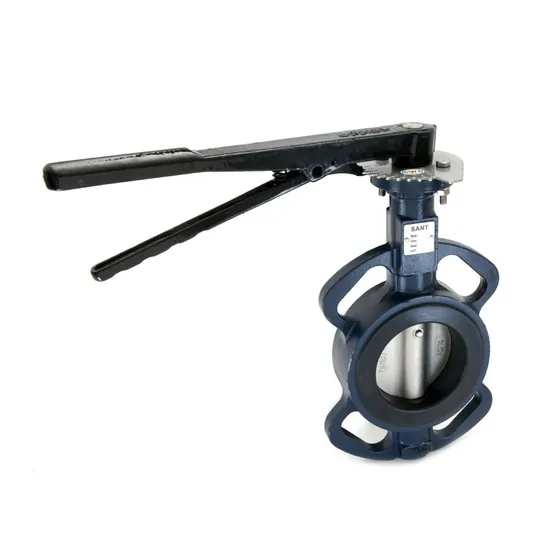

Authorised distributor for Sant ValvesSant Valves CR-28D Ductile Iron Butterfly Valve, PN 25
Wafer type butterfly valve with an SG iron body to IS 1865, rated PN 25 for higher pressure water and oil lines. Sizes 40 mm to 300 mm.
- SG iron body to IS:1865, SS AISI-410 trim
- Nitrile or EPDM lining
- SS (CF8) disc up to 125 mm, SG iron with EPDM for 150 mm and above
- Fits between flanges to BS 10 Table D/E or ASME B 16.1 Class 125
- Body test 3.8 MPa, seat test 2.7 MPa
Sizes: 40 mm to 300 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Nominal Size (Inches) | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| F | 33±2 | 43±2 | 46±2 | 46±2 | 52±2 | 56±2 | 56±2 | 60±2 | 68±2 | 78±3 |
| ØD | 85 | 95 | 110 | 125 | 153 | 179 | 209 | 260 | 315 | 370 |
| H (Approx.) | 145 | 150 | 165 | 175 | 200 | 210 | 245 | - | - | - |
| LL (Approx.) | 200 | 200 | 200 | 200 | 260 | 260 | 260 | - | - | - |
| ∅W (Approx.) | - | - | - | - | - | - | - | 225 | 225 | 225 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
