Apollo Ceiling Tile Mounting Box for Detectors and Sounders
A mounting box that makes it quick to fit detectors and sounders into false ceiling tiles before the ceiling goes up, with no separate backbox. It needs a 127 mm hole in the tile.

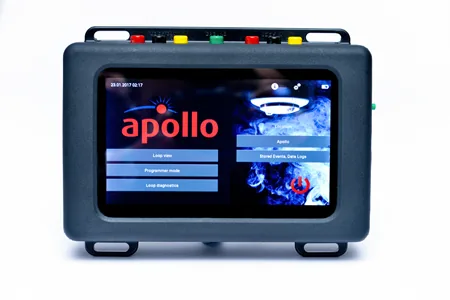

Authorised distributor for ApolloApollo Intelligent Test Set
A portable touch screen test unit that connects to a single device or a whole circuit of Apollo analogue addressable devices to address, interrogate and control them. It is used for loop integrity and diagnostic checks during commissioning and maintenance.
- Loop connection ports for individual addressing or fault finding
- Loop integrity and diagnostics testing
- Shows device information and switches device modes
- Touch screen display
- Internal battery with supplied mains charger
- Works with XP95, Discovery and CoreProtocol, operating range 0 to 40°C
Specifications
Specifications
| Specification | SA7800-870APO |
|---|---|
| Warranty | 10 year |
| Product length | 165mm | 6.5in |
| Product width | 215mm | 8.47in |
| Product depth | 50mm | 1.97in |
| Weight | 935g |
| Operating temperature (min) | 32°F | 0°C |
| Operating temperature (max) | 104°F | 40°C |
| Operating temperature | 32 to 104°F | 0 to 40°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
More Apollo Accessories & Test Equipment
Apollo MiniDisc Remote Indicator
A compact, lightweight red LED indicator for fire alarm systems, used to show an alarm at a visible point away from the device. It can be used across the whole Apollo range.
Apollo Manual Call Point Transparent Hinged Cover (Pack of 10)
Clear hinged covers that fit all Apollo manufactured manual call points and protect them against accidental operation. Supplied in packs of 10.
Apollo DIN-Rail Interface Enclosure, 120 mm DIN-Rail
An IP67 rated enclosure that houses several DIN-rail mounted interfaces, or intrinsically safe (I.S.) barriers, together in one box. Apollo makes it in two sizes and this listing is the 120 mm DIN-rail version.
Apollo Flame Detector Bracket, Stainless Steel
An optional stainless steel mounting bracket for the Apollo Intelligent Flame Detectors, adjustable in two axes so the detector can face any direction. It is not suitable for the base mounted flame detectors.
Apollo Talentum Test Torch for Flame Detectors
A test torch that recreates the light signature of a flame with UV and IR bulbs, simulating a pan fire to test flame detectors from 1 m to 6 m away. Test results can be stored and downloaded to a PC.
Fire Alarm Accessories and Test Equipment from other brands
Honeywell
Honeywell RI/007C Response Indicator for Fire Detectors
A remote indicator wired to a fire detector that is concealed or hard to see, so the source of an alarm can be found quickly. It works with conventional or addressable detectors.
Honeywell
Honeywell LCH CLSS Cloud Gateway and Monitoring Software
A gateway that links fire alarm panels, the cloud and peripherals, reading the panel's inventory data and passing it to licensed cloud software for remote monitoring and management.
Notifier
Notifier HS-NCM-W High-Speed Network Communication Module, Wire
Connects Notifier panels, NCA and NCA-2 annunciators and the DVC to High-Speed NOTI-FIRE-NET over twisted-pair wire, with up to 2 node addresses.
Notifier
Notifier HS-NCM-MF High-Speed Network Communication Module, Multi-Mode Fibre
Connects Notifier panels, annunciators and the DVC to High-Speed NOTI-FIRE-NET over multi-mode fibre-optic cable.
Morley by Honeywell
Morley by Honeywell DXc Network Card (795-099)
The card that connects DXc panels into a network. One is fitted to each panel, on the four studs at the left-hand side of the control panel.
Morley by Honeywell
Morley by Honeywell DXc RS232 Card (795-122)
An RS232 kit for DXc panels that connects a serial device, such as a BMS or AMX fire graphics software, through a third party protocol.
