Honeywell CLSS Gateway Modbus Feature (HON-CGW-MBB)
A feature of the CLSS Gateway HON-CGW-MBB that links networks using the Modbus/TCP protocol to fire alarm control panels on an NFN network.

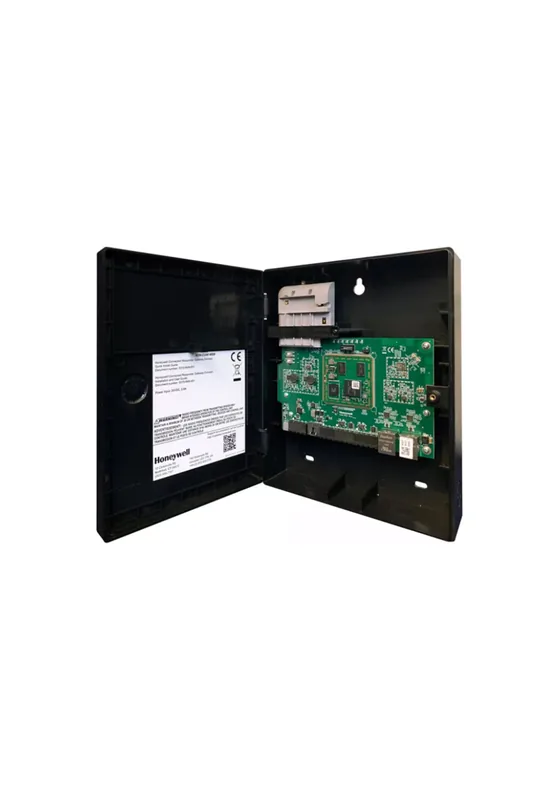

Dealer for HoneywellHoneywell LCH CLSS Cloud Gateway and Monitoring Software
A gateway that links fire alarm panels, the cloud and peripherals, reading the panel's inventory data and passing it to licensed cloud software for remote monitoring and management.
- Cloud-based monitoring of fire alarm systems, with real-time event alerts
- Captures and reports changes of state
- Identifies, plans and documents maintenance tasks and repairs
- Reports on registered mobile devices or stationary IT systems, with worldwide access
- Graphical support with object-related alarm verification on maps
- 18 to 30 V DC operation, 0 to 49°C, flame retardant ABS-FR enclosure
Standards and approvals: FCC, FM approved, NFPA 70, NFPA 72
Specifications
Specifications
| Specification | HON-CGW-MBB |
|---|---|
| Operating Voltage Range | 18 V DC to 30 V DC |
| Rated Current (Typical) | 0.140A# |
| Operating Temperature | 32°F to 120°F 0°C to 49°C |
| Storage Temperature | 14F°to 140°F -10°C to 60°C |
| Relative Humidity | 1% to 93% Non-condensing |
| Dimensions (with Enclosure) | 2.788" D x 8.023" W x 10.25" H 7cm D x 20.37 cm W x 26 cm H |
| Weight - Gateway + Enclosure | 1.9 lb 861.8 gm |
| Weight - Cellular Module | 0.097 lb 44 gm |
| IP Code | N/A IP 30 (Cable Glands required) |
| Enclosure Material | Black, Flame Retardant ABS-FR (17) Polylac® PA-765 |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
