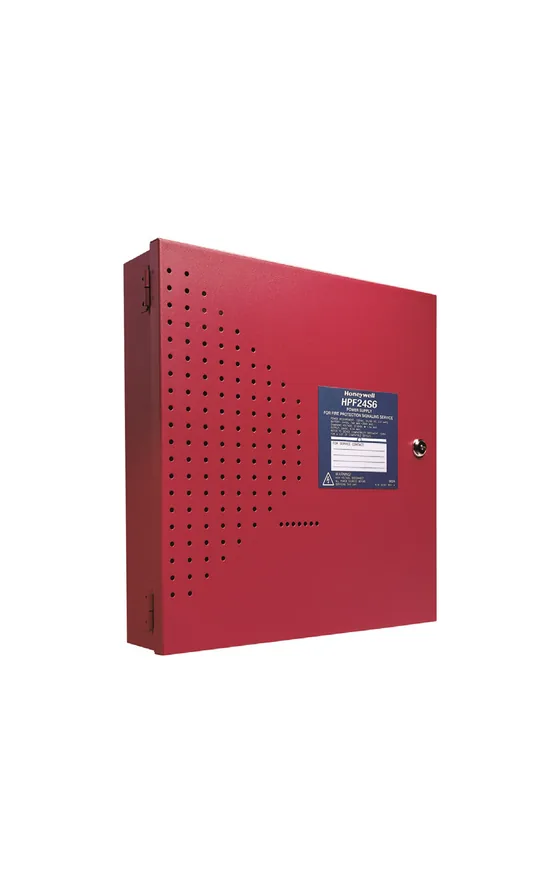

Dealer for HoneywellHoneywell HPF24S6E Remote Fire Alarm Power Supply, 6 Amp
A compact 6 amp remote power supply with a battery charger that connects to any 12 V or 24 V fire alarm control panel, or works on its own.
- 6 amp remote power supply with battery charger
- Connects to any 12 V or 24 V fire alarm control panel, or stands alone
- Expands notification appliance circuits (NACs), including NAC synchronisation
- Auxiliary power for 24 V system accessories
- Trouble contact rated 5.0 A at 24 VDC
- UL 864, UL 1481, NFPA 72 and ULC-S527 listed; FM approved
Standards and approvals: UL 864, UL Listed, UL 1481, NFPA 72, ULC-S527, FM Approved
Specifications
Specifications
| Specification | Details |
|---|---|
| Primary (AC) Power | HPF24S6/8(C): 120 VAC 60 Hz, 3.2 A maximum | HPF24S6/8E: 220/240 VAC, 50 Hz, 1.6 A maximum | Wire size: minimum 14 AWG (2.0 mm²) with 600V insulation |
| Control Input Circuit | Trigger Input Voltage: 9.0 to 32 VDC | Trigger Current: 2.0 mA (16 - 32 V) | (per input) 1.0 mA (9 - 16 V) |
| Trouble Contact Rating | 5.0 A at 24 VDC |
| Auxiliary Power Output | Special Application | Power - 500 mA maximum |
| Output Circuits | +24 VDC filtered, regulated | 3.0 A maximum for any one circuit | 4.0 A maximum total continuous current for all outputs (Stand-alone mode) for the HPF24S6 and 6A for the HPF24S8 | 6A or 8A (depending on model) maximum total short-term current for all outputs (NAC | Expander mode) |
| Secondary Power (Battery) Charging Circuit | Supports lead-acid batteries only | Float Charge Voltage: 27.6VDC | Maximum Charge Current: 1.5 A | Maximum Battery Capacity: 18 AH |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
