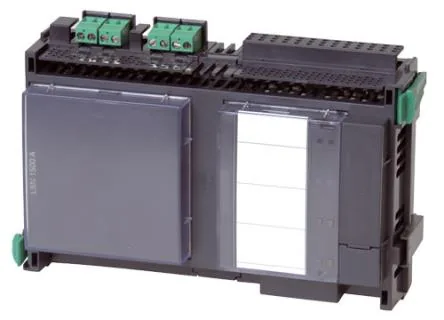

Dealer for BoschBosch LSN 1500 A LSN Loop Module, 1500 mA, for AVENAR Panels
A plug-in panel module that connects one LSN loop with up to 254 LSN improved elements at up to 1500 mA of line current, or 127 classic LSN elements at up to 300 mA.
- Up to 254 LSN improved elements at up to 1500 mA line current
- Up to 127 classic LSN elements at up to 300 mA
- Line length up to 3000 m, depending on configuration and cable type
- Unshielded cable can be used; loop, stub and T-tap structures
- IP30, anthracite grey; size in mm (H x W x D): 127 x 190 x 60
Specifications
Specifications
| Specification | LSN 1500 A |
|---|---|
| Cable length (m) | 3000 |
| Weight (g) | 440 |
| Operating temperature (°C) | -5 to 50 |
| Storage temperature (°C) | -20 to 60 |
| Input voltage (VDC) | 20 to 30 |
| Dimensions (H x W x D) (mm) | 127 x 190 x 60 |
| Operating relative humidity, non-condensing (%) | 0 to 95 |
| IP rating | IP30 |
| Color | Gray |
| Color (RAL) | RAL 7016 Anthracite gray |
| LED color | Red; Yellow |
| Material | Plastic |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
