Notifier HS-NCM-W High-Speed Network Communication Module, Wire
Connects Notifier panels, NCA and NCA-2 annunciators and the DVC to High-Speed NOTI-FIRE-NET over twisted-pair wire, with up to 2 node addresses.

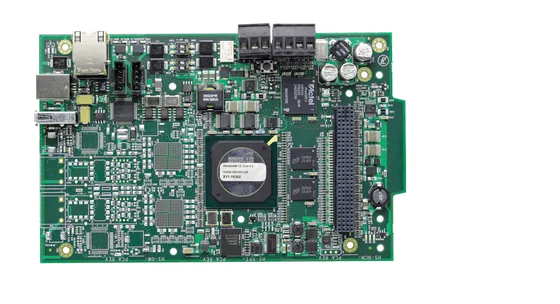

Dealer for NotifierNotifier NFN-GW-EM-3 Embedded NOTI-FIRE-NET Gateway
A standalone embedded gateway with IP capability that lets ONYX Series users monitor several sites over Ethernet without remote workstations.
- Standalone embedded gateway with IP capability
- Monitors multiple sites over an Ethernet network
- Full monitoring, control, panel programming and network diagnostics
- Includes a PC board and PNET-1 surge suppressor
- Compatible with ONYXWorks and ONYX FirstVision
- UL/ULC listed, with CSFM and MEA listings
Standards and approvals: UL/ULC Standards and NFPA 72 Fire Alarm Systems, UL / ULC: S5697, CSFM: 7300-1525:103, MEA: 286-07-E
Specifications
Specifications
| Specification | Details |
|---|---|
| PC version | • Requires an ONYXworks® Workstation (see ONYXworks® data sheet DN-7048). • Operating temperature: 0°C to 49°C (32°F to 120°F). |
| Embedded version | • Input current: 450 mA @ 24 VDC. • Input voltage range: 19 VDC to 29 VDC. • Operating temperature: 0°C to 49°C (32°F to 120°F). • Mounts on a CHS-4L chassis in a CAB-4 Series cabinet (see data sheet DN-6857). • Direct connection to NFS2-640, NFS-640, NFS-320, NFS2-3030, and NFS-3030 fire alarm control panels. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
