Notifier HS-NCM-W High-Speed Network Communication Module, Wire
Connects Notifier panels, NCA and NCA-2 annunciators and the DVC to High-Speed NOTI-FIRE-NET over twisted-pair wire, with up to 2 node addresses.

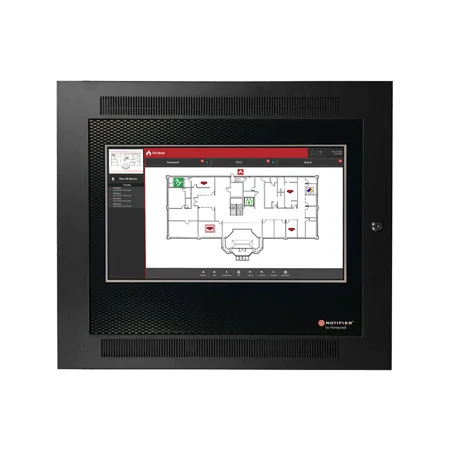

Dealer for NotifierNotifier ONYX FirstVision LCD Touchscreen for Fire Fighters
A wayfinding touchscreen for fire fighters and emergency responders that graphically shows where a fire started, how it is spreading and key building information.
- 22 inch LCD touchscreen
- Shows activated detectors and the order they activated, for one or more buildings
- Floor plans, water supplies, evacuation and access routes, hazards and shutoffs
- Connects to ONYX panels or NOTI-FIRE-NET through the NFN gateway over Ethernet
- Supports multiple gateways; on-board Ethernet, USB and one software licence
- UL/ULC listed, with MEA and CSFM listings; 0°C to 50°C
Standards and approvals: UL/ULC Listed: S5697, MEA: 286-07-E, CSFM: 7300-1525:0103
Specifications
Specifications
| Specification | Details |
|---|---|
| Enclosure Dimensions | 24.53" W X 21.92" H X 3.47" D (62.30 cm H x 55.68 cm W x 8.81 cm D). |
| Door Dimensions | 26.70" W X 23.06" H X 0.41" D (67.81 cm H x 58.57 cm W x .10 cm D). |
| Power Requirements | Regulated, filtered 24 VDC @ 3.0 A via non-resettable power supply, UL Listed for fire-protec- tive signaling use. |
| Temperature Range | 0°C to 50°C (32°F: 120°F). |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
