Fire hoses carry water from a landing valve or hydrant outlet to the branch pipe, and couplings and adaptors join each length to valves, branch pipes and other hoses. Fire Protection System supplies delivery hoses, hose reel hoses, couplings, adaptors, blank caps and flexible sprinkler hoses from Kartar Valves, New Age, Minimax, Savemax, Aaag and Balaji Fire Safety in Bhopal and across Madhya Pradesh.
A complete delivery hose coupling made to IS 903 with the ISI mark, in bronze (gunmetal) or stainless steel. The website lists it as a push type coupling for 65 mm hose, tested to 21 kg/cm2; the product list gives 63 mm.
Sizes: 63 mm
A spare coupling for landing valves, used to replace a worn or damaged outlet coupling. Size 63 mm, in stainless steel or gunmetal.
Reinforced rubber lined (RRL) delivery hose, 63 mm, made to IS 636 in Type 1, Type 2 and Type 3 (earlier Type B). Supplied in 15 m and 30 m lengths with ISI marked IS 903 couplings in gunmetal or stainless steel, or as loose hose by the metre.
Controlled percolating (CP) delivery hose, 63 mm, made to IS 8423 and ISI marked. Supplied in 15 m and 30 m lengths with IS 903 couplings in gunmetal or stainless steel, or by the metre.
Black rubber hose for first aid hose reels, ISI marked to IS 444, in 20 mm and 25 mm bore and 30 m length, supplied without a nozzle.
Thermoplastic hose for first aid hose reels, ISI marked to IS 12585, in 20 mm and 25 mm bore and 30 m length, supplied without a nozzle.

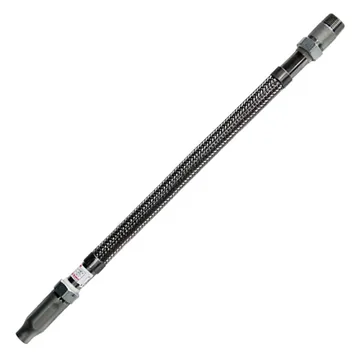

A braided stainless steel flexible drop for connecting sprinkler heads, supplied complete with accessories, in 700 mm to 1800 mm lengths (1800 mm on request).
An unbraided stainless steel flexible drop for connecting sprinkler heads, supplied complete with accessories, in 700 mm to 1800 mm lengths.
A neoprene single arch flexible connector, also called an expansion joint or rubber bellows, with a control unit, in 50 mm to 300 mm. The pipe flanges shown in Kartar's picture are not part of the product.
Delivery hose coupling to BS 336 and IS 903, in gunmetal, aluminium alloy or stainless steel, with a ribbed or multi serrated tail.
Sizes: 3″, 4”, 5”, 5.5”
Suction hose coupling to BS 336 and IS 903 in gunmetal, aluminium alloy or stainless steel, in 3 inch, 4 inch, 5 inch and 5.5 inch sizes.
Symmetrical Storz hose coupling in gunmetal or aluminium alloy, for hose from 1.5 inch to 6 inch, with a maximum working pressure of 16 bar.
Unisex GOST hose coupling for single and double jacketed lined hose, in gunmetal or aluminium alloy, in DN50, DN70 and DN80.
Sizes: 1.5”, 2.5”
Rocker lug hose coupling in gunmetal or aluminium alloy for single and double jacketed lined hose, in 1.5 inch and 2.5 inch, supplied with expansion rings and swivel washer.
Sizes: 1.5” / 2.5”
Instantaneous hose adaptors in gunmetal or aluminium alloy, 1.5 inch and 2.5 inch, for connecting instantaneous couplings to other fittings.
Sizes: 1.5” / 2.5”
Gunmetal Storz adaptors in 1.5 inch and 2.5 inch, for connecting Storz couplings to other hose or outlet types.
Sizes: 1.5” / 2.5”
Adaptors for Russian GOST couplings, in gunmetal or aluminium alloy, 1.5 inch and 2.5 inch.
Sizes: 1.5” / 2.5”
Threaded hose adaptors in gunmetal or aluminium alloy, 1.5 inch and 2.5 inch, for joining threaded outlets to other coupling types.
Gunmetal or aluminium alloy adaptors for pumper connections, with BSRT or Storz connection types.
Flange adaptors in gunmetal or aluminium alloy, either standard (ANSI, Table D or PN16 flanges) or international shore connections, each paired with the hose adaptor you need.
Sizes: 1.5” / 2.5” Storz, 1.5”, 2.5”, 4”, 5”, 5.5”, 2.5 male instantaneous
Blank caps with SS 304 chains for instantaneous, Storz and BSRT outlets, in gunmetal, ABS or PVC, from 1.5 inch to 5.5 inch.
Copper alloy air release valve with a threaded male inlet connection, one of New Age's dry riser fittings.
Sizes: 25 mm to 152 mm

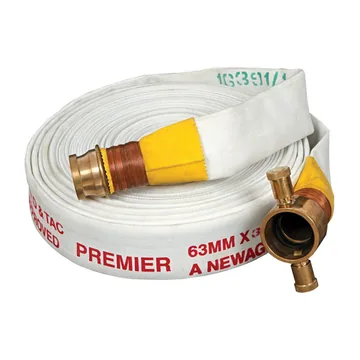

Rubber lined single jacket delivery hose with a polyester jacket and EPDM lining, ISI marked, UL Listed and conforming to BS 6391:2009 Type 1, from 25 mm to 152 mm.
Sizes: 25 mm to 152 mm

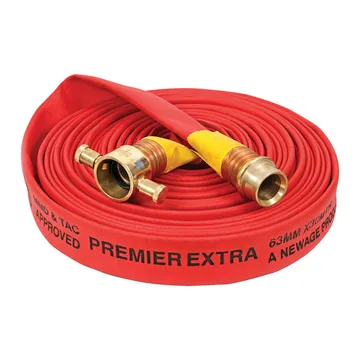

Delivery hose for aggressive fire fighting, with a polyester jacket, EPDM lining and an external elastomer coating for heat and abrasion resistance. ISI marked, BS 6391:2009 Type 2, from 25 mm to 152 mm.
Sizes: 25 mm to 152 mm

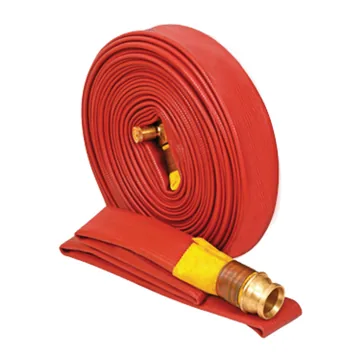

Heavy duty, fully extruded through the weave delivery hose with a ribbed cover, resistant to oil, fuel, chemicals and kinking. ISI marked and UL Listed, from 25 mm to 152 mm.
Sizes: 25 mm to 152 mm
Through the weave delivery hose listed by New Age with the same construction and approvals as Aquasurge: nitrile / PVC rubber compound, ribbed cover, ISI marked and UL Listed, 25 mm to 152 mm.
Sizes: 38 mm, 52 mm, 65 mm

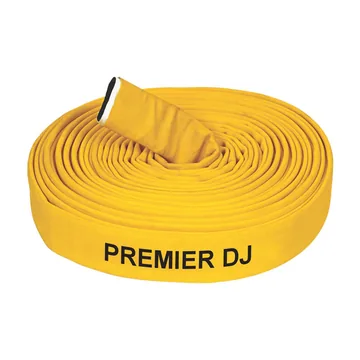

Double jacketed hose for fire brigade and heavy industrial fire fighting where high water pressure is needed, made in accordance with NFPA 1961 and conforming to the UL 19 standard. Sizes 38 mm, 52 mm and 65 mm.
Sizes: 25 mm to 152 mm

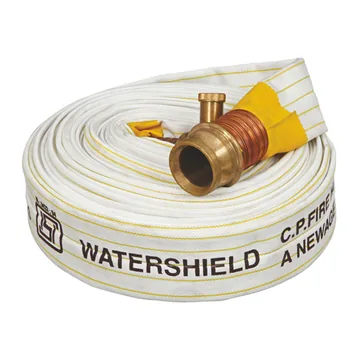

Lightweight, self protecting forestry attack hose whose rubberised waterway lets water seep through evenly to wet the jacket. ISI marked, from 25 mm to 152 mm.

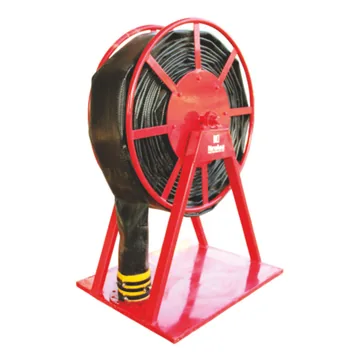

Large diameter hose that is lighter and more flexible than mandrel built hoses, resists oil, fuel, chemicals, weather and ozone, and deploys and recovers quickly.

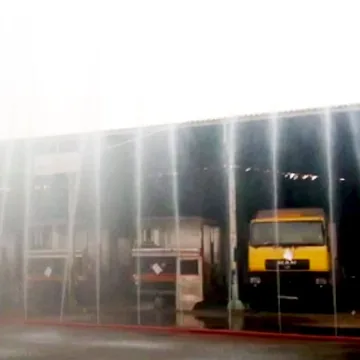

A 30 m, 64 mm hose with brass nozzles spaced every 1 m along its length, operating at 7 bar, with instantaneous couplings to BS 336 / IS 903.

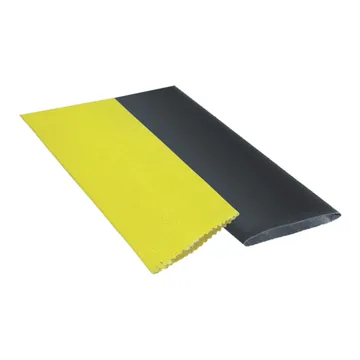

Woven component of 100% synthetic polyester yarn that protects the hose from binding wire, available in diameters from 15 mm up to 150 mm on request.
Flexible hose for sprinkler connections in 700 mm to 1800 mm lengths, rated 175 psi with a 300 psi maximum, with outlets for K-factor 5.6, 8 and 11.2 sprinklers.
Instantaneous male and female coupling pair for 63 mm fire hoses, made as per IS:903 and ISI marked. Available in gunmetal, stainless steel or aluminium.
Sizes: 63 mm

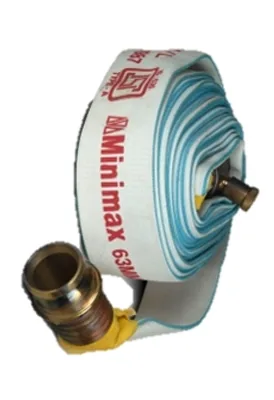

Non-percolating, rubber lined delivery hose with a circular woven synthetic jacket, conforming to IS:636 Type 1 and ISI marked. Supplied in 7.5, 15 and 30 m lengths with IS:903 instantaneous couplings bound with copper wire.
Sizes: 63 mm
Non-percolating delivery hose with an EPDM rubber lining and an external synthetic elastomeric coating, conforming to IS:636 Type 2. The coating protects the jacket against absorbing liquids and improves its resistance to abrasion and heat.
Sizes: 63 mm

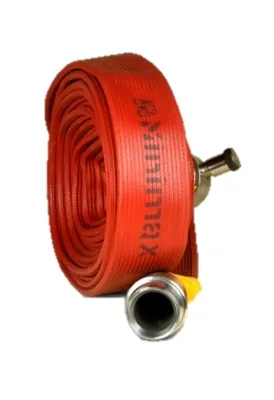

Non-percolating delivery hose with an NBR-PVC rubber lining and external cover, conforming to IS:636 Type 3 and marked ISI and CE. Minimax lists very low absorption of oils, greases, acids and alkalis and high resistance to abrasion and direct heat.
Sizes: 63 mm

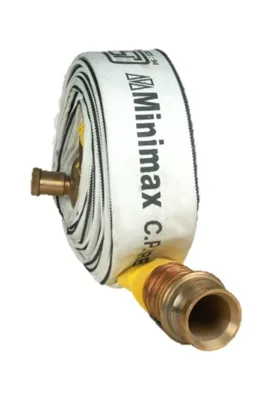

Circular woven jacketed controlled percolating fire hose with an inner rubber coating, made to IS:8423 and ISI marked. Supplied in 7.5, 15 and 30 m lengths with IS:903 instantaneous couplings bound with copper wire.
Sizes: 15m, 30m

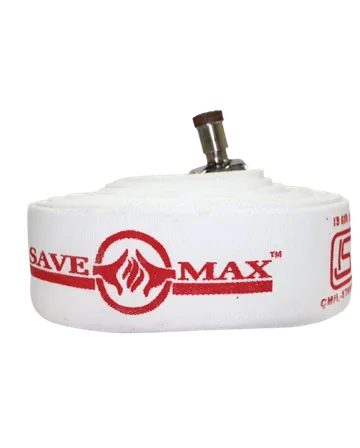

Rubberised reinforced lined fire hose to IS 636, supplied with stainless steel instantaneous couplings already fitted so it can go straight into a hose box or cabinet. It comes in 15 m and 30 m lengths.
Reinforced rubber lined delivery hose with a fabric reinforced rubber lining and a jacket of 100% synthetic yarn, made to IS 636 Type A and ISI marked. Aaag notes its durability and its heat and abrasion resistance.
RRL hose made to IS 636 Type B and ISI marked, with a seamless circular woven synthetic fibre reinforcement fully encased in a synthetic polymer. Aaag states it resists grease, oils, acids, alkalies, ozone, fungus, heat and chemicals.
Controlled percolating hose with a 100% synthetic yarn jacket through which water oozes evenly all round, keeping the hose wet where it passes through high radiant heat. Made to IS 8423 and ISI marked.
Sizes: 63 mm
An instantaneous hose coupling made to IS 903 and ISI approved, in gunmetal or aluminium alloy. Size 63 mm, with 38 mm and 100 mm as options.
Sizes: 63 mm
The SS 304 version of Aaag's ISI approved IS 903 instantaneous coupling, in 63 mm with 38 mm and 100 mm as options. Gunmetal is also available.
Sizes: 63 mm to 38 mm
An instantaneous coupling that steps down from 63 mm to 38 mm, for joining hoses or fittings of the two sizes.
Sizes: 63 mm, Thread

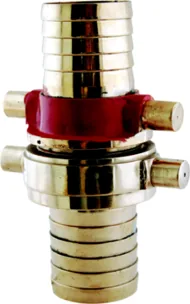

A threaded hose coupling of lug type, made to IS 903, in 63 mm.
Sizes: 63 mm
A threaded hose coupling with a hexagonal body, in 63 mm.
Sizes: 63mm
A bayonet type Nunan hose coupling in 63 mm, for hoses and equipment that use the Nunan system.
Sizes: 63 mm

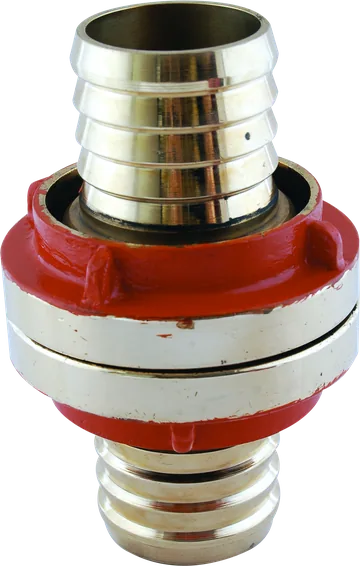

A Storz type hose coupling in 63 mm, for hoses and equipment that use Storz connections.
Sizes: 63 mm

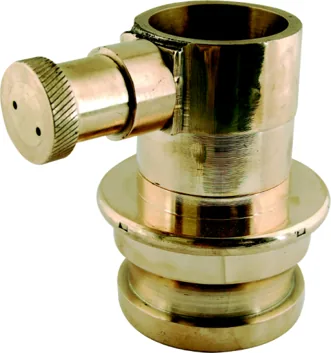

A 63 mm adaptor with a female instantaneous end and a male instantaneous end.
Sizes: 63 mm

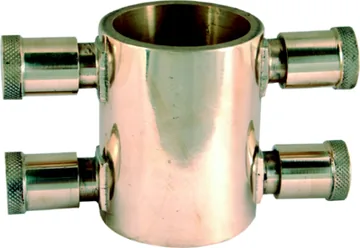

A 63 mm adaptor with female instantaneous connections at both ends and double lugs, for joining two male instantaneous ends.
Sizes: 63 mm

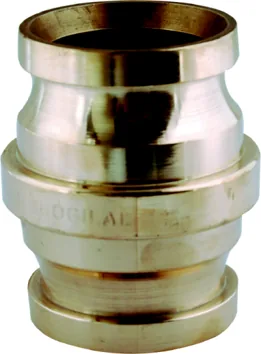

A 63 mm adaptor with male instantaneous connections at both ends, for joining two female instantaneous ends.
Sizes: 63 mm

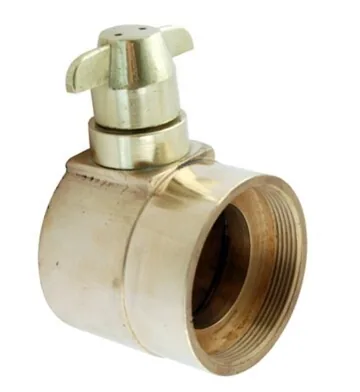

A 63 mm adaptor from a female instantaneous connection to a female BSP taper thread.
Sizes: 63 mm
A 63 mm adaptor for hydrants, from a female instantaneous connection with a single lug to a female BSP taper thread.
Sizes: 63 mm

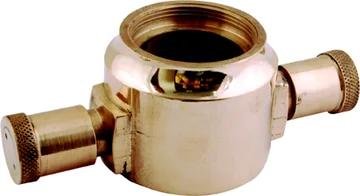

A 63 mm adaptor from a female instantaneous connection with double lugs to a female BSP thread.
Sizes: 63 mm

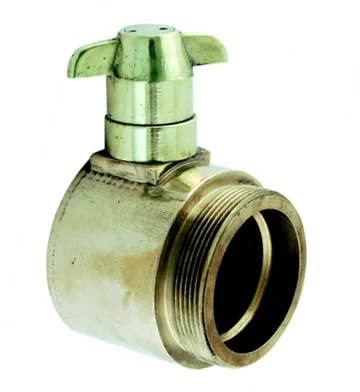

A 63 mm adaptor to a male BSP thread. Aaag's heading lists it as a female instantaneous adaptor while its table reads male instantaneous to male BSP thread, so we confirm the instantaneous end when you order.
Sizes: 63 mm
A 63 mm adaptor from a male instantaneous connection to a female BSP thread with a hexagon body.
Sizes: 63 mm

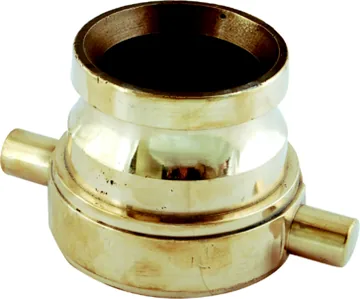

A 63 mm adaptor from a male instantaneous connection to a female BSP thread with a swivel lug.
Sizes: 63 mm

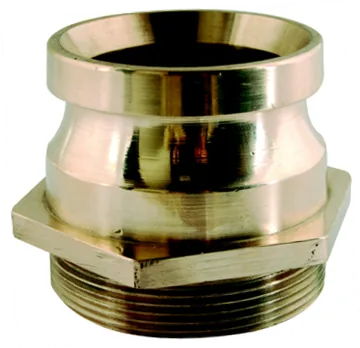

A 63 mm adaptor from a male instantaneous connection to a male BSP thread with a hexagon body.
Sizes: 63 mm
A 63 mm adaptor from a male instantaneous connection to a male BSP thread with lugs.
Sizes: 63 mm Instantaneous

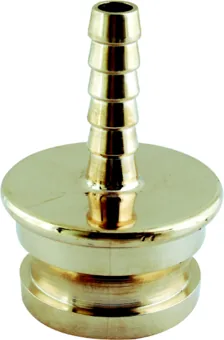

A reducing adaptor from a 63 mm male instantaneous connection down to a 19 mm shank.
An adaptor from a 63 mm female instantaneous connection to a 75 mm flange, for connecting hoses to flanged pipework.

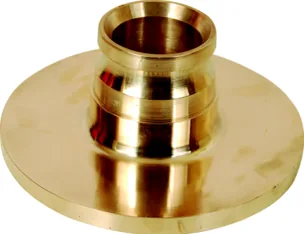

An adaptor from a 63 mm male instantaneous connection to a 75 mm flange, for connecting to flanged pipework.

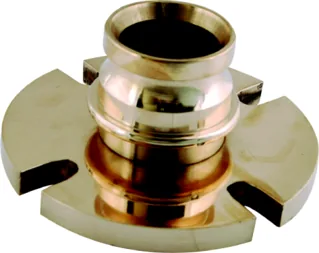

An adaptor from a 63 mm male instantaneous connection to an international shore connection with a 75 mm flange.
Sizes: 100 mm

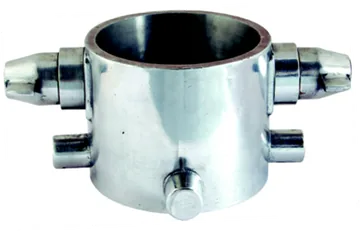

A 100 mm adaptor from a female round thread to a female instantaneous connection.
Sizes: 63 mm

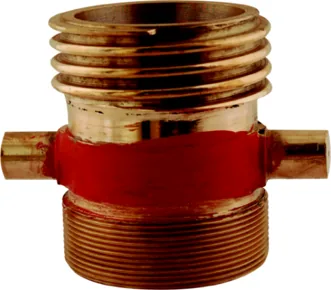

A 63 mm adaptor from a male round thread to a male BSP taper thread.
Sizes: 1 ½ “ to 5 ½ “
An adaptor between a round thread and a flange, in sizes from 1.5 inch to 5.5 inch. Aaag's heading says female round thread while its table reads male round thread to flange, so we confirm the thread end when you order.
Sizes: 63 mm

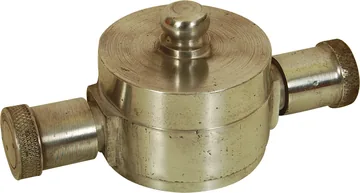

A female instantaneous blank cap for closing a 63 mm male instantaneous outlet or inlet when it is not in use.
Sizes: 63 mm
A metal male instantaneous blank cap for closing a 63 mm female instantaneous outlet, such as on a landing valve. Aaag lists two codes, G187 and G188, with the same published data, so we confirm the right one for your valve.
Sizes: 63 mm

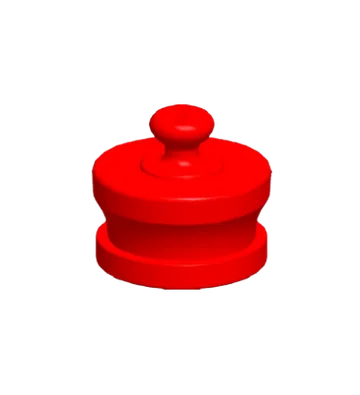

An ABS plastic male instantaneous blank cap for 63 mm female instantaneous outlets.
Sizes: 75 mm/100 mm/140 mm

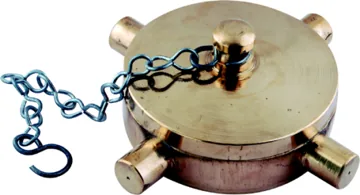

A female round thread blank cap in 75 mm, 100 mm or 140 mm, for closing male round threaded outlets.
Sizes: 175 mm

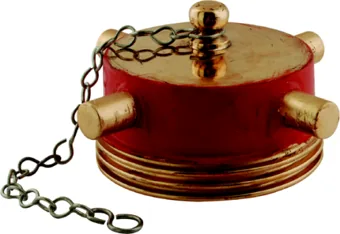

A male round thread blank cap in 175 mm, for closing large female round threaded connections.
Sizes: 2 inch, 2.5, 63 mm
Stainless steel instantaneous hose couplings to IS 903 for joining fire hoses to each other and to valves and branch pipes, in male and female or male and male pairs. Most listings are ISI marked; one is listed as not ISI marked.
Sizes: 2.5
A polished aluminium fire hose coupling of 2.5 inch size, weighing about 1 kg.
Sizes: 63 mm
A colour coated brass instantaneous hose coupling in 63 mm for fire fighting hoses.
Sizes: 2 1/2", 63 MM

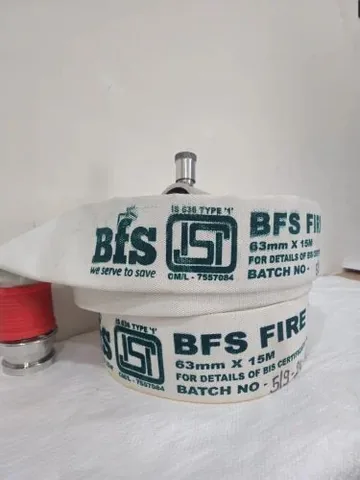

A reinforced rubber lined delivery hose, Type A, in 63 mm (2.5 inch) with a 50 mm size also listed, in 15 m and 30 m lengths, with male and female couplings on many listings. Several listings describe it as ISI marked to IS 636.
Sizes: 2.5 inch

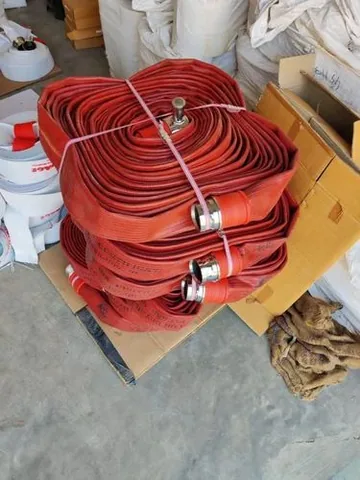

A reinforced rubber lined delivery hose, Type B, in red, 63 mm (listed as 2.5 inch and 65 mm), in 15 m and 30 m lengths. Two listings describe it as ISI marked to IS 636.
Sizes: 1/2 inch, 1 inch, 19 mm, 25 mm

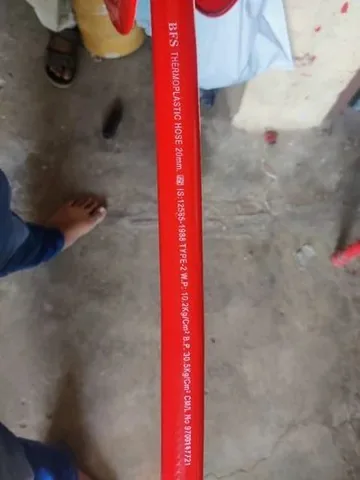

Hose for first aid hose reels in 19 mm and 25 mm, in 30 m lengths, described by Balaji as thermoplastic or rubber, Type 2, with a 10 bar working pressure.
Sizes: 1 inch

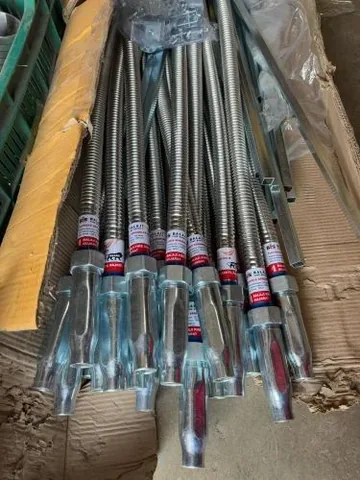

A 1 inch flexible hose and dropper that connect sprinkler heads to the sprinkler pipeline at ceiling level, for pendant or upright sprinklers. The flexible hose is listed at 1.2 m.
Sizes: 63 mm
A short body delivery hose coupling of the JMW range, 63 mm, in gunmetal or stainless steel.
A spare set for flexible sprinkler drops with one square bar, one centre bracket and two end brackets.
Start with the hose construction. Non percolating, rubber lined delivery hose is the usual choice for hydrant and wet riser hose boxes. Kartar Valves and Minimax list IS 636 Type 1, Type 2 and Type 3 hoses: in the Minimax range Type 1 has a synthetic woven jacket, Type 2 an EPDM lining with an external elastomeric coating that guards the jacket against liquids, abrasion and heat, and Type 3 an NBR-PVC lining and cover with very low absorption of oils, greases, acids and alkalis. Savemax, Aaag and Balaji Fire Safety list their RRL (reinforced rubber lined) hoses as Type A or Type B, so check which type your specification names. Controlled percolating (CP) hose to IS 8423, from Kartar Valves, Minimax and Aaag, lets water seep evenly through the jacket so it stays wet where it passes through radiant heat.
For heavier or special duty, New Age offers ISI marked rubber lined hoses to BS 6391:2009, single jacket (Premier, also UL Listed) or coated (Premier Extra), through the weave nitrile and PVC hoses that resist oil, fuel, chemicals and kinking, a double jacketed hose made in accordance with NFPA 1961 and conforming to UL 19 for fire brigade and heavy industrial use, a self protecting forestry hose, a large diameter hose and the Pyrojet hose with brass nozzles every 1 m. For first aid hose reels, Kartar Valves offers 20 mm and 25 mm hose in rubber to IS 444 or thermoplastic to IS 12585, and Balaji Fire Safety lists 19 mm and 25 mm hose reel hose, both in 30 m lengths.
Then match size, length and pressure. Most hydrant hoses here are 63 mm, with Aaag RRL and CP hose offered from 38 to 100 mm and New Age hoses from 25 mm to 152 mm. Minimax supplies 7.5, 15 and 30 m lengths and Kartar Valves, Savemax and Balaji Fire Safety 15 m and 30 m, with Savemax suggesting 15 m for floor level hose boxes in buildings. Aaag lists its Type A RRL and CP hoses at 14 bar working, 21 bar test and 35 bar burst pressure, and Minimax its Type 1 and CP hoses at 14 kgf/cm2 working, 21.4 kgf/cm2 proof and 35.7 kgf/cm2 burst.
Couplings must match on both sides of every joint. Instantaneous couplings to IS 903 come from Kartar Valves, Minimax, Aaag and Balaji Fire Safety, ISI marked on most models, in gunmetal, stainless steel, aluminium or brass, and New Age makes its instantaneous couplings to BS 336 and IS 903. For equipment built to other systems, New Age and Aaag offer Storz couplings, Aaag a Nunan coupling and New Age Russian GOST and American rocker lug couplings, plus adaptors between instantaneous, BSP, round thread and flange ends, international shore connections, reducing couplings and blank caps. Kartar Valves and Minimax bind couplings to the hose with copper wire (Kartar uses SS wire for SS couplings), and Savemax supplies its RRL hose with stainless steel couplings already fitted.
