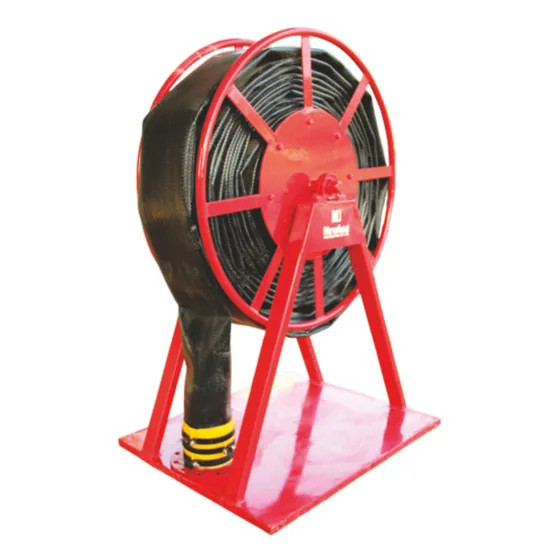

Supplier for New AgeLarge diameter hose that is lighter and more flexible than mandrel built hoses, resists oil, fuel, chemicals, weather and ozone, and deploys and recovers quickly.
| Specification | Details | Details | Details |
|---|---|---|---|
| ID | in mm | 204 | 254 | 305 |
| ID | in inch | 8″ | 10″ | 12″ |
| Wall Thickness | in mm | 4.2 | 4.2 | 4.6 |
| Wall Thickness | in inch | 0.17″ | 0.17″ | 0.18″ |
| Weight | Lbs/ft | 2.10 | 2.82 | 3.35 |
| Working Pressure | psi | 170 | 150 | 150 |
| Bursting Pressure | psi | 540 | 450 | 450 |
| Tensile Pressure | Lbs | 81,500 | 99,900 | 123,000 |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
Sizes: 25 mm to 152 mm
Rubber lined single jacket delivery hose with a polyester jacket and EPDM lining, ISI marked, UL Listed and conforming to BS 6391:2009 Type 1, from 25 mm to 152 mm.
Sizes: 25 mm to 152 mm
Delivery hose for aggressive fire fighting, with a polyester jacket, EPDM lining and an external elastomer coating for heat and abrasion resistance. ISI marked, BS 6391:2009 Type 2, from 25 mm to 152 mm.
Sizes: 25 mm to 152 mm
Heavy duty, fully extruded through the weave delivery hose with a ribbed cover, resistant to oil, fuel, chemicals and kinking. ISI marked and UL Listed, from 25 mm to 152 mm.
Sizes: 25 mm to 152 mm
Through the weave delivery hose listed by New Age with the same construction and approvals as Aquasurge: nitrile / PVC rubber compound, ribbed cover, ISI marked and UL Listed, 25 mm to 152 mm.
Sizes: 38 mm, 52 mm, 65 mm
Double jacketed hose for fire brigade and heavy industrial fire fighting where high water pressure is needed, made in accordance with NFPA 1961 and conforming to the UL 19 standard. Sizes 38 mm, 52 mm and 65 mm.
Sizes: 25 mm to 152 mm
Lightweight, self protecting forestry attack hose whose rubberised waterway lets water seep through evenly to wet the jacket. ISI marked, from 25 mm to 152 mm.
A complete delivery hose coupling made to IS 903 with the ISI mark, in bronze (gunmetal) or stainless steel. The website lists it as a push type coupling for 65 mm hose, tested to 21 kg/cm2; the product list gives 63 mm.
Sizes: 63 mm
A spare coupling for landing valves, used to replace a worn or damaged outlet coupling. Size 63 mm, in stainless steel or gunmetal.
Instantaneous male and female coupling pair for 63 mm fire hoses, made as per IS:903 and ISI marked. Available in gunmetal, stainless steel or aluminium.
Sizes: 63 mm
Non-percolating, rubber lined delivery hose with a circular woven synthetic jacket, conforming to IS:636 Type 1 and ISI marked. Supplied in 7.5, 15 and 30 m lengths with IS:903 instantaneous couplings bound with copper wire.
Sizes: 15m, 30m
Rubberised reinforced lined fire hose to IS 636, supplied with stainless steel instantaneous couplings already fitted so it can go straight into a hose box or cabinet. It comes in 15 m and 30 m lengths.
Reinforced rubber lined delivery hose with a fabric reinforced rubber lining and a jacket of 100% synthetic yarn, made to IS 636 Type A and ISI marked. Aaag notes its durability and its heat and abrasion resistance.
