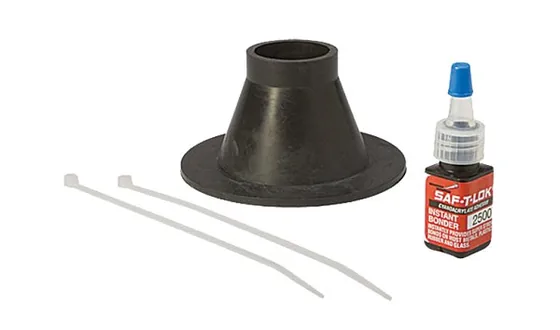

Supplier for TycoA boot that closes the air gap around the clearance hole where a Tyco dry type sprinkler passes through a wall or ceiling, intended mainly for freezer ceilings.
| Specification | Details | Details |
|---|---|---|
| Approvals | The TYCO Model DSB-2 Dry Sprinkler Boot does not require laboratory approval for installation in accordance with the applicable standards of the NATIONAL FIRE PROTECTION ASSOCIATION. The use of the sprinkler boot does not alter any of the applicable laboratory approvals for TYCO Dry Type Sprinklers. | |
| Boot | EPDM* and Rubber | |
| Strap Ties | Nylon | |
| Adhesive | Ethyl Cyano-acrylate based** |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
Carbon steel conversion fitting from a conventional 1 inch male tapered thread to Tyco's female Rapid Install Sprinkler (RIS) connection, typically used to fit an ESFR RIS sprinkler to an existing conventional pipe fitting.
Carbon steel conversion fitting from Tyco's male Rapid Install Sprinkler (RIS) connection to a conventional 1 inch female tapered thread, typically used to fit a standard ESFR sprinkler or pipe nipple to a RIS welded fitting.
Carbon steel conversion fitting from a conventional 1 inch female tapered thread to Tyco's female Rapid Install Sprinkler (RIS) connection, typically used to fit an ESFR RIS sprinkler to an existing pipe nipple.
Two-piece recessed escutcheons for recessed installation of certain Tyco pendent and horizontal sidewall sprinklers in finished ceilings or walls, with separately ordered paint caps that protect the sprinkler while the surface is finished.
Escutcheon plates that hide the clearance holes around pendent and horizontal sidewall sprinklers where the piping runs above a ceiling or behind a wall: the one-piece Style 65 is fixed, the two-piece Style 401 is adjustable.
A two-piece flush escutcheon that hides the ceiling clearance hole around specific Tyco 3/4 inch NPT pendent sprinklers where the piping runs above the ceiling.
Heat activated sprinkler heads for automatic sprinkler systems, ISI marked to IS 15105 and offered in pendant, upright and sidewall types. Each head opens at its fusible bulb rating, 68°C as standard, with other temperatures available.
A flexible hose connector that links the rigid sprinkler branch pipe above a false ceiling to the sprinkler head below it. It takes up building movement, ceiling deflection and installation misalignment, so the head can be positioned without cutting or re-routing pipe.
A brass glass bulb sprinkler hidden behind a white or chrome cover plate, for concealed pipe systems where a smooth ceiling is wanted. It comes in standard and quick response and is UL Listed.
A conventional glass bulb spray sprinkler for pendent, recessed pendent or upright mounting, in standard or quick response. NFPA allows old style sprinklers where special construction features need a unique water distribution.
Kartar's forged brass sprinkler head with a 15 mm screwed connection, a 175 psi rating and a 68°C temperature rating, in pendent, upright and sidewall types. The K908.I series is ISI marked; the K908 series is listed without the mark.
A rosette plate that covers the ceiling opening around a sprinkler head. Kartar lists a fixed plate (K908 FR) and an adjustable plate (K908 AR).
