Fire sprinklers are heat activated heads on a sprinkler pipe network that open over a fire and spray water on it automatically. FPS offers sprinkler heads for offices, hotels, homes, warehouses and cold stores, with flexible drops, escutcheons, guards and spare sprinkler cabinets, from Tyco, Savemax, HD Fire, Kartar Valves, New Age and Balaji Fire Safety in Bhopal and across Madhya Pradesh.
Solder type standard response, standard coverage spray sprinklers for light, ordinary and extra hazard commercial buildings such as banks, hotels, malls, factories, refineries and chemical plants.
A solder type horizontal sidewall spray sprinkler for light and ordinary hazard commercial buildings, fitted along a wall or the side of a beam just below a smooth ceiling.
Solder type quick response, standard coverage spray sprinklers with a K8.0 orifice for light and ordinary hazard buildings such as banks, hotels, malls, schools and hospitals.
Glass bulb standard response, standard coverage spray sprinklers with a 5 mm bulb, for light, ordinary and extra hazard commercial buildings such as banks, hotels, malls, factories, refineries and chemical plants.
K5.6 glass bulb standard response, standard coverage spray sprinklers with a 5 mm bulb, for light, ordinary and extra hazard commercial buildings, with a recessed pendent option for finished ceilings.
Glass bulb standard response sidewall sprinklers with a 5 mm bulb for light and ordinary hazard buildings, fitted along a wall or beam side just below a smooth ceiling.
Glass bulb quick response, standard coverage spray sprinklers with a 3 mm bulb, for light or ordinary hazard buildings such as banks, hotels and shopping malls.
K5.6 glass bulb quick response, standard coverage spray sprinklers with a 3 mm bulb for light or ordinary hazard buildings, with a recessed pendent option for finished ceilings.
Glass bulb quick response sidewall sprinklers with a 3 mm bulb for light and ordinary hazard buildings, fitted along a wall or beam side just below a smooth ceiling.
A small frame quick response, standard coverage pendent spray sprinkler with a 3 mm glass bulb and a metric K-factor of 80.
Glass bulb spray sprinklers with a 10 mm orifice and a 3/8 inch ISO 7 taper thread, offered as TY-B (5 mm bulb, standard response) and TY-FRB (3 mm bulb, quick response) for systems designed to the rules recognised by the approval body.
Glass bulb special response, standard coverage spray sprinklers with a 4 mm bulb and metric K-factors, for systems designed to the installation rules recognised by the approval body, such as VdS.
Sizes: 3 mm bulb, 5 mm bulb
A K5.6 concealed pendent sprinkler with a flat cover plate for architecturally sensitive areas such as hotel lobbies, offices, churches and restaurants, offered with a 3 mm bulb (TY3531, quick response) or a 5 mm bulb (TY3551, standard response).
Sizes: 3 mm bulb, 5 mm bulb
A non-magnetic K5.6 concealed pendent sprinkler for the MR system room of an MRI suite, mounted at the ceiling close to the scanner but not inside the scanner bore.
A solder type concealed pendent sprinkler with an extra large K11.2 orifice, for architecturally sensitive areas where water pressure is limited and a higher water density is needed.
A link type K5.6 horizontal sidewall sprinkler hidden in the wall behind a flat cover plate, for light and ordinary hazard rooms such as hotel rooms, dormitories, offices, conference rooms and hospitals.
Glass bulb extended coverage upright and pendent sprinklers with large K11.2 and K14.0 orifices, for light or ordinary hazard occupancies.
Glass bulb extended coverage pendent sprinklers for light hazard rooms, covering up to 400 sq ft each against 225 sq ft for a standard coverage sprinkler.
Quick response K8.0 pendent sprinklers made for long, narrow corridors and hallways in light hazard buildings, with a maximum coverage area of 28 ft by 10 ft per head.
Glass bulb extended coverage pendent sprinklers with a K5.6 orifice for light hazard rooms, covering up to 400 sq ft each against 225 sq ft for a standard coverage sprinkler.
Glass bulb standard response horizontal sidewall sprinklers for ordinary hazard occupancies to NFPA 13, covering up to 16 ft by 20 ft (SW-20) or 16 ft by 24 ft (SW-24) per head.
A solder type concealed pendent sprinkler with a K11.2 orifice and a flat cover plate, for light hazard areas such as hotel lobbies, offices, churches and restaurants where water pressure is limited.
A 3 mm bulb concealed pendent sprinkler with a flat cover plate for light hazard areas such as hotel lobbies, offices, churches and restaurants, with a QREC rating up to 20 ft by 20 ft.
A non-magnetic 3 mm bulb concealed pendent sprinkler for the MR system room of an MRI suite, with a QREC rating up to 20 ft by 20 ft.
A 3 mm bulb concealed pendent sprinkler for long, narrow corridors and hallways in light hazard buildings, with a maximum coverage area of 28 ft by 10 ft.
A 3 mm bulb concealed sidewall sprinkler for light hazard rooms such as hotel rooms, dormitories, offices, conference rooms and hospitals, with a QREC rating up to 16 ft by 16 ft.
A link type concealed sidewall sprinkler with a flat cover plate for light hazard rooms such as hotel rooms, dormitories, offices and hospitals, with QREC ratings up to 16 ft by 24 ft and 18 ft by 22 ft.
A solder type K8.0 extended coverage sidewall sprinkler for hydraulically calculated systems in light hazard buildings such as churches, restaurant seating areas, hotels, schools and offices.
A 3 mm glass bulb extended coverage sidewall sprinkler with a metric K-factor of 80, for systems installed to VdS CEA 4001 and its Annex E under smooth ceilings in light hazard or ordinary hazard group 1.
3 mm glass bulb extended coverage sidewall sprinklers for hydraulically calculated systems in light hazard buildings such as churches, restaurant seating areas, hotels, schools and offices, covering up to 16 ft wide by 24 ft long.
Sizes: 5.6 K-factor
3 mm glass bulb extended coverage sidewall sprinklers for hydraulically calculated systems in light hazard buildings, covering up to 16 ft wide by 24 ft long with the deflector up to 450 mm below the ceiling.

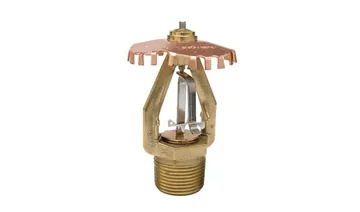

A K25.2 standard response extended coverage upright sprinkler for storage and non-storage areas, listed as a CMDA sprinkler to NFPA 13 and usable as a CMSA sprinkler.
Sizes: 25.2 K-factor

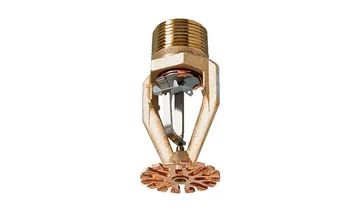

A K25.2 ESFR pendent for ceiling-only protection of high-piled storage, working at lower end head pressures than K14.0 and K16.8 ESFR sprinklers.
Sizes: 16.8 K-factor

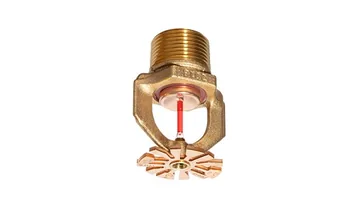

A K16.8 ESFR pendent for ceiling-only protection of high-piled storage, working at lower end head pressures than K14.0 ESFR sprinklers.
Sizes: 16.8 K-factor

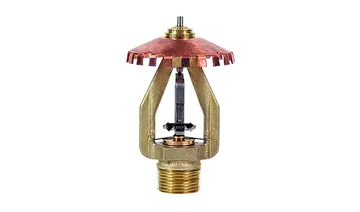

An upright K16.8 ESFR sprinkler, giving designers an upright option to pendent ESFR for ceiling-only protection of high-piled storage.
Sizes: 16.8 K-factor
A K16.8 ESFR pendent for ceiling-only protection of high-piled storage, listed by UL and C-UL and approved by FM and VdS.
Sizes: 14.0 K-factor

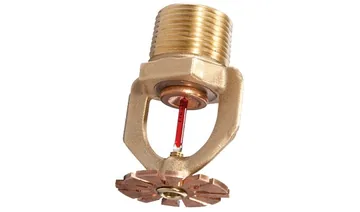

A K14.0 suppression mode ESFR pendent for high-piled storage, which Tyco notes can remove the need for in-rack sprinklers.
Sizes: 14.0 K-factor
A K14.0 ESFR pendent for protecting high-piled storage, offered in 68°C and 93°C ratings.
Sizes: 16.8 K-factor

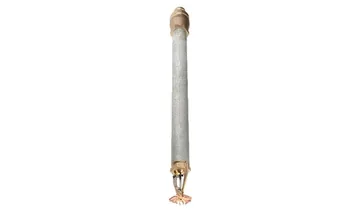

A K16.8 ESFR sprinkler fixed to a dry drop, for box-in-box refrigerated storage fed from a wet pipe system outside the cold area.
Sizes: 22.4 K-factor

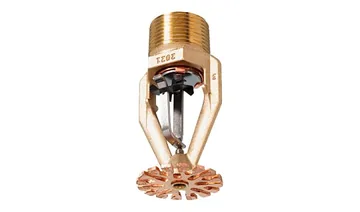

A K22.4 ESFR pendent for ceiling-only protection of high-piled storage, removing in-rack sprinklers for specific materials up to the listed heights.
Sizes: 16.8 K-factor
A K16.8 ESFR pendent in 68°C and 96°C ratings for ceiling-only protection of high-piled storage.
A K16.8 pendent sprinkler opened by an electronic actuator instead of a glass bulb or solder, built as part of Tyco's EAS-1 electronically activated sprinkler system for challenging high pile storage.
Sizes: 25.2 K-factor

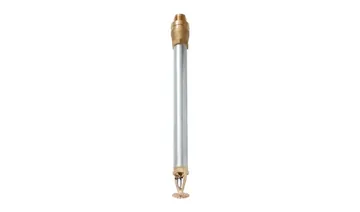

A K25.2 ESFR sprinkler fixed to a dry drop, for box-in-box refrigerated storage fed from a wet pipe system outside the cold area.
Sizes: 16.8 K-factor

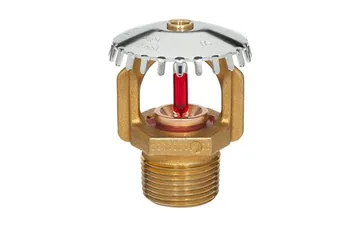

A K16.8 standard response glass bulb upright for NFPA control mode specific application (CMSA) protection of high-piled storage, also usable as an FM storage sprinkler.
A K16.8 standard response glass bulb upright in a 141°C rating, for specific application control mode designs.
Sizes: 16.8 K-factor
K16.8 glass bulb standard spray sprinklers fire tested at full scale over high-piled storage to qualify them in place of K8.0 or K11.2 standard spray sprinklers.
A K33.6 standard response upright storage sprinkler for dry pipe or preaction systems, fire tested at full scale at FM Global for ceiling-only storage of Class III commodities.
Sizes: 11.2 K-factor

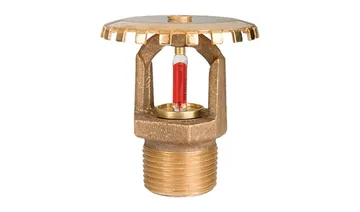

A K11.2 standard response glass bulb large drop upright for NFPA large drop installation criteria over high-piled storage.
Sizes: 16.8 K-factor
A K16.8 standard response upright for a specific end use retrofit, fire tested at full scale at UL LLC for shelf display and rack storage of cartoned Group A plastic.
A K16.8 standard response pendent for a specific end use retrofit, fire tested at full scale at UL LLC for shelf display and rack storage of cartoned Group A plastic.
Sizes: 33.6 K-factor

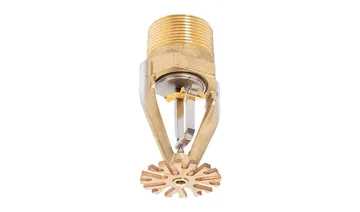

A K33.6 ESFR pendent for ceiling-only protection of tall storage, up to 50 ft of storage under a 55 ft ceiling without in-rack sprinklers.
Sizes: 11.2 K-factor
K11.2 solder type standard spray sprinklers fire tested at full scale over high-piled storage to qualify them in place of K5.6 or K8.0 standard spray sprinklers.
Sizes: 11.2 K-factor
K11.2 glass bulb standard spray sprinklers fire tested at full scale over high-piled storage to qualify them in place of K5.6 or K8.0 standard spray sprinklers.
Sizes: 11.2 K-Factor
A K11.2 glass bulb standard response upright fire tested at full scale over high-piled storage to qualify it in place of K5.6 or K8.0 standard spray sprinklers.
Sizes: 11.2 K-factor
K11.2 glass bulb quick response standard spray sprinklers fire tested at full scale over high-piled storage to qualify them in place of K5.6 or K8.0 standard spray sprinklers.
Sizes: 11.2 K-Factor
A K11.2 glass bulb quick response upright fire tested at full scale over high-piled storage to qualify it in place of K5.6 or K8.0 standard spray sprinklers.
Sizes: 5.6 and 8.0 K-factor

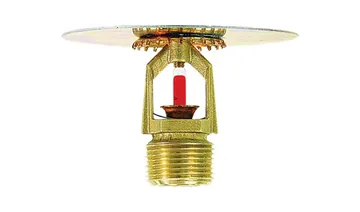

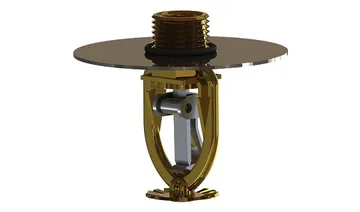

Solder type standard response intermediate level sprinklers for rack storage and open gridded catwalks, shielded from the spray of higher sprinklers.
5 mm glass bulb standard response intermediate level sprinklers for rack storage and open gridded catwalks, shielded from the spray of higher sprinklers.
K5.6, 5 mm glass bulb standard response intermediate level sprinklers for rack storage and open gridded catwalks, shielded from the spray of higher sprinklers.

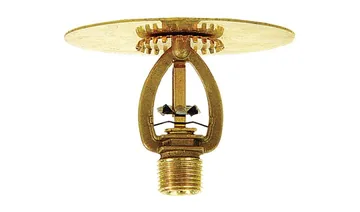

A solder type quick response intermediate level sprinkler for rack storage and open gridded catwalks, shielded from the spray of higher sprinklers.

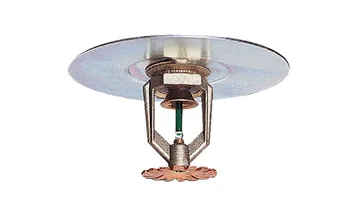

3 mm glass bulb quick response intermediate level sprinklers for rack storage and open gridded catwalks, shielded from the spray of higher sprinklers.
K5.6, 3 mm glass bulb quick response intermediate level sprinklers for rack storage and open gridded catwalks, shielded from the spray of higher sprinklers.
A fast response residential pendent for homes, apartments, dormitories and hotels, listed by UL for both wet and dry pipe systems to NFPA 13D, 13R and 13.
A fast response K5.8 residential pendent for wet pipe systems in homes, apartments, dormitories and hotels to NFPA 13D, 13R and 13.
A fast response K3.0 residential pendent sized for small rooms up to 14 ft by 14 ft, for wet pipe systems to NFPA 13D, 13R and 13.

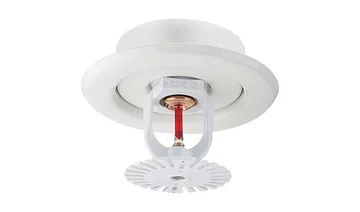

A fast response K4.9 residential pendent for wet pipe systems in homes, apartments, dormitories and hotels to NFPA 13D, 13R and 13.
A large K6.9 fast response residential sprinkler for NFPA 13 designs that need higher flows, also usable in wet pipe NFPA 13D and 13R systems.

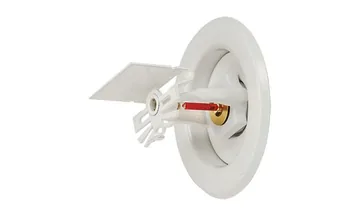

A fast response residential horizontal sidewall for homes, apartments, dormitories and hotels, listed by UL for both wet and dry pipe systems to NFPA 13D, 13R and 13.
A fast response K4.4 residential horizontal sidewall for wet pipe systems in homes, apartments, dormitories and hotels to NFPA 13D, 13R and 13.
A fast response K5.6 residential sidewall for NFPA 13 designs that need higher flows, also usable in wet pipe NFPA 13D and 13R systems.
A fast response K5.8 residential sidewall for NFPA 13 designs that need higher flows, also usable in wet pipe NFPA 13D and 13R systems.

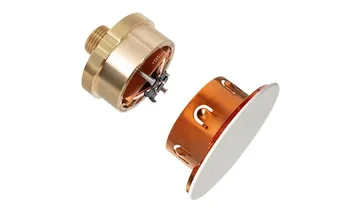

A polymeric K3.0 concealed pendent with a flat cover plate for homes, which must be fitted to plastic sprinkler pipe and fittings in residential systems built to NFPA standards.
A fast response fusible link concealed sidewall for finished walls in homes, apartments, dormitories and hotels, for wet pipe systems to NFPA 13D, 13R and 13.
A glass bulb K4.9 concealed pendent with a flat cover plate for homes, apartments, dormitories and hotels, for wet pipe systems to NFPA 13D, 13R and 13.
A lead-free polymeric K4.9 concealed pendent for homes, apartments, dormitories and hotels, fitted to plastic sprinkler pipe and fittings in wet pipe residential systems built to NFPA standards.
A glass bulb K5.8 concealed pendent with a flat cover plate for homes, apartments, dormitories and hotels, for wet pipe systems to NFPA 13D, 13R and 13.
A fast response concealed pendent with a domed cover plate for homes, apartments, dormitories and hotels, listed by UL for wet and dry pipe systems to NFPA 13D, 13R and 13.

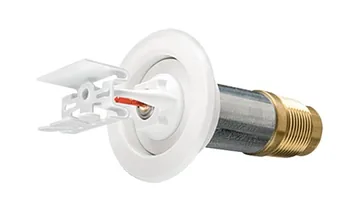

A dry-type fast response residential recessed pendent for drops into unheated areas from wet or dry pipe systems, in homes, apartments, dormitories and hotels to NFPA 13D, 13R and 13.
A dry-type fast response residential sidewall fed from a wet system into an unheated area, for homes, apartments, dormitories and hotels to NFPA 13D, 13R and 13.

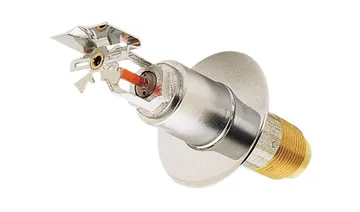

Standard response (5 mm bulb), standard coverage dry-type glass bulb sprinklers for freezer drops, unheated areas and seasonally drained systems.
Standard response (5 mm bulb), standard coverage dry-type sprinklers with a K8.0 orifice, for use in wet pipe, dry pipe or preaction systems where freezing is a risk.
Quick response (3 mm bulb), standard coverage dry-type glass bulb sprinklers for commercial use where a sprinkler or its pipe could freeze.
Quick response (3 mm bulb), standard coverage dry-type glass bulb sprinklers with a K8.0 orifice, for use in wet pipe, dry pipe or preaction systems where freezing is a risk.
Sizes: 3 mm Bulb, 5 mm Bulb
A dry-type concealed pendent with a flat cover plate, typically used as a drop from an unheated attic into rooms where looks matter, such as nursing homes, restaurants and schools.

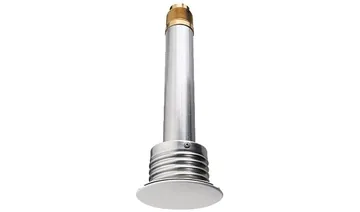

A 3 mm bulb dry-type concealed pendent with a quick response extended coverage (QREC) rating up to 18 ft by 18 ft, for drops from an unheated attic into rooms such as nursing homes, restaurants and schools.
A dry-type extended coverage sidewall sprinkler for light hazard occupancies, typically fed by a horizontal pipe through a wall to protect an unheated area.
Sizes: 11.2 K-factor

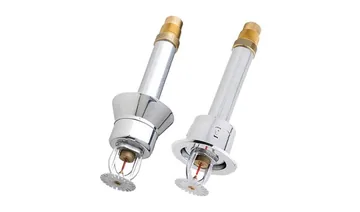

A large K11.2 dry-type pendent sprinkler, standard coverage, for drops from unheated parts of a dry pipe system or from a wet system into freezers.
Sizes: 11.2 K-factor
A K11.2 dry-type extended coverage pendent for light and ordinary hazard occupancies (ECLH and ECOH), for drops into freezers or from unheated parts of a dry pipe system.
Sizes: 11.2 K-factor

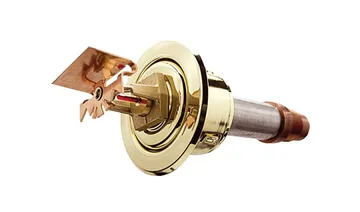

A K11.2 dry-type horizontal sidewall for extended coverage in ordinary hazard occupancies to NFPA 13, typically fed by a pipe through a wall into an unheated area.
Sizes: 3 mm Bulb •, 3 mm Bulb
Corrosion-resistant stainless steel dry-type sprinklers in pendent, sidewall and extended coverage sidewall styles, for wet pipe, dry pipe or preaction systems where freezing is a risk.

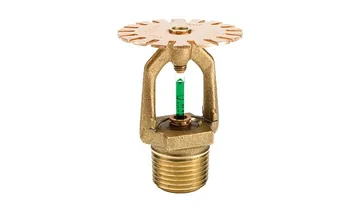

Sprinklers for sloped attic spaces under combustible or non-combustible roofs: BB, SD and HIP are attic sprinklers, and the AP is a combustible concealed space sprinkler used alongside them for areas outside their scope.

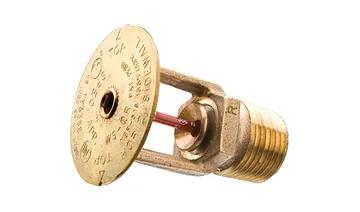

Fast response glass bulb window sprinklers, listed to wet the entire surface of heat strengthened, tempered or ceramic glass windows using closed sprinklers.
A fast response, solder link concealed window sprinkler that sprays water across window glazing in a horizontal pattern, listed to wet the entire surface of heat strengthened, tempered or ceramic glass.
A quick response, upright specific application sprinkler for light hazard combustible and non-combustible concealed spaces, which Tyco states complies with the NFPA 13 criteria for combustible concealed spaces.

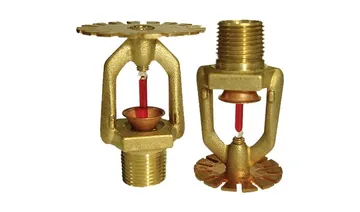

Upright and pendent flat spray sprinklers for systems designed to CEA 4001 or EN 12845, with a flatter pattern than standard spray sprinklers for low clearance above suspended open ceilings and in racks.

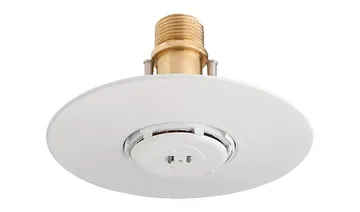

A quick response, standard coverage flush pendent sprinkler with a solder release, for areas such as offices, hospitals, schools, apartments and hotels, approved by VdS for CEA 4001 or EN 12845 systems.
A tamper resistant, standard response, standard coverage fusible solder pendent sprinkler for correctional, detention and mental health care facilities, with a flush design that hides most working parts.

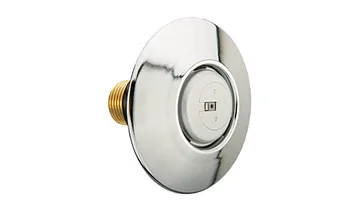

Quick response, tamper resistant pendent and horizontal sidewall sprinklers for correctional, detention and mental health care facilities and other commercial buildings, in standard or extended coverage versions.
A tamper resistant, standard response, standard coverage horizontal sidewall sprinkler for correctional, detention and mental health care facilities, with a flush design that hides most working parts.
Sizes: 5.6K, 1/2 in. NPT, 8.0K, 3/4 in. NPT

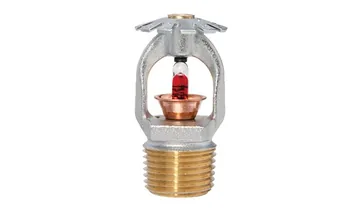

Standard response, standard coverage old style sprinklers with a 5 mm glass bulb, fitted upright or pendent, that send roughly half the water up and half down in a spherical pattern.
A K5.6 standard response, standard coverage old style sprinkler with a 5 mm glass bulb, fitted upright or pendent, giving a spherical pattern with roughly half the water directed up and half down.
Special response, standard coverage conventional sprinklers with a 4 mm glass bulb, for systems designed to the installation rules of the approving body such as VdS, fitted upright or pendent.
Sizes: 5.6K, 1/2 in. NPT, 8.0K, 3/4 in. NPT

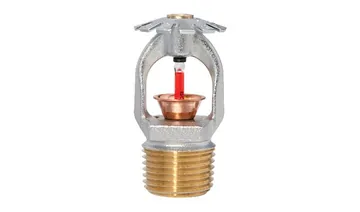

Quick response, standard coverage old style sprinklers with a 3 mm glass bulb, fitted upright or pendent, giving a spherical pattern with roughly half the water up and half down.
A K5.6 quick response, standard coverage old style sprinkler with a 3 mm glass bulb, fitted upright or pendent, giving a spherical pattern with roughly half the water up and half down.

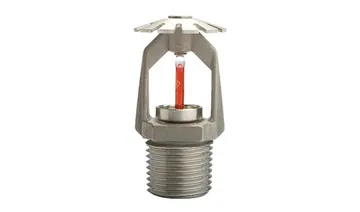

Corrosion resistant versions of the TY-B (5 mm bulb, standard response) and TY-FRB (3 mm bulb, quick response) sprinklers in alternate materials, for commercial occupancies where corrosive atmospheres may exist.

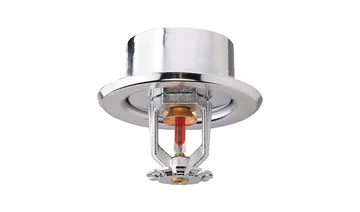

Polyester coated brass versions of the TY-B and TY-FRB sprinklers, made as corrosion resistant sprinklers for commercial occupancies where corrosive atmospheres may exist.
Sizes: 5.6K, 1/2 in. NPT, 8.0K, 3/4 in. NPT
Standard response, standard coverage solder type pendent sprinklers in stainless steel, for light, ordinary and extra hazard commercial occupancies with a finished ceiling, such as restaurants, food service production, factories, refineries and chemical plants.
Standard response, standard coverage upright and pendent sprinklers with an 11 mm glass bulb, for light, ordinary or extra hazard commercial occupancies where high ambient temperatures may occur.

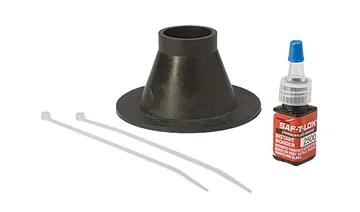

A boot that closes the air gap around the clearance hole where a Tyco dry type sprinkler passes through a wall or ceiling, intended mainly for freezer ceilings.
Carbon steel conversion fitting from a conventional 1 inch male tapered thread to Tyco's female Rapid Install Sprinkler (RIS) connection, typically used to fit an ESFR RIS sprinkler to an existing conventional pipe fitting.
Carbon steel conversion fitting from Tyco's male Rapid Install Sprinkler (RIS) connection to a conventional 1 inch female tapered thread, typically used to fit a standard ESFR sprinkler or pipe nipple to a RIS welded fitting.
Carbon steel conversion fitting from a conventional 1 inch female tapered thread to Tyco's female Rapid Install Sprinkler (RIS) connection, typically used to fit an ESFR RIS sprinkler to an existing pipe nipple.

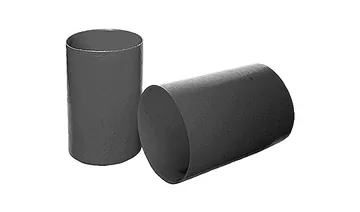

Two-piece recessed escutcheons for recessed installation of certain Tyco pendent and horizontal sidewall sprinklers in finished ceilings or walls, with separately ordered paint caps that protect the sprinkler while the surface is finished.
Escutcheon plates that hide the clearance holes around pendent and horizontal sidewall sprinklers where the piping runs above a ceiling or behind a wall: the one-piece Style 65 is fixed, the two-piece Style 401 is adjustable.
A two-piece flush escutcheon that hides the ceiling clearance hole around specific Tyco 3/4 inch NPT pendent sprinklers where the piping runs above the ceiling.
Guards, shields and guard with shield assemblies that protect Tyco sprinklers from physical damage and from the water spray of higher sprinklers, forming intermediate level sprinkler assemblies.

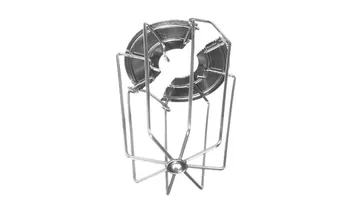

Guards and shields for the Tyco ESFR pendent sprinkler range, for locations where the sprinkler could be damaged or wetted by sprinklers at a higher level.

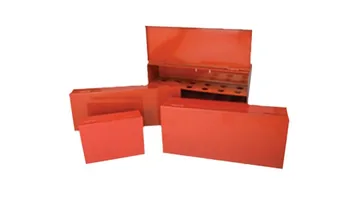

Metal cabinets with hinged covers for keeping an emergency stock of spare sprinklers and a sprinkler wrench on site, as NFPA 13 asks.

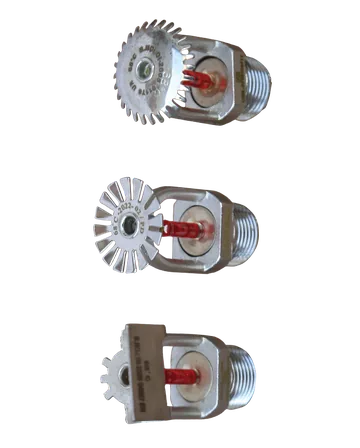

Heat activated sprinkler heads for automatic sprinkler systems, ISI marked to IS 15105 and offered in pendant, upright and sidewall types. Each head opens at its fusible bulb rating, 68°C as standard, with other temperatures available.

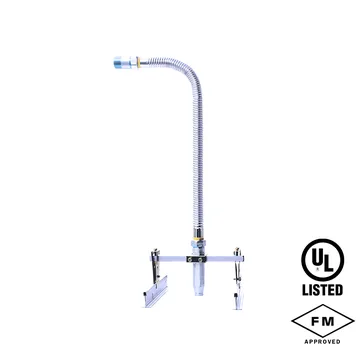

A flexible hose connector that links the rigid sprinkler branch pipe above a false ceiling to the sprinkler head below it. It takes up building movement, ceiling deflection and installation misalignment, so the head can be positioned without cutting or re-routing pipe.
A brass glass bulb sprinkler hidden behind a white or chrome cover plate, for concealed pipe systems where a smooth ceiling is wanted. It comes in standard and quick response and is UL Listed.

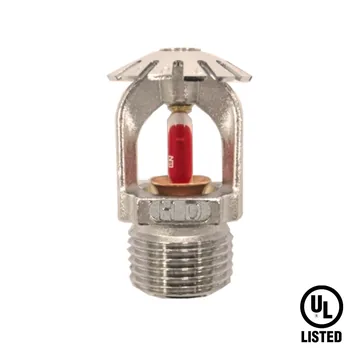

A conventional glass bulb spray sprinkler for pendent, recessed pendent or upright mounting, in standard or quick response. NFPA allows old style sprinklers where special construction features need a unique water distribution.

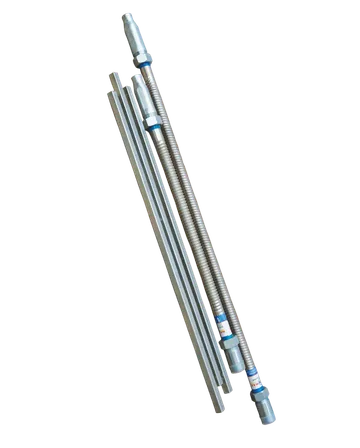

A corrugated stainless steel flexible hose that links the end of the sprinkler pipe to the sprinkler head, supplied with nipple, reducer, square bar and brackets. It lets sprinklers be positioned, relocated and retrofitted easily and is UL Listed and FM Approved.

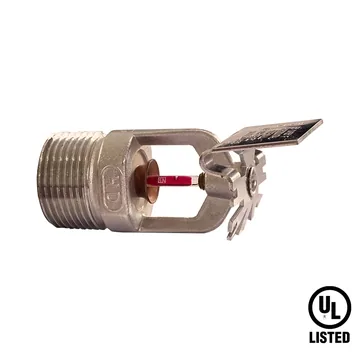

A horizontal sidewall sprinkler with a K-factor of 8 (115 metric) and a ¾ inch connection, in standard and quick response with standard coverage. It can be fitted as a standard or recessed sidewall and is UL Listed.
A small glass bulb spray sprinkler designed for installation along a wall or the side of a beam, just beneath a smooth ceiling. It comes in standard and quick response with standard coverage and is UL Listed and FM Approved.

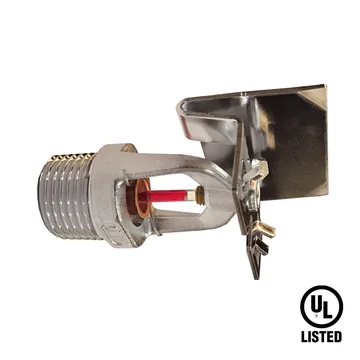

A quick response horizontal sidewall sprinkler with extended coverage, meaning one head protects a larger area than a standard coverage sprinkler. It is offered in K 5.6 and K 8.0, has a chrome finish and is UL Listed.

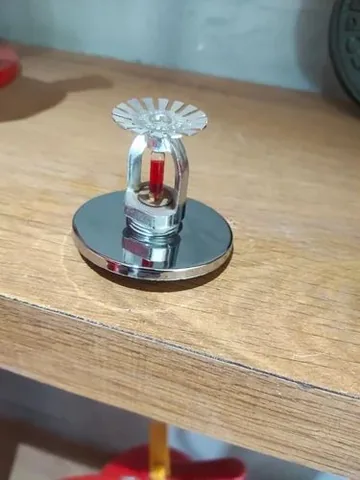

A glass bulb spray sprinkler that hangs down from the pipe, in standard and quick response with standard coverage, for light, ordinary and extra hazard occupancies. It is UL Listed and FM Approved.
A compact glass bulb sprinkler with an extra large K 11.2 orifice that delivers the flows needed for light and ordinary hazard densities at lower pressures than standard or large orifice sprinklers. It is UL Listed.

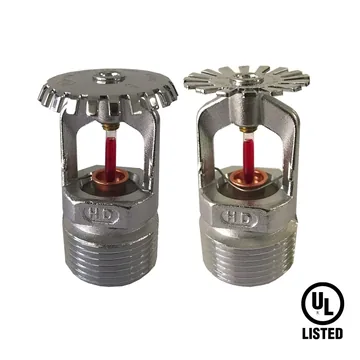

A glass bulb spray sprinkler with a K-factor of 8 (115 metric) and a ¾ inch connection, for pendent, upright or recessed pendent mounting. It comes in standard and quick response and is UL Listed.

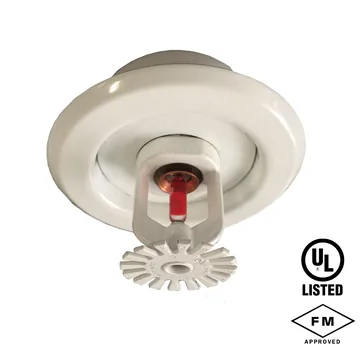

A glass bulb pendent sprinkler fitted with an adjustable or non-adjustable escutcheon, also called a rosette plate, for installation in false ceilings and finished ceilings. It comes in standard or quick response and is UL Listed and FM Approved.

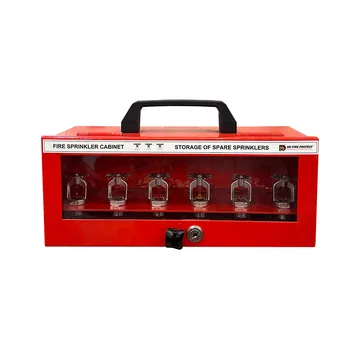

A red powder coated metal cabinet with hinged covers, handle and glass window that keeps an emergency supply of 12 spare sprinklers on site, with a special version for 24. It locks and can be stored, carried to site or wall mounted.

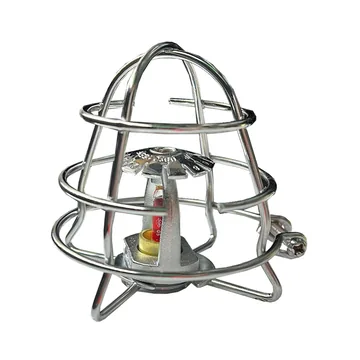

A chrome plated wire cage that encloses the sprinkler to protect it from accidental mechanical damage. It suits pendent and upright sprinklers.
A glass bulb spray sprinkler that points up from the pipe, in standard and quick response with standard coverage, for light, ordinary and extra hazard occupancies. It is UL Listed and FM Approved.
A glass bulb sidewall sprinkler for light and ordinary hazard areas in standard installations, which throws water in a crescent shaped pattern. It is available in standard or quick response, has a chrome plated finish and is UL Listed.
Kartar's forged brass sprinkler head with a 15 mm screwed connection, a 175 psi rating and a 68°C temperature rating, in pendent, upright and sidewall types. The K908.I series is ISI marked; the K908 series is listed without the mark.
A rosette plate that covers the ceiling opening around a sprinkler head. Kartar lists a fixed plate (K908 FR) and an adjustable plate (K908 AR).
A test and drain valve for sprinkler installations, made in stainless steel 304 and rated PN-20. Sizes 25, 32, 40 and 50 mm.
Brass water curtain nozzles with a 1/2 inch BSP thread, listed in a heavy version (K920.WCH) and a medium version (K920.WCM). A water curtain nozzle spreads water in a flat sheet across an opening.
A brass high velocity water spray nozzle with a 3/4 inch BSP thread, listed plain (K920.HV) and with a built-in strainer (K920.HVS).

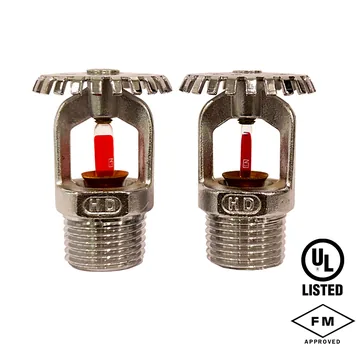

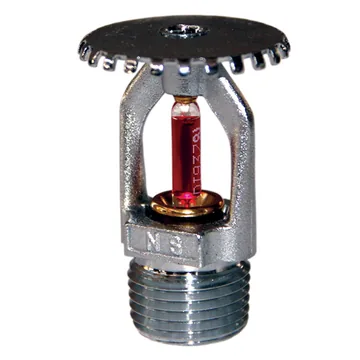

UL Listed bronze upright sprinkler with a quick response element, fitted pointing up from the pipe, with a 1/2 inch NPT inlet.
UL Listed bronze upright sprinkler with a standard response element, fitted pointing up from the pipe, with a 1/2 inch NPT inlet.

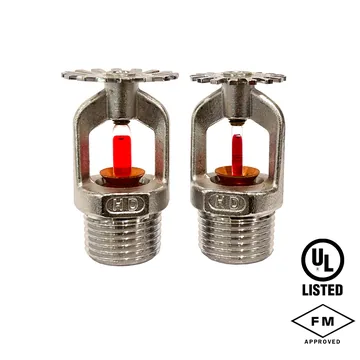

UL Listed bronze pendent sprinkler that hangs down from the pipe, with a quick response element and a 1/2 inch NPT inlet.
UL Listed bronze pendent sprinkler that hangs down from the pipe, with a standard response element and a 1/2 inch NPT inlet.

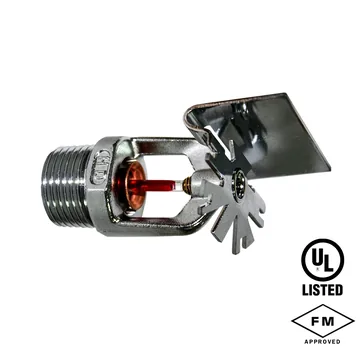

UL Listed bronze sidewall sprinkler, fitted on a wall to throw water across the room, with a quick response element and a 1/2 inch NPT inlet.
UL Listed bronze sidewall sprinkler, fitted on a wall to throw water across the room, with a standard response element and a 1/2 inch NPT inlet.

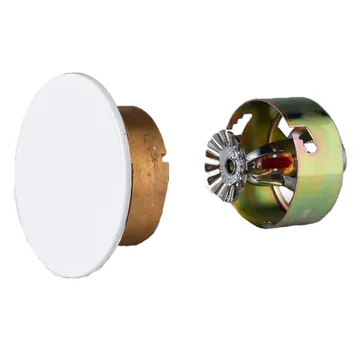

UL Listed bronze concealed sprinkler that sits behind a flat cover plate at ceiling level, with a quick response element; cover plates are supplied.
UL Listed bronze concealed sprinkler that sits behind a flat cover plate at ceiling level, with a standard response element; cover plates are supplied.

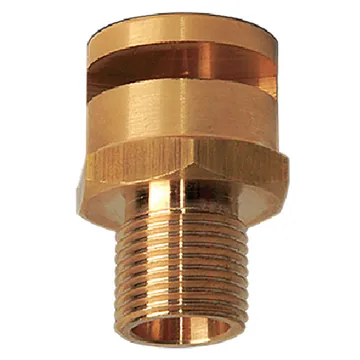

Water spray nozzle for cooling storage tanks, made in forged brass or stainless steel, with a 1/2 inch threaded inlet in BSP, NPT or NH.

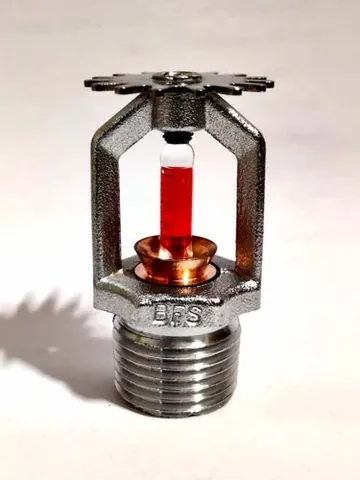

A ceiling mounted brass pendent sprinkler that hangs below the pipe and sprays downward when its bulb reaches 68°C, with a 57°C version also listed. Standard response, ½ inch thread, in natural brass or chrome plated finish.
A pendent sprinkler with a zinc body in silver, rated 68°C with a ½ inch NPT thread, for ceiling installation in commercial, industrial and residential buildings.
A brass upright sprinkler that points up from the pipe, with a ½ inch BSPT or NPT thread and a standard response 5 mm bulb. Balaji lists 68°C, with a 57°C rating on one listing.
A brass sidewall sprinkler with a chrome finish for places where ceiling piping is not possible; it mounts on the wall and throws water out into the room. Rated 68°C, standard response, with a ½ inch connection.
Plugs that fit open Protectospray nozzles and open sprinklers where the orifice needs protecting against insects or a build-up of debris.
A concealed sprinkler with a forged brass body, fitted recessed in the ceiling for a clean finish. Kartar publishes the name and a photo only, so ratings and cover plate details are confirmed on enquiry.
A brass medium velocity water spray nozzle with a 1/2 inch BSP thread, used on open water spray systems.
First choose the head type by where it is mounted. Pendent (pendant) heads face down from the pipe and suit false ceiling and open ceiling areas, upright heads face up on exposed pipework in warehouses, sheds and plant areas, and sidewall heads fit on a wall and spray across the room where ceiling piping is not possible; all six brands list these three types. For finished interiors there are recessed pendents with an adjustable escutcheon, and concealed pendents hidden behind a flat cover plate from Tyco (Royal Flush II and others), HD Fire, Kartar Valves and New Age. Kartar Valves rosette plates and Tyco escutcheons in Styles 10 to 70 give a neat finish around the ceiling cut out.
Next set the response, temperature rating and K factor to the design. Standard response heads use a 5 mm glass bulb and quick response heads a 3 mm bulb, which opens sooner; Tyco also lists a 4 mm special response bulb for VdS designs, and solder link heads. Pick a rating above the highest normal ceiling temperature: 68°C is the rating listed by Savemax (as standard), Kartar Valves and Balaji Fire Safety, HD Fire lists 57°C, 68°C, 79°C and 93°C, Tyco glass bulb heads run from 57°C to 182°C, and Tyco Quartzoid high temperature heads are rated 204°C, 260°C or 343°C. The K factor sets the flow at a given pressure: K5.6 (80 metric) heads with a ½ inch thread cover most light and ordinary hazard areas, while K8.0, K11.2 and larger heads, mostly with ¾ inch threads, give more water at lower pressure. HD Fire lists K5.6, K8 and K11.2 heads, and Tyco runs from K3.0 residential heads up to K33.6 storage heads.
Warehouses, cold stores and special areas need specific heads, which Tyco lists in depth. For high-piled and rack storage there are ESFR pendent and upright heads from K14.0 to K33.6, which for specified commodities and heights avoid in-rack sprinklers, plus control mode (CMSA) and K11.2 and K16.8 storage heads, and intermediate level heads with guards and shields for in-rack use. Unheated areas and cold stores use dry type heads (Tyco DS series and dry ESFR) with the DSB-2 boot for freezer ceilings. Tyco also lists residential, extended coverage, attic, window, institutional (tamper resistant), MRI room and corrosion resistant heads in stainless steel, SMO, titanium or polyester coated brass, and HD Fire offers extended coverage sidewall heads.
Finally check approvals and accessories. Savemax heads are ISI marked to IS 15105 and Kartar Valves K908.I heads are ISI marked; New Age heads are UL Listed; HD Fire heads are UL Listed, several also FM Approved; and Tyco lists UL, C-UL, FM, LPCB, VdS or CE by model. Balaji Fire Safety heads are listed without approval details, so FPS confirms them on enquiry. Where the branch pipe runs above a false ceiling, a flexible drop links it to the head below without cutting or re-routing pipe: Savemax drops come in 700, 1000, 1200, 1500 and 1800 mm and are BIS/ISI marked, and the HD Fire HD-FLEX stainless steel drop is UL Listed and FM Approved. Add guards where heads can be knocked (HD Fire, Tyco), a spare sprinkler cabinet (HD Fire for 12 or 24 heads, Tyco for 6 or 12), and Kartar Valves SS 304 test and drain valves in 25 to 50 mm.
We handle your complete Fire NOC application and renewal: documentation, liaison with the MP Fire Department and compliance support.
Try "landing valve", "Apollo call point", "9 kg ABC" or a model code.
No products yet. Tap "Add to quote" on any product, then send the whole list to us in one WhatsApp message.
