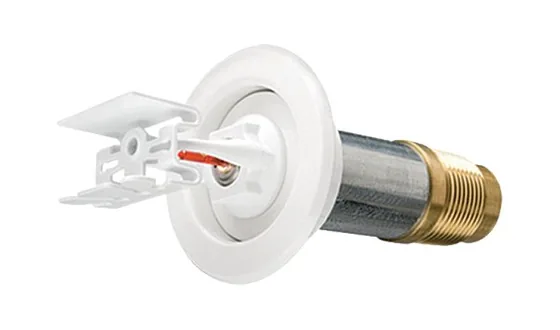

Supplier for TycoA dry-type fast response residential recessed pendent for drops into unheated areas from wet or dry pipe systems, in homes, apartments, dormitories and hotels to NFPA 13D, 13R and 13.
Standards and approvals: UL and C-UL Listed, Certified to all requirements of NSF/ANSI 61
| Specification | K = 4.9 GPM/psi½ (70,6 LPM/bar½) | TY2235 |
|---|---|---|
| Inlet | Brass | |
| Plug | Brass | |
| Yoke | Stainless Steel | |
| Casing | Galvanized Steel | |
| Insert | Bronze | |
| Bulb Seat | Stainless Steel | |
| Bulb | Glass | |
| Compression Screw | Brass | |
| Deflector | Brass | |
| Frame | Brass | |
| Guide Tube | Brass | |
| Water Tube | Stainless Steel | |
| Bushing | Brass | |
| Plug Spring | Stainless Steel | |
| SIN | TY2235 | |
| K-factor | 4.9 K-factor | |
| Inlet Thread Connections | 1 in. NPT ISO 7-R1 | |
| Discharge Coefficient | K = 4.9 GPM/psi½ (70,6 LPM/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Finishes | Natural Brass, Signal White Polyester Coated, or Chrome Plated Order Lengths Minimum: 3-3/4 in. (95,3 mm) Maximum: 24 in. (609,6 mm) |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
