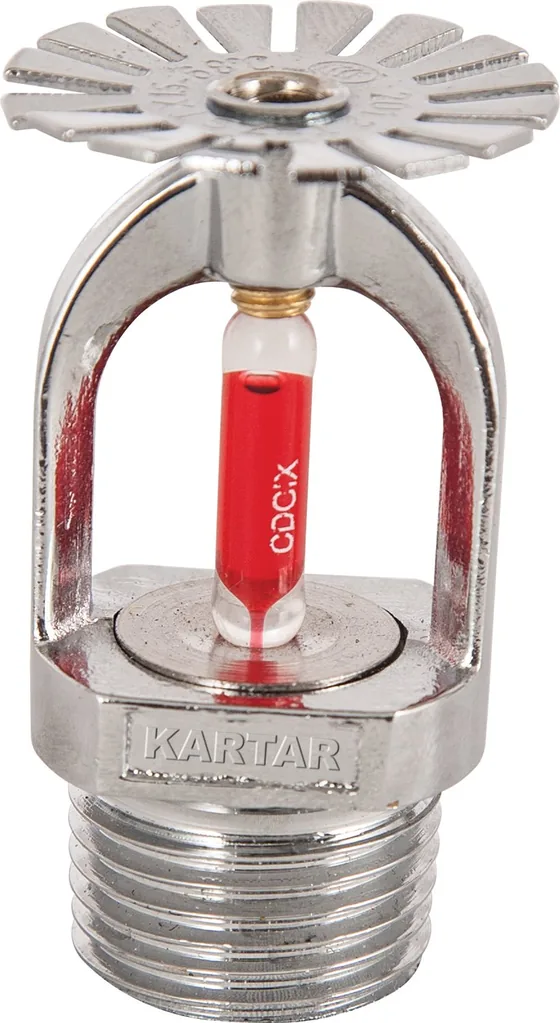

Authorised distributor for Kartar ValvesKartar's forged brass sprinkler head with a 15 mm screwed connection, a 175 psi rating and a 68°C temperature rating, in pendent, upright and sidewall types. The K908.I series is ISI marked; the K908 series is listed without the mark.
| Specification | Details | K908.I BP | K908.I BU | K908.I BS | K908 BP | K908 BS | K908 BU |
|---|---|---|---|---|---|---|---|
| Type | Pendent | Upright | Sidewall | Pendent | Upright | Side Wall | Pendent | Side Wall | Upright |
| Item Description | KARTAR Forged Brass Sprinkler ISI Marked 15mm Screwed in 175 Psi, 68°C rating | KARTAR Forged Brass Sprinkler ISI Marked 15mm Screwed in 175 Psi, 68°C rating | KARTAR Forged Brass Sprinkler ISI Marked 15mm Screwed in 175 Psi, 68°C rating | KARTAR Forged Brass Sprinkler 15mm Screwed in 175 Psi, 68 Deg rating. | KARTAR Forged Brass Sprinkler 15mm Screwed in 175 Psi, 68 Deg rating. | KARTAR Forged Brass Sprinkler 15mm Screwed in 175 Psi, 68 Deg rating. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
A concealed sprinkler with a forged brass body, fitted recessed in the ceiling for a clean finish. Kartar publishes the name and a photo only, so ratings and cover plate details are confirmed on enquiry.
A rosette plate that covers the ceiling opening around a sprinkler head. Kartar lists a fixed plate (K908 FR) and an adjustable plate (K908 AR).
A test and drain valve for sprinkler installations, made in stainless steel 304 and rated PN-20. Sizes 25, 32, 40 and 50 mm.
Brass water curtain nozzles with a 1/2 inch BSP thread, listed in a heavy version (K920.WCH) and a medium version (K920.WCM). A water curtain nozzle spreads water in a flat sheet across an opening.
A brass medium velocity water spray nozzle with a 1/2 inch BSP thread, used on open water spray systems.
A brass high velocity water spray nozzle with a 3/4 inch BSP thread, listed plain (K920.HV) and with a built-in strainer (K920.HVS).
Solder type standard response, standard coverage spray sprinklers for light, ordinary and extra hazard commercial buildings such as banks, hotels, malls, factories, refineries and chemical plants.
A solder type horizontal sidewall spray sprinkler for light and ordinary hazard commercial buildings, fitted along a wall or the side of a beam just below a smooth ceiling.
Heat activated sprinkler heads for automatic sprinkler systems, ISI marked to IS 15105 and offered in pendant, upright and sidewall types. Each head opens at its fusible bulb rating, 68°C as standard, with other temperatures available.
A flexible hose connector that links the rigid sprinkler branch pipe above a false ceiling to the sprinkler head below it. It takes up building movement, ceiling deflection and installation misalignment, so the head can be positioned without cutting or re-routing pipe.
A brass glass bulb sprinkler hidden behind a white or chrome cover plate, for concealed pipe systems where a smooth ceiling is wanted. It comes in standard and quick response and is UL Listed.
A conventional glass bulb spray sprinkler for pendent, recessed pendent or upright mounting, in standard or quick response. NFPA allows old style sprinklers where special construction features need a unique water distribution.
