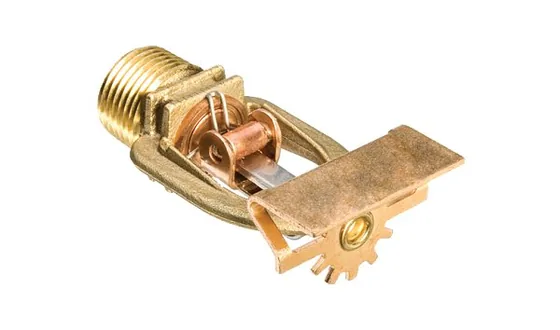

Supplier for TycoSolder type standard response, standard coverage spray sprinklers for light, ordinary and extra hazard commercial buildings such as banks, hotels, malls, factories, refineries and chemical plants.
Standards and approvals: UL and C-UL Listed, FM Approved
| Specification | Upright 5.6K, 1/2 in. NPT | Pendent 5.6K, 1/2 in. NPT | Upright 8.0K, 3/4 in. NPT | Upright 8.0K, 1/2 in. NPT | Details | Details |
|---|---|---|---|---|---|---|
| SIN | TY3111 | TY3211 | TY4111 | TY4811 | ||
| SIN entry as printed | Upright 5.6K, 1/2 in. NPT | Pendent 5.6K, 1/2 in. NPT | Upright 8.0K, 3/4 in. NPT | Upright 8.0K, 1/2 in. NPT | ||
| Orientation | Upright | Pendent | Upright | Upright | ||
| K-factor | 5.6K | 5.6K | 8.0K | 8.0K | ||
| Thread | 1/2 in. NPT | 1/2 in. NPT | 3/4 in. NPT | 1/2 in. NPT | ||
| Response | Standard Response | Standard Response | Standard Response | Standard Response | ||
| Discharge Coefficient | K=5.6 gpm/psi½ (80,6 Lpm/bar½) | K=5.6 gpm/psi½ (80,6 Lpm/bar½) | K=8.0 gpm/psi½ (115,2 Lpm/bar½) | K=8.0 gpm/psi½ (115,2 Lpm/bar½) | ||
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | ||
| Temperature Ratings | See Tables A and B | See Tables A and B | See Tables A and B | See Tables A and B | ||
| Finishes | Sprinkler: See Tables A and B | Sprinkler: See Tables A and B | Sprinkler: See Tables A and B | Sprinkler: See Tables A and B | ||
| Recessed Escutcheon | White Coated, Chrome Plated, or Brass Plated | |||||
| Frame | Brass | |||||
| Sealing Button | Bronze w/TEFLON | |||||
| Ejection Spring | Stainless Steel | |||||
| Strut | MONEL | |||||
| Hook | Bronze/MONEL | |||||
| Deflector | Bronze | |||||
| Fusible Element | Solder, Copper, Stainless Steel |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
