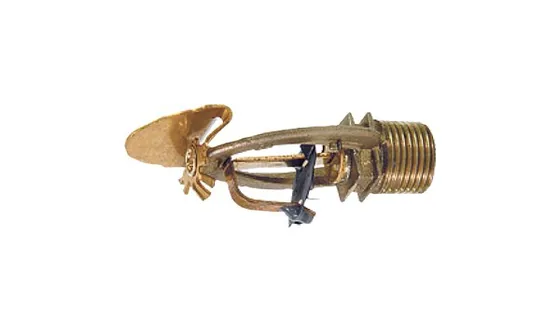

Supplier for TycoSolder type quick response, standard coverage spray sprinklers with a K8.0 orifice for light and ordinary hazard buildings such as banks, hotels, malls, schools and hospitals.
Standards and approvals: UL and C-UL Listed, FM Approved, LPCB Approved
| Specification | Upright 8.0K, 3/4 in. NPT | Pendent 8.0K, 3/4 in. NPT | K = 8.0 gpm/psi½ (115,2 Lpm/bar½) |
|---|---|---|---|
| SIN | TY4121 | TY4221 | |
| SIN entry as printed | Upright 8.0K, 3/4 in. NPT | Pendent 8.0K, 3/4 in. NPT | |
| Orientation | Upright | Pendent | |
| K-factor | 8.0K | 8.0K | |
| Thread | 3/4 in. NPT | 3/4 in. NPT | |
| Response | Quick Response | Quick Response | |
| Discharge Coefficient | K = 8.0 gpm/psi½ (115,2 Lpm/bar½) | K = 8.0 gpm/psi½ (115,2 Lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | |
| Temperature Ratings | See Table A | See Table A | |
| Finishes | Sprinkler: See Table A | Sprinkler: See Table A | |
| Frame | Bronze | ||
| Strut | Monel | ||
| Deflector | Bronze | ||
| Hook | Monel | ||
| Link Assembly | Nickel | ||
| Ejection Spring | Inconel | ||
| Button | Bronze | ||
| Seal | TEFLON |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
