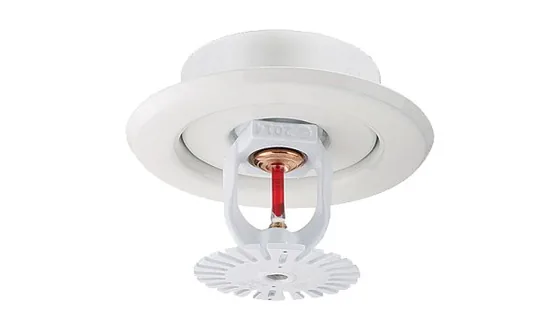

Supplier for TycoTyco Series LFII Residential Pendent and Recessed Pendent Sprinkler (TY2234), K4.9, Wet and Dry Pipe (TFP400)
A fast response residential pendent for homes, apartments, dormitories and hotels, listed by UL for both wet and dry pipe systems to NFPA 13D, 13R and 13.
- K-factor 4.9 gpm/psi½ (70.6 Lpm/bar½)
- Tyco states the number of design sprinklers need not be increased for dry pipe use
- Recessed version with a two-piece Style 20 escutcheon, up to 1/2 in. of total adjustment
- Temperature rating 68°C or 79°C; maximum working pressure 175 psi (12.1 bar)
- Tyco lists UL listing (wet and dry pipe), C-UL listing (wet pipe only), NSF/ANSI 61 certification and Australian WaterMark certification
Standards and approvals: UL Listed, C-UL Listed, WaterMark Certified, Certified to all requirements of NSF/ANSI 61
Specifications
Specifications
| Specification | K=4.9 GPM/psi½ (70,6 LPM/bar½) | TY2234 |
|---|---|---|
| Frame | Brass | |
| Button | Copper | |
| SIN | TY2234 | |
| K-factor | 4.9 K-factor | |
| Discharge Coefficient | K=4.9 GPM/psi½ (70,6 LPM/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Temperature Rating | 155°F (68°C) or 175°F (79°C) | |
| Finishes | Natural Brass, Pure White Polyester Coated, Signal White Polyester Coated, or Chrome Plated |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
