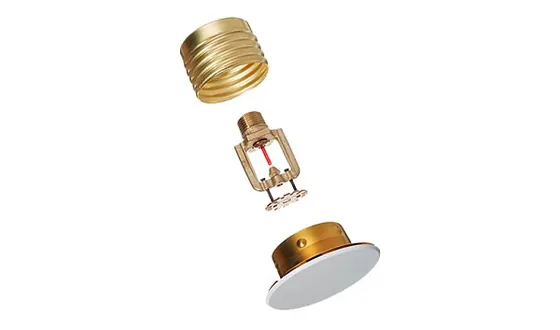

Supplier for TycoTyco Series RFII-MRI Non-Magnetic Extended Coverage Concealed Pendent Sprinkler (TY3537), K5.6 (TFP262)
A non-magnetic 3 mm bulb concealed pendent sprinkler for the MR system room of an MRI suite, with a QREC rating up to 20 ft by 20 ft.
- Found acceptable in a static magnetic field of 7 Tesla or less in non-clinical testing to ASTM F2052
- Mounted at the ceiling of the MR system room, not inside the scanner bore
- Two-piece design with 1/2 in. of vertical adjustment
- 68°C sprinkler with a 59°C plate, or 93°C sprinkler with a 74°C plate
- Maximum working pressure 175 psi (12.1 bar)
- Tyco lists UL and C-UL listing
Standards and approvals: UL and C-UL Listed
Specifications
Specifications
| Specification | K= 5.6 GPM/psi½ (80,6 LPM/bar½) | TY3537 |
|---|---|---|
| Adjustment | 1/2 in. (12,7 mm) | |
| Frame | Bronze | |
| Support Cup | Brass | |
| Guide Pins | Stainless Steel | |
| Deflector | Bronze | |
| Compression Screw | Brass | |
| Blub | Glass | |
| Cap | Bronze or Copper | |
| SIN | TY3537 | |
| K-factor | 5.6 K-factor | |
| Response | Quick Response | |
| Discharge Coefficient | K= 5.6 GPM/psi½ (80,6 LPM/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Temperature Rating | 155°F (68°C) Sprinkler/139°F (59°C) Plate 200°F (93°C) Sprinkler/165°F (74°C) Plate | |
| Finishes | See the Ordering Procedure section |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
