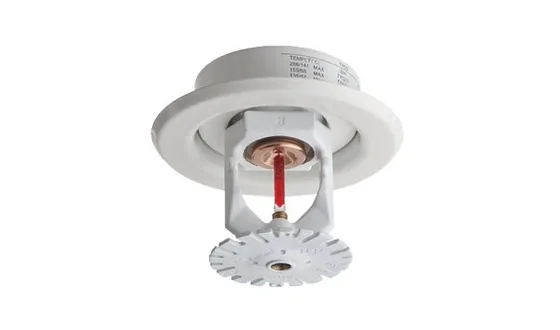

Supplier for TycoGlass bulb extended coverage upright and pendent sprinklers with large K11.2 and K14.0 orifices, for light or ordinary hazard occupancies.
Standards and approvals: UL and C-UL Listed, FM Approved
| Specification | Upright, 11.2K | Pendent, 11.2K | Upright, 14.0K | Pendent, 14.0K | Details |
|---|---|---|---|---|---|
| SIN | TY5137 | TY5237 | TY6137 | TY6237 | |
| SIN entry as printed | Upright, 11.2K | Pendent, 11.2K | Upright, 14.0K | Pendent, 14.0K | |
| Orientation | Upright | Pendent | Upright | Pendent | |
| K-factor | 11.2K | 11.2K | 14.0K | 14.0K | |
| Pipe Thread Connection | 3/4 in. NPT | 3/4 in. NPT | 3/4 in. NPT | 3/4 in. NPT | |
| Discharge Coefficients | K = 11.2 GPM/psi½ (161,3 LPM/bar½) | K = 11.2 GPM/psi½ (161,3 LPM/bar½) | K = 14.0 GPM/psi½ (201,6 LPM/bar½) | K = 14.0 GPM/psi½ (201,6 LPM/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | |
| Temperature Ratings | See Table A | See Table A | See Table A | See Table A | |
| Finish | Sprinkler: See Table A Recessed or Flush Escutcheon: White-Coated, Chrome-Plated, and Brass-Plated | Sprinkler: See Table A Recessed or Flush Escutcheon: White-Coated, Chrome-Plated, and Brass-Plated | Sprinkler: See Table A Recessed or Flush Escutcheon: White-Coated, Chrome-Plated, and Brass-Plated | Sprinkler: See Table A Recessed or Flush Escutcheon: White-Coated, Chrome-Plated, and Brass-Plated | |
| Frame | Bronze | ||||
| Button | Bronze | ||||
| Sealing Assembly | Beryllium Nickel w/TEFLON | ||||
| Bulb | Glass (3 mm) | ||||
| Compression Screw | Bronze | ||||
| Deflector | Brass |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
