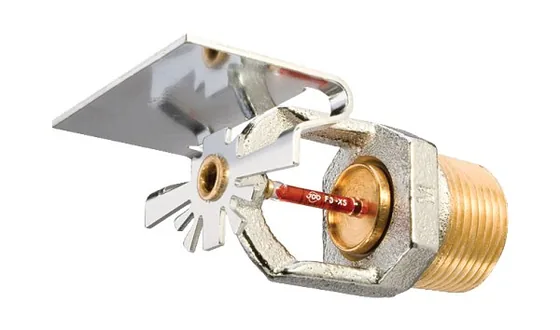

Supplier for TycoTyco Model SW-20 and SW-24 Extended Coverage Ordinary Hazard Horizontal Sidewall Sprinklers, K11.2, Standard Response (TFP230)
Glass bulb standard response horizontal sidewall sprinklers for ordinary hazard occupancies to NFPA 13, covering up to 16 ft by 20 ft (SW-20) or 16 ft by 24 ft (SW-24) per head.
- K-factor 11.2 gpm/psi½ (161.3 Lpm/bar½)
- Coverage of up to 320 sq ft (SW-20) or 384 sq ft (SW-24), against 100 sq ft for a standard coverage sidewall in ordinary hazard
- Temperature ratings: SW-20 at 68°C or 93°C, SW-24 at 93°C
- Maximum working pressure 175 psi (12.1 bar)
- Tyco lists UL and C-UL listing; polyester coated versions are listed as corrosion-resistant
Standards and approvals: UL and C-UL Listed
Specifications
Specifications
| Specification | K= 11.2 gpm/psi½ (161,3 Lpm/bar½) | SW-20 | SW-24 |
|---|---|---|---|
| SIN | TY5332 | TY5337 | |
| SIN entry as printed | SW-20 | SW-24 | |
| K-factor | 11.2 K-factor | 11.2 K-factor | |
| Response | Standard Response | Standard Response | |
| Discharge Coefficient | K= 11.2 gpm/psi½ (161,3 Lpm/bar½) | K= 11.2 gpm/psi½ (161,3 Lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | |
| Temperature Rating | SW-20: 155°F (68°C) and 200°F (93°C) SW-24: 200°F (93°C) | SW-20: 155°F (68°C) and 200°F (93°C) SW-24: 200°F (93°C) | |
| Finishes | See Table B | See Table B |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
