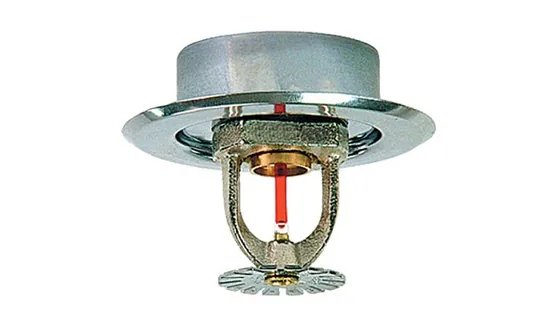

Supplier for TycoTyco Series EC-8 Extended Coverage Light Hazard Pendent and Recessed Pendent Sprinklers, K8.0 (TFP223)
Glass bulb extended coverage pendent sprinklers for light hazard rooms, covering up to 400 sq ft each against 225 sq ft for a standard coverage sprinkler.
- K-factor 8.0 gpm/psi½ (115.2 Lpm/bar½), 3/4 in. NPT thread
- For systems designed to installation rules such as NFPA 13
- Recessed version with a two-piece Style 30 escutcheon (up to 1/2 in. of adjustment) or Style 40 (3/4 in.)
- Temperature ratings 57°C and 68°C
- Maximum working pressure 175 psi (12.1 bar)
- Tyco lists UL and C-UL listing and FM approval
Standards and approvals: UL and C-UL Listed, FM Approved
Specifications
Specifications
| Specification | Pendent, 8.0K | K=8.0 gpm/psi½ (115,2 lpm/bar½) |
|---|---|---|
| SIN | TY4232 | |
| SIN entry as printed | Pendent, 8.0K | |
| Orientation | Pendent | |
| K-factor | 8.0K | |
| Pipe Thread Connection | 3/4 in. NPT | |
| Discharge Coefficients | K=8.0 gpm/psi½ (115,2 lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Temperature Ratings | 135°F (57°C) 155°F (68°C) Note: For approval information, see Table A. | |
| Finish | Sprinkler: See Table A | |
| Recessed Escutcheon | Natural Brass, Signal White, Chrome Plated | |
| Frame | Bronze | |
| Button | Bronze |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
