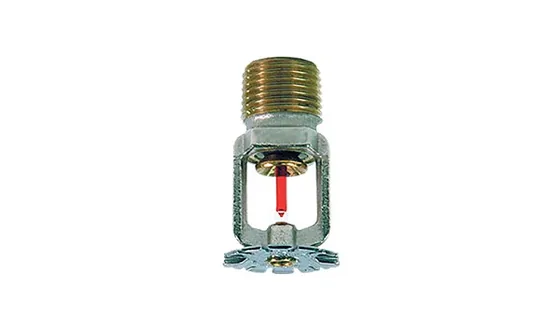

Supplier for TycoTyco Series EC-5 Extended Coverage Light Hazard Pendent and Recessed Pendent Sprinklers, K5.6 (TFP228)
Glass bulb extended coverage pendent sprinklers with a K5.6 orifice for light hazard rooms, covering up to 400 sq ft each against 225 sq ft for a standard coverage sprinkler.
- K-factor 5.6 gpm/psi½ (80.6 Lpm/bar½), 1/2 inch NPT thread
- For systems designed to installation rules such as NFPA 13
- Recessed version with a two-piece Style 50 escutcheon, up to 3/8 inch of adjustment
- Temperature ratings 57°C and 68°C
- Maximum working pressure 175 psi (12.1 bar)
- Tyco lists UL and C-UL listing and FM approval
Standards and approvals: UL and C-UL Listed, FM Approved
Specifications
Specifications
| Specification | Details | Details | TY3232 |
|---|---|---|---|
| Recessed Escutcheon | Brass Plated, Signal White, or Chrome Plated | ||
| Frame | Bronze | ||
| Button | Bronze | ||
| SIN | TY3232 | ||
| K-factor | 5.6 K-factor | ||
| Pipe Thread Connection | 1/2 inch NPT | ||
| Discharge Coefficients | K = 5.6 GPM/psi½ ( | ||
| Maximum Working Pressure | 175 psi (12,1 bar) | ||
| Temperature Ratings | 135°F (57°C) and 155°F (68°C) | ||
| Finish | Sprinkler: Refer to Table A |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
