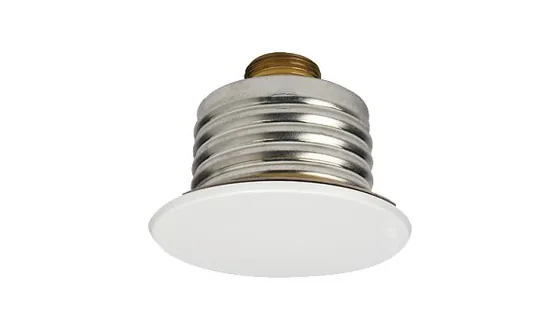

Supplier for TycoTyco Model ELOC Extended Coverage Extra Large Orifice Concealed Pendent Sprinkler, K11.2 (TFP250)
A solder type concealed pendent sprinkler with a K11.2 orifice and a flat cover plate, for light hazard areas such as hotel lobbies, offices, churches and restaurants where water pressure is limited.
- Quick response extended coverage (QREC) rating up to 18 ft by 18 ft
- Two-piece design: install and pressure test before the ceiling is finished; 3/4 in. of vertical adjustment
- 71°C sprinkler with a 59°C plate, or 100°C sprinkler with a 74°C plate
- Maximum working pressure 175 psi (12.1 bar)
- Optional silicone air and dust seal
- Tyco lists UL and C-UL listing
Standards and approvals: UL and C-UL Listed
Specifications
Specifications
| Specification | K= 11.2 gpm/psi½ (161,3 Lpm/bar½) | TY5522 |
|---|---|---|
| Adjustment | 3/4 in. (19,1 mm) | |
| Body | Brass | |
| Cap | Bronze | |
| Saddle | Brass | |
| SIN | TY5522 | |
| K-factor | 11.2 K-factor | |
| Discharge Coefficient | K= 11.2 gpm/psi½ (161,3 Lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Temperature Rating | 160°F (71°C) Sprinkler/139°F (59°C) Plate 212°F (100°C) Sprinkler/165°F (74°C) Plate | |
| Finishes | See Ordering Procedure section |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
