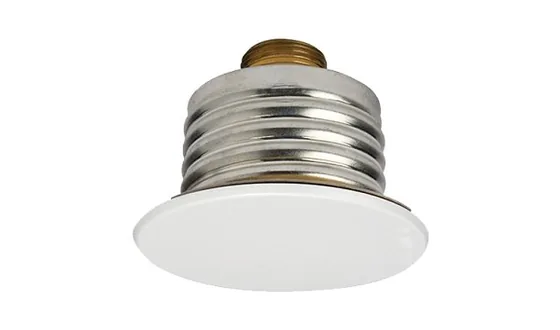

Supplier for TycoTyco Series RFII Royal Flush II Extended Coverage Concealed Pendent Sprinkler (TY3532), K5.6, Quick Response (TFP260)
A 3 mm bulb concealed pendent sprinkler with a flat cover plate for light hazard areas such as hotel lobbies, offices, churches and restaurants, with a QREC rating up to 20 ft by 20 ft.
- K-factor 5.6 gpm/psi½ (80.6 Lpm/bar½)
- Two-piece design: install and pressure test before the ceiling is finished, and lift ceiling panels later without shutting the system down
- 1/2 in. of vertical adjustment and a protective cap that marks the ceiling hole centre
- 68°C sprinkler with a 59°C plate, or 93°C sprinkler with a 74°C plate
- Maximum working pressure 175 psi (12.1 bar)
- Tyco lists UL and C-UL listing
Standards and approvals: UL and C-UL Listed
Specifications
Specifications
| Specification | K = 5.6 gpm/psi½ (80,6 Lpm/bar½) | TY3532 |
|---|---|---|
| Adjustment | 1/2 in. (12,7 mm) | |
| Frame | Bronze | |
| Support Cup | Plated Steel | |
| Guide Pins | Stainless Steel | |
| Deflector | Bronze | |
| Compression Screw | Brass | |
| Bulb | Glass | |
| Cap | Bronze or Copper | |
| SIN | TY3532 | |
| K-factor | 5.6 K-factor | |
| Response | Quick Response | |
| Discharge Coefficient | K = 5.6 gpm/psi½ (80,6 Lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Temperature Rating | 155°F (68°C) Sprinkler, 139°F (59°C) Plate 200°F (93°C) Sprinkler, 165°F (74°C) Plate | |
| Finishes | See the Ordering Procedure section |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
