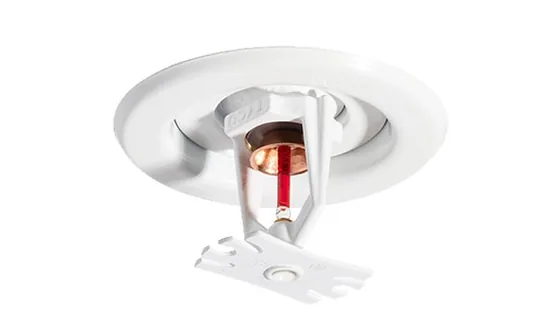

Supplier for TycoTyco Series EC-8C Quick Response Corridor Pendent and Recessed Pendent Sprinklers, K8.0 (TFP226)
Quick response K8.0 pendent sprinklers made for long, narrow corridors and hallways in light hazard buildings, with a maximum coverage area of 28 ft by 10 ft per head.
- Tyco states fewer sprinklers and lower system pressure are needed than with traditional extended coverage sprinklers in corridors
- For systems designed to NFPA 13
- Recessed version with a two-piece Style 30 or Style 40 escutcheon
- Temperature ratings 68°C and 93°C
- Maximum working pressure 250 psi (17.2 bar)
- Tyco lists UL listing; the polyester finish is UL Listed as corrosion-resistant
Standards and approvals: UL Listed
Specifications
Specifications
| Specification | Pendent, 8.0K | K=8.0 gpm/psi½ (115,2 lpm/bar½) |
|---|---|---|
| SIN | TY4282 | |
| SIN entry as printed | Pendent, 8.0K | |
| Orientation | Pendent | |
| K-factor | 8.0K | |
| Pipe Thread Connection | 3/4 in. NPT | |
| Response | Quick Response | |
| Discharge Coefficients | K=8.0 gpm/psi½ (115,2 lpm/bar½) | |
| Maximum Working Pressure | 250 psi (17,2 bar) | |
| Temperature Ratings | 155°F (68°C) 200°F (93°C) | |
| Finish | Sprinkler: Natural Brass, Signal White Polyester Coated, Pure White Polyester Coated, Jet Black Polyester Coated, or Chrome Plated | |
| Recessed Escutcheon | Natural Brass, Signal White, Pure White, Jet Black, Chrome Plated | |
| Frame | Bronze | |
| Button | Brass/Copper |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
