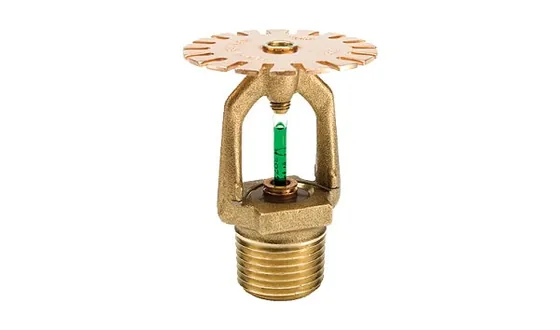

Supplier for TycoSprinklers for sloped attic spaces under combustible or non-combustible roofs: BB, SD and HIP are attic sprinklers, and the AP is a combustible concealed space sprinkler used alongside them for areas outside their scope.
Standards and approvals: UL and C-UL Listed
| Specification | K = 4.2 GPM/psi½ (60,5 LPM/bar½) | K = 5.6 GPM/psi½ (80,6 LPM/bar½) | K = 8.0 GPM/psi½ (115,5 LPM/bar½) | TY2180 | TY2181 | TY2182 | TY2190 | TY3180 | TY3181 | TY3182 | TY3183 | TY3184 | TY3185 | TY3187 | TY3190 | TY4180 | TY4181 | TY4182 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIN | TY2180 | TY2181 | TY2182 | TY2190 | TY3180 | TY3181 | TY3182 | TY3183 | TY3184 | TY3185 | TY3187 | TY3190 | TY4180 | TY4181 | TY4182 | |||
| Pipe Thread Connection | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | 1/2 inch NPT for K=4.2 and 5.6 3/4 inch NPT for K=8.0 | |||
| Discharge Coefficient | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | K = 4.2 GPM/psi½ (60,5 LPM/bar½) K = 5.6 GPM/psi½ (80,6 LPM/bar½) K = 8.0 GPM/psi½ (115,5 LPM/bar½) | |||
| Temperature Rating | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | Intermediate Temperature as follows: 200°F (93°C) for BB (K4.2 and K8.0), HIP, AP 212°F (100°C) for BB (K5.6), SD | |||
| Finish | Natural Brass | Natural Brass | Natural Brass | Natural Brass | Natural Brass | Natural Brass | Natural Brass | Natural Brass | Natural Brass | Natural Brass | Natural Brass | Natural Brass | Natural Brass | Natural Brass | Natural Brass |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
Fast response glass bulb window sprinklers, listed to wet the entire surface of heat strengthened, tempered or ceramic glass windows using closed sprinklers.
A fast response, solder link concealed window sprinkler that sprays water across window glazing in a horizontal pattern, listed to wet the entire surface of heat strengthened, tempered or ceramic glass.
A quick response, upright specific application sprinkler for light hazard combustible and non-combustible concealed spaces, which Tyco states complies with the NFPA 13 criteria for combustible concealed spaces.
Upright and pendent flat spray sprinklers for systems designed to CEA 4001 or EN 12845, with a flatter pattern than standard spray sprinklers for low clearance above suspended open ceilings and in racks.
A quick response, standard coverage flush pendent sprinkler with a solder release, for areas such as offices, hospitals, schools, apartments and hotels, approved by VdS for CEA 4001 or EN 12845 systems.
A tamper resistant, standard response, standard coverage fusible solder pendent sprinkler for correctional, detention and mental health care facilities, with a flush design that hides most working parts.
Heat activated sprinkler heads for automatic sprinkler systems, ISI marked to IS 15105 and offered in pendant, upright and sidewall types. Each head opens at its fusible bulb rating, 68°C as standard, with other temperatures available.
A flexible hose connector that links the rigid sprinkler branch pipe above a false ceiling to the sprinkler head below it. It takes up building movement, ceiling deflection and installation misalignment, so the head can be positioned without cutting or re-routing pipe.
A brass glass bulb sprinkler hidden behind a white or chrome cover plate, for concealed pipe systems where a smooth ceiling is wanted. It comes in standard and quick response and is UL Listed.
A conventional glass bulb spray sprinkler for pendent, recessed pendent or upright mounting, in standard or quick response. NFPA allows old style sprinklers where special construction features need a unique water distribution.
Kartar's forged brass sprinkler head with a 15 mm screwed connection, a 175 psi rating and a 68°C temperature rating, in pendent, upright and sidewall types. The K908.I series is ISI marked; the K908 series is listed without the mark.
A rosette plate that covers the ceiling opening around a sprinkler head. Kartar lists a fixed plate (K908 FR) and an adjustable plate (K908 AR).
