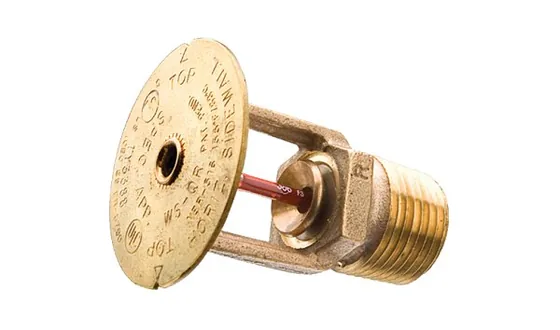

Supplier for TycoA fast response, solder link concealed window sprinkler that sprays water across window glazing in a horizontal pattern, listed to wet the entire surface of heat strengthened, tempered or ceramic glass.
Standards and approvals: UL and C-UL Listed
| Specification | K=5.6 gpm/psi½ (80,6 Lpm/bar½) | TY3498 |
|---|---|---|
| Body | Brass | |
| Cap | Bronze | |
| Saddle | Brass | |
| SIN | TY3498 | |
| K-factor | 5.6 K-factor | |
| Pipe Thread Connection | 1/2 in. NPT | |
| Discharge Coefficient | K=5.6 gpm/psi½ (80,6 Lpm/bar½) | |
| Temperature Ratings | • 160°F (71°C) Sprinkler with 139°F (59°C) Cover Plate • 212°F (100°C) Sprinkler with 165°F (74°C) Cover Plate | |
| Finish | See Ordering Procedure section |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
