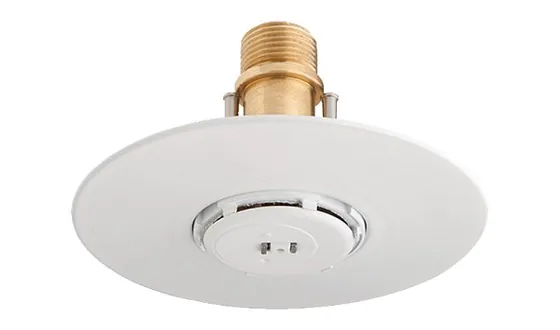

Supplier for TycoA quick response, standard coverage flush pendent sprinkler with a solder release, for areas such as offices, hospitals, schools, apartments and hotels, approved by VdS for CEA 4001 or EN 12845 systems.
Standards and approvals: VdS Approved
| Specification | K=5.6 GPM/psi½) | TY3200 |
|---|---|---|
| Frame | Brass | |
| Deflector Assembly | Bronze | |
| SIN | TY3200 | |
| K-factor | 80 K-factor | |
| Response | Quick Response | |
| Discharge Coefficient | 80,6 LPM/bar½ (K=5.6 GPM/psi½) | |
| Maximum Working Pressure | 12,1 bar (175 psi) | |
| Temperature Rating | 74°C (165°F) | |
| Finishes | Sprinkler: White/Gray Escutcheon: White/Gray |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
