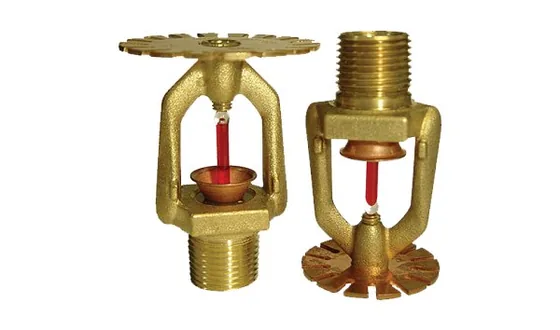

Supplier for TycoUpright and pendent flat spray sprinklers for systems designed to CEA 4001 or EN 12845, with a flatter pattern than standard spray sprinklers for low clearance above suspended open ceilings and in racks.
Standards and approvals: VdS Approved, LPCB Approved
| Specification | Details | TY1136 | TY1146 | TY1156 | TY1236 | TY1246 | TY1256 | TY3136 | TY3146 | TY3156 | TY3236 | TY3246 | TY3256 | TY4136 | TY4146 | TY4156 | TY4236 | TY4246 | TY4256 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame | Bronze | ||||||||||||||||||
| Button | Bronze/Copper | ||||||||||||||||||
| SIN | TY1136 | TY1146 | TY1156 | TY1236 | TY1246 | TY1256 | TY3136 | TY3146 | TY3156 | TY3236 | TY3246 | TY3256 | TY4136 | TY4146 | TY4156 | TY4236 | TY4246 | TY4256 | |
| Discharge Coefficient | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | K=57 Lpm/bar½ K=80 Lpm/bar½ K=115 Lpm/bar½ | |
| Maximum Working Pressure | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | 12,1 bar | |
| Finishes | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate | Sprinklers: Natural Brass Guards: Red Painted / Zinc Chromate Shields: Zinc Chromate |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
