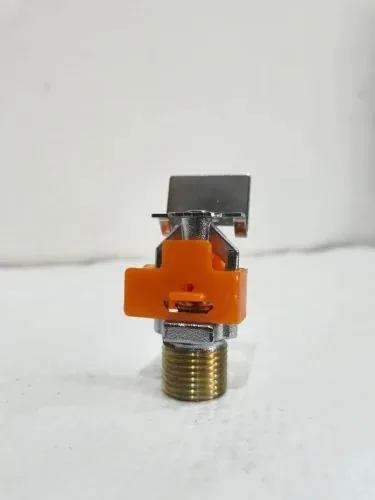

Dealer for Balaji Fire SafetyA brass sidewall sprinkler with a chrome finish for places where ceiling piping is not possible; it mounts on the wall and throws water out into the room. Rated 68°C, standard response, with a ½ inch connection.
| Specification | Details | Details | Details | Details | Details | 43 |
|---|---|---|---|---|---|---|
| Temperature Rating | 68 Degree Celsius | 68 C | 68 C | 68 Degree | 68 Degree Celsius | |
| Material | Brass | Brass | Brass | |||
| Color | Natural Brass | Silver | ||||
| Features | Quick Response, Uniform Water Discharge, Corrosion Resistant, Automatic Fire Suppression | |||||
| Country of Origin | Made in India | Made in India | ||||
| Fire Sprinkler | BFS Make, K Factor K-80 / K-115, ½” BSP / NPT Thread, Standard Response, Deflector Included | |||||
| Response Type | Standard Response | Standard Response | Standard Response | |||
| Connection Size | 1/2 inch | 1/2 inch | ||||
| Mounting Orientation | Vertical | |||||
| Bulb Size | 3 mm | 3 mm | 5 mm | |||
| Finish | Brass | Brass | ||||
| K Factor | NO K FACTOR | |||||
| Max Working Pressure | 12 bar | |||||
| Mounting Type | Ceiling Mounted | |||||
| Sprinkle Type | Pendent | |||||
| Brand | BFS | |||||
| MAKE | BFS | |||||
| Item Code | 43 |
Specifications as published by Balaji Fire Safety. Please confirm the exact model with us before ordering.
A ceiling mounted brass pendent sprinkler that hangs below the pipe and sprays downward when its bulb reaches 68°C, with a 57°C version also listed. Standard response, ½ inch thread, in natural brass or chrome plated finish.
A pendent sprinkler with a zinc body in silver, rated 68°C with a ½ inch NPT thread, for ceiling installation in commercial, industrial and residential buildings.
A brass upright sprinkler that points up from the pipe, with a ½ inch BSPT or NPT thread and a standard response 5 mm bulb. Balaji lists 68°C, with a 57°C rating on one listing.
A brass medium velocity spray nozzle with a ½ inch thread for water spray systems, listed at 6 bar and supplied 12 pieces to a box.
Solder type standard response, standard coverage spray sprinklers for light, ordinary and extra hazard commercial buildings such as banks, hotels, malls, factories, refineries and chemical plants.
A solder type horizontal sidewall spray sprinkler for light and ordinary hazard commercial buildings, fitted along a wall or the side of a beam just below a smooth ceiling.
Heat activated sprinkler heads for automatic sprinkler systems, ISI marked to IS 15105 and offered in pendant, upright and sidewall types. Each head opens at its fusible bulb rating, 68°C as standard, with other temperatures available.
A flexible hose connector that links the rigid sprinkler branch pipe above a false ceiling to the sprinkler head below it. It takes up building movement, ceiling deflection and installation misalignment, so the head can be positioned without cutting or re-routing pipe.
A brass glass bulb sprinkler hidden behind a white or chrome cover plate, for concealed pipe systems where a smooth ceiling is wanted. It comes in standard and quick response and is UL Listed.
A conventional glass bulb spray sprinkler for pendent, recessed pendent or upright mounting, in standard or quick response. NFPA allows old style sprinklers where special construction features need a unique water distribution.
