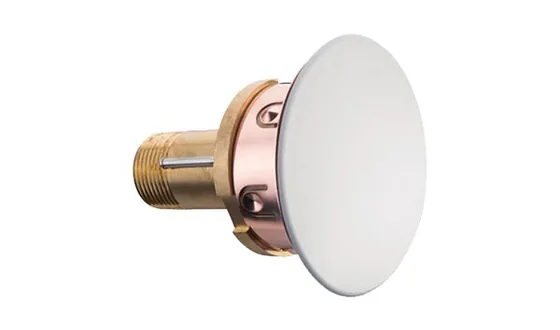

Supplier for TycoTyco Model RFIII Flat Plate Concealed Horizontal Extended Coverage Sidewall Sprinkler, K8.0, Quick Response (TFP270)
A link type concealed sidewall sprinkler with a flat cover plate for light hazard rooms such as hotel rooms, dormitories, offices and hospitals, with QREC ratings up to 16 ft by 24 ft and 18 ft by 22 ft.
- Flat cover plate sits close to the wall and discourages hanging objects on the sprinkler
- Cover plates in a range of colours, ordered separately, with 1/4 in. of horizontal adjustment
- System can be pressure tested before the wall board and paint go on
- 71°C sprinkler with a 59°C cover plate
- Maximum working pressure 175 psi (12.1 bar)
- Tyco lists UL and C-UL listing
Standards and approvals: UL and C-UL Listed
Specifications
Specifications
| Specification | K=8.0 GPM/psi½ (115,2 LPM/bar½) | TY4522 |
|---|---|---|
| Horizontal Adjustment | 1/4 in. (6,4 mm) | |
| Body | Brass | |
| Bridge | Bronze | |
| Button | Bronze | |
| SIN | TY4522 | |
| K-factor | 8.0 K-factor | |
| Response | Quick Response | |
| Discharge Coefficient | K=8.0 GPM/psi½ (115,2 LPM/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Temperature Rating | 160°F (71°C) Sprinkler with 139°F (59°C) Cover Plate | |
| Finishes | See the Ordering Procedure section |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
