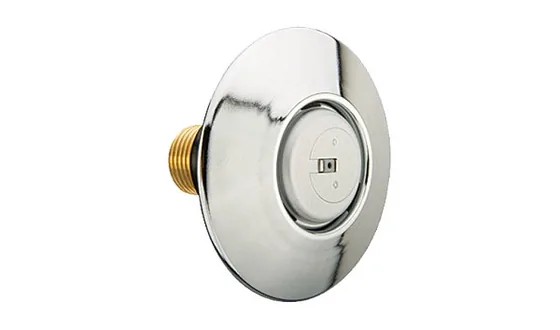

Supplier for TycoQuick response, tamper resistant pendent and horizontal sidewall sprinklers for correctional, detention and mental health care facilities and other commercial buildings, in standard or extended coverage versions.
Standards and approvals: UL and C-UL Listed
| Specification | K=5.6 GPM/psi½ (80,6 LPM/bar½) | TY3281 | TY3282 | TY3381 | TY3382 |
|---|---|---|---|---|---|
| Response Rating | Coverage Area ft x ft (m x m) | ||||
| Body | Brass | ||||
| Deflector Assembly | Bronze | ||||
| SIN | TY3281 | TY3282 | TY3381 | TY3382 | |
| Inlet Thread Connection | 1/2 in. NPT | 1/2 in. NPT | 1/2 in. NPT | 1/2 in. NPT | |
| Response | Quick Response | Quick Response | Quick Response | Quick Response | |
| Discharge Coefficient | K=5.6 GPM/psi½ (80,6 LPM/bar½) | K=5.6 GPM/psi½ (80,6 LPM/bar½) | K=5.6 GPM/psi½ (80,6 LPM/bar½) | K=5.6 GPM/psi½ (80,6 LPM/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | |
| Temperature Rating | 165°F (74°C) | 165°F (74°C) | 165°F (74°C) | 165°F (74°C) | |
| Finish | Sprinkler: White or Grey Escutcheon: White, Grey, Chrome Coated (Carbon Steel only), or Electropolished* (Stainless Steel only) * Chrome-coated appearance | Sprinkler: White or Grey Escutcheon: White, Grey, Chrome Coated (Carbon Steel only), or Electropolished* (Stainless Steel only) * Chrome-coated appearance | Sprinkler: White or Grey Escutcheon: White, Grey, Chrome Coated (Carbon Steel only), or Electropolished* (Stainless Steel only) * Chrome-coated appearance | Sprinkler: White or Grey Escutcheon: White, Grey, Chrome Coated (Carbon Steel only), or Electropolished* (Stainless Steel only) * Chrome-coated appearance |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
