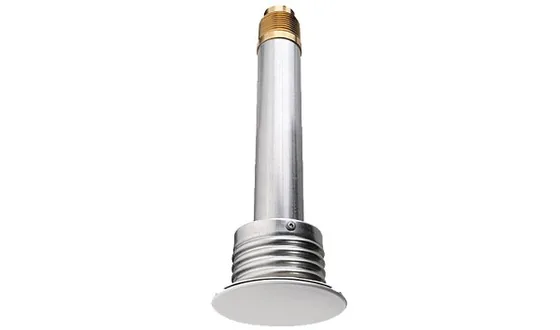

Supplier for TycoA dry-type concealed pendent with a flat cover plate, typically used as a drop from an unheated attic into rooms where looks matter, such as nursing homes, restaurants and schools.
Standards and approvals: UL and C-UL Listed
Sizes: 3 mm Bulb, 5 mm Bulb
| Specification | 3 mm Bulb | 5 mm Bulb | K=5.6 gpm/psi1/2 (80,6 Lpm/bar1/2) |
|---|---|---|---|
| SIN | TY3535 | TY3555 | |
| SIN entry as printed | 3 mm Bulb | 5 mm Bulb | |
| Inlet Thread Connections | 1 in. NPT (Standard Order) ISO 7-R1 | 1 in. NPT (Standard Order) ISO 7-R1 | |
| Discharge Coefficient | K=5.6 gpm/psi1/2 (80,6 Lpm/bar1/2) | K=5.6 gpm/psi1/2 (80,6 Lpm/bar1/2) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | |
| Temperature Ratings | 155°F (68°C) Sprinkler with 139°F (59°C) Cover Plate 200°F (93°C) Sprinkler with 165°F (74°C) Cover Plate | 155°F (68°C) Sprinkler with 139°F (59°C) Cover Plate 200°F (93°C) Sprinkler with 165°F (74°C) Cover Plate | |
| Finishes | See Ordering Procedure section | See Ordering Procedure section | |
| Adjustment | 1/2 in. (12,7 mm) | ||
| Inlet | Copper | ||
| Plug | Copper | ||
| Yoke | Stainless Steel | ||
| Casing | Galvanized Carbon Steel | ||
| Insert | Bronze | ||
| Bulb Seat | Stainless Steel | ||
| Bulb | Glass | ||
| Deflector | Bronze | ||
| Frame | Bronze | ||
| Guide Tube | Stainless Steel | ||
| Water Tube | Stainless Steel | ||
| Spring | Stainless Steel Gasketed Spring | ||
| Plate Seal | Beryllium Nickel w/TEFLON | ||
| Support Cup | Chrome Plated Steel | ||
| Guide Pins | Stainless Steel | ||
| Compression Screw | Brass | ||
| Cover Plate | Brass | ||
| Retainer | Brass | ||
| Ejection Spring | Stainless Steel |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
