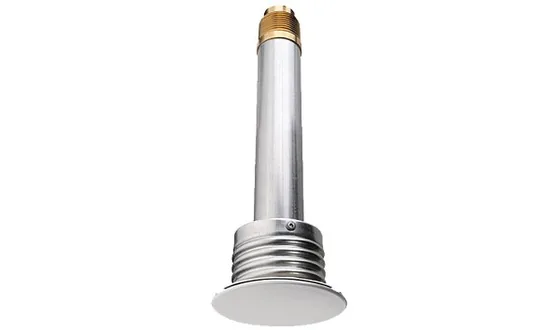

Supplier for TycoA 3 mm bulb dry-type concealed pendent with a quick response extended coverage (QREC) rating up to 18 ft by 18 ft, for drops from an unheated attic into rooms such as nursing homes, restaurants and schools.
Standards and approvals: UL and C-UL Listed
| Specification | K=5.6 gpm/psi½ (80,6 Lpm/bar½) | TY3539 |
|---|---|---|
| Adjustment | 1/2 in. (12,7 mm) | |
| Inlet | Copper | |
| Plug | Copper | |
| Yoke | Stainless Steel | |
| Casing | Galvanized Carbon Steel | |
| Insert | Bronze | |
| Bulb Seat | Stainless Steel | |
| Bulb | Glass | |
| Deflector | Bronze | |
| Frame | Bronze | |
| Guide Tube | Stainless Steel | |
| Water Tube | Stainless Steel | |
| Spring | Stainless Steel Gasketed Spring | |
| Plate Seal | Beryllium Nickel w/TEFLON | |
| Support Cup | Chrome Plated Steel | |
| Guide Pins | Stainless Steel | |
| Compression Screw | Brass | |
| Cover Plate | Brass | |
| Retainer | Brass | |
| Ejection Spring | Stainless Steel | |
| SIN | TY3539 | |
| Inlet Thread Connections | 1 in. NPT (Standard Order) ISO 7-R1 | |
| Response | Quick Response | |
| Discharge Coefficient | K=5.6 gpm/psi½ (80,6 Lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | |
| Temperature Ratings | 155°F (68°C) Sprinkler with 139°F (59°C) Cover Plate 200°F (93°C) Sprinkler with 165°F (74°C) Cover Plate | |
| Finishes | See the Ordering Procedure section |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
