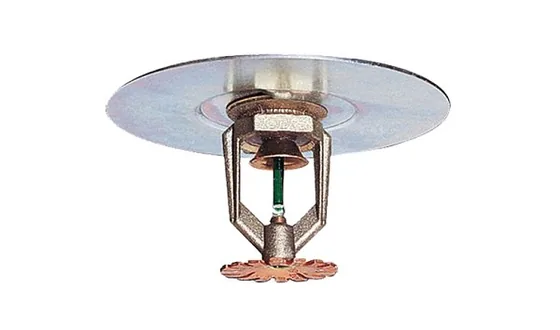

Supplier for Tyco3 mm glass bulb quick response intermediate level sprinklers for rack storage and open gridded catwalks, shielded from the spray of higher sprinklers.
Standards and approvals: UL and C-UL Listed, FM Approved
| Specification | Upright 5.6K, 1/2 in. NPT | Pendent 5.6K, 1/2 in. NPT | Upright 8.0K, 3/4 in. NPT | Pendent 8.0K, 3/4 in. NPT | Details |
|---|---|---|---|---|---|
| SIN | TY3133 | TY3231 | TY4133 | TY4231 | |
| SIN entry as printed | Upright 5.6K, 1/2 in. NPT | Pendent 5.6K, 1/2 in. NPT | Upright 8.0K, 3/4 in. NPT | Pendent 8.0K, 3/4 in. NPT | |
| Orientation | Upright | Pendent | Upright | Pendent | |
| K-factor | 5.6K | 5.6K | 8.0K | 8.0K | |
| Thread | 1/2 in. NPT | 1/2 in. NPT | 3/4 in. NPT | 3/4 in. NPT | |
| Response | Quick Response | Quick Response | Quick Response | Quick Response | |
| Discharge Coefficients | K=5.6 gpm/psi½ (80,6 Lpm/bar½) • | K=5.6 gpm/psi½ (80,6 Lpm/bar½) • | K=8.0 gpm/psi½ (115,2 Lpm/bar½) | K=8.0 gpm/psi½ (115,2 Lpm/bar½) | |
| Maximum Working Pressure | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | 175 psi (12,1 bar) | |
| Temperature Ratings | • 135°F (57°C) • 155°F (68°C) • 175°F (79°C) • 200°F (93°C) • 286°F (141°C) | • 135°F (57°C) • 155°F (68°C) • 175°F (79°C) • 200°F (93°C) • 286°F (141°C) | • 135°F (57°C) • 155°F (68°C) • 175°F (79°C) • 200°F (93°C) • 286°F (141°C) | • 135°F (57°C) • 155°F (68°C) • 175°F (79°C) • 200°F (93°C) • 286°F (141°C) | |
| Finishes | Natural Brass | Natural Brass | Natural Brass | Natural Brass | |
| Frame | Bronze | ||||
| Button | Brass/Copper |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
