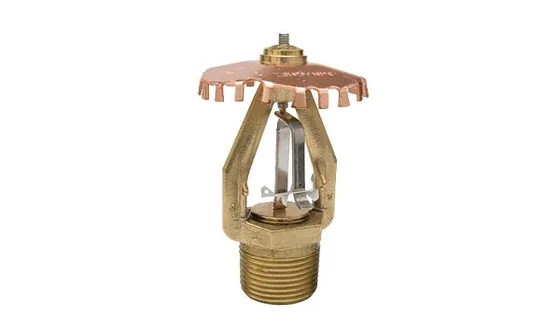

Supplier for TycoA K25.2 standard response extended coverage upright sprinkler for storage and non-storage areas, listed as a CMDA sprinkler to NFPA 13 and usable as a CMSA sprinkler.
Standards and approvals: UL and C-UL Listed
| Specification | Details | Details | TY9128 |
|---|---|---|---|
| Additional Technical Data | See Table A | ||
| Frame | Brass | ||
| Deflector | Copper | ||
| Compression Screw | Stainless Steel | ||
| Hook | MONEL | ||
| Strut | MONEL | ||
| Link Assembly | Solder, Nickel | ||
| Button | Brass | ||
| SIN | TY9128 | ||
| Finish | Natural Brass |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
Sizes: 25.2 K-factor
A K25.2 ESFR pendent for ceiling-only protection of high-piled storage, working at lower end head pressures than K14.0 and K16.8 ESFR sprinklers.
Sizes: 16.8 K-factor
A K16.8 ESFR pendent for ceiling-only protection of high-piled storage, working at lower end head pressures than K14.0 ESFR sprinklers.
Sizes: 16.8 K-factor
An upright K16.8 ESFR sprinkler, giving designers an upright option to pendent ESFR for ceiling-only protection of high-piled storage.
Sizes: 16.8 K-factor
A K16.8 ESFR pendent for ceiling-only protection of high-piled storage, listed by UL and C-UL and approved by FM and VdS.
Sizes: 14.0 K-factor
A K14.0 suppression mode ESFR pendent for high-piled storage, which Tyco notes can remove the need for in-rack sprinklers.
Sizes: 14.0 K-factor
A K14.0 ESFR pendent for protecting high-piled storage, offered in 68°C and 93°C ratings.
Heat activated sprinkler heads for automatic sprinkler systems, ISI marked to IS 15105 and offered in pendant, upright and sidewall types. Each head opens at its fusible bulb rating, 68°C as standard, with other temperatures available.
A flexible hose connector that links the rigid sprinkler branch pipe above a false ceiling to the sprinkler head below it. It takes up building movement, ceiling deflection and installation misalignment, so the head can be positioned without cutting or re-routing pipe.
A brass glass bulb sprinkler hidden behind a white or chrome cover plate, for concealed pipe systems where a smooth ceiling is wanted. It comes in standard and quick response and is UL Listed.
A conventional glass bulb spray sprinkler for pendent, recessed pendent or upright mounting, in standard or quick response. NFPA allows old style sprinklers where special construction features need a unique water distribution.
Kartar's forged brass sprinkler head with a 15 mm screwed connection, a 175 psi rating and a 68°C temperature rating, in pendent, upright and sidewall types. The K908.I series is ISI marked; the K908 series is listed without the mark.
A rosette plate that covers the ceiling opening around a sprinkler head. Kartar lists a fixed plate (K908 FR) and an adjustable plate (K908 AR).
